C - 8
CS4070 Scanner Product Reference Guide
7.
With the CS4070, scan the PIN using
the
PIN Entry Bar Codes on page C-9
and scan
Enter
. The scanner
beeps to
indicate it has pa
ired with the Lenovo ThinkP
ad T
ablet, and the Lenovo ThinkPad T
ablet displays
Connected below the CS4070 device name.

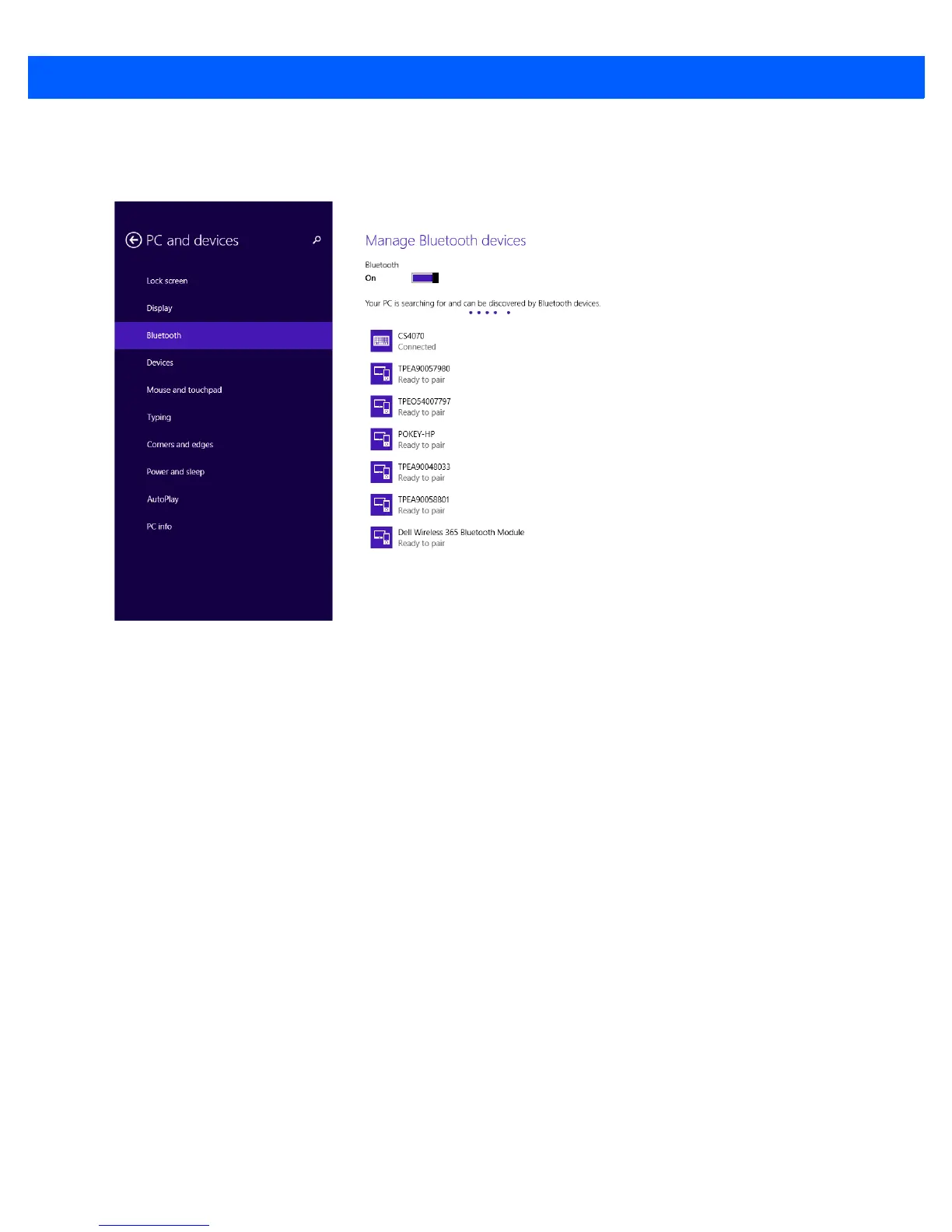

Figure C-10
CS4070 Connecte
d
185
187
