Symbologies
4 - 75
Netherlands KIX Code
Parameter # 326
T
o enable or disable Nethe
r
lands KIX Code, scan the appropriate bar code be
low
.
USPS 4CB/One Code/Intelligent Mail
Parameter # 592
T
o enable or disable USPS 4CB/One Code/Intelligent Mail, scan t
he appropriate bar code below
.

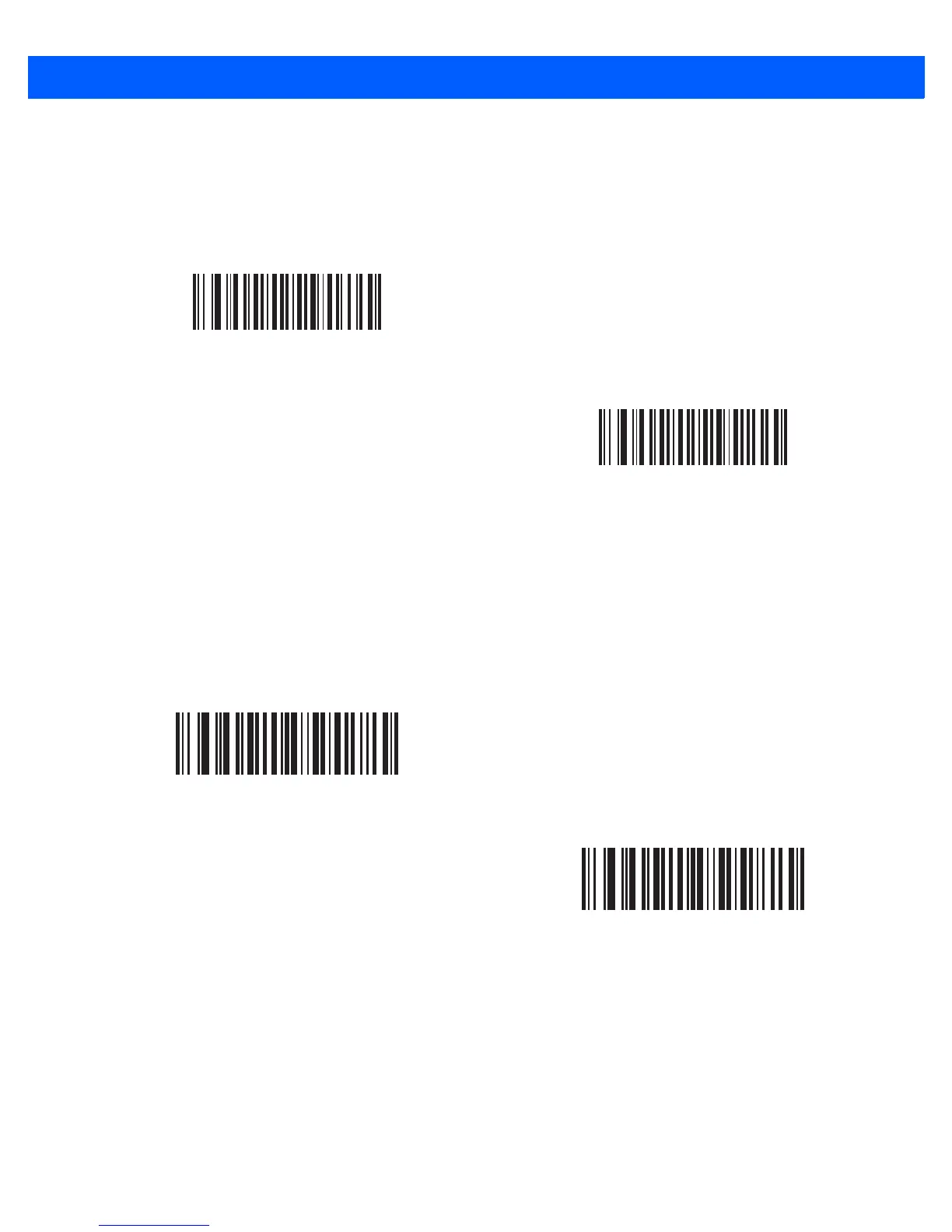

Enable Netherlands KIX Code
(1)
*
Disable Netherlands KIX Code
(0)
Enable USPS 4CB/One C
ode/Intelligent Mail
(1)
*
Disable USPS 4CB/One Code/Intelligent Mail
(0)
