8 - 6 MX101 PRODUCT REFERENCE GUIDE
11. Slide the CSS tower cover back into place. Ensure the cable service loop folds up into the blank space in
the CSS tower cover, on the opposite side of the scan module. Snaps should click together. When the
tower cover is replaced, the module locks into the grommet compression ribs on the MP6000.

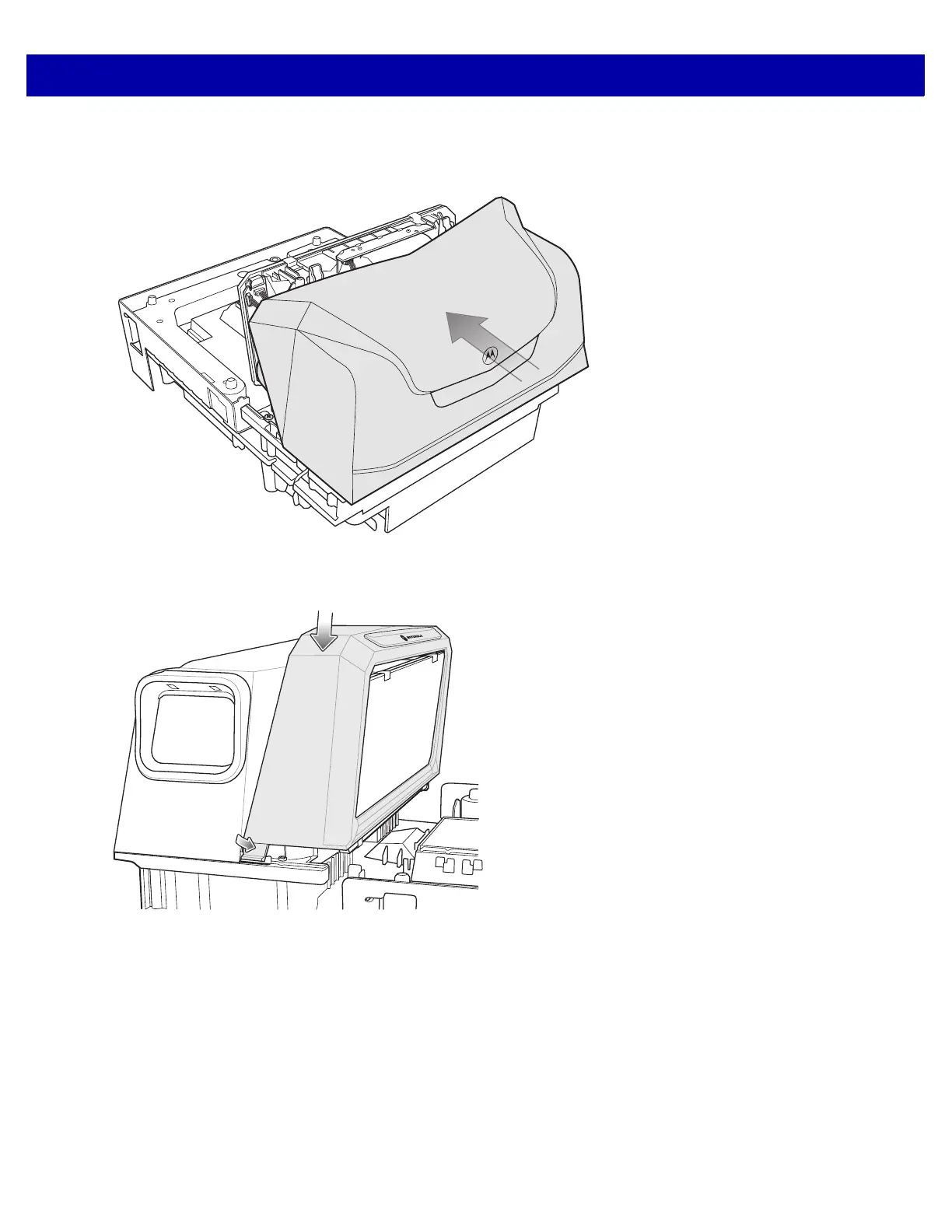

Figure 8-10
Replacing the Tower Cover
12. Replace MP6000 tower bezel. Snap down into place.
Figure 8-11
Replacing the MP6000 Tower Bezel
