Section 2, Installation and Setup
Chemgard Infrared Gas Monitor
NOTE: The Rack Mount version has not been tested by UL for performance
and does not carry any approvals certification

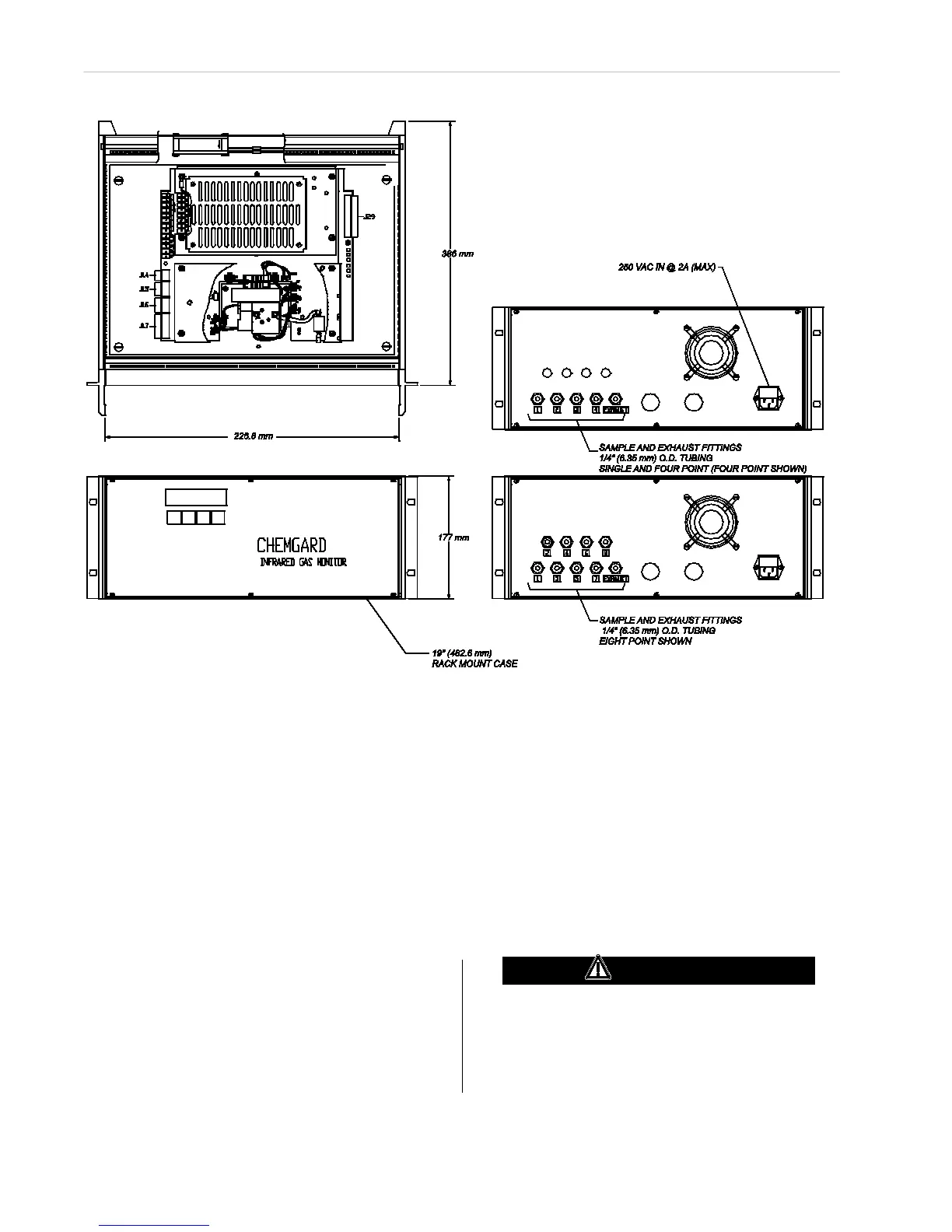

Figure 2-3. Rack Mount Unit Mounting Dimensions
4. Install all tubing ends to the inlet fittings of
the unit. Mark the location identity of each
individual tubing on the tubing or on the
inside of the instrument itself (FIGURE 2-2).
5. Connect the exhaust fitting to tubing which is
routed to an area where gases may be
safely dispersed.
CAUTION
Ensure that each and every sample tubing
has an end-of-line filter on it; otherwise,
damage to the internal components may
result.
