8 FL5000 Multi-Spectrum Flame Detector US
2 Quick Start Instructions
2. Mounting
a. Choose a location for mounting, ensuring that all proper requirements for safety and use are met. See 5.4
Detector Mounting and Installation for a list of mounting location concerns/warnings.
b. Assemble the bracket by connecting the center clamp bit to the bracket with the included screw, washer and
nut set.
c. Attach the Detector as shown in Figure 2 below.

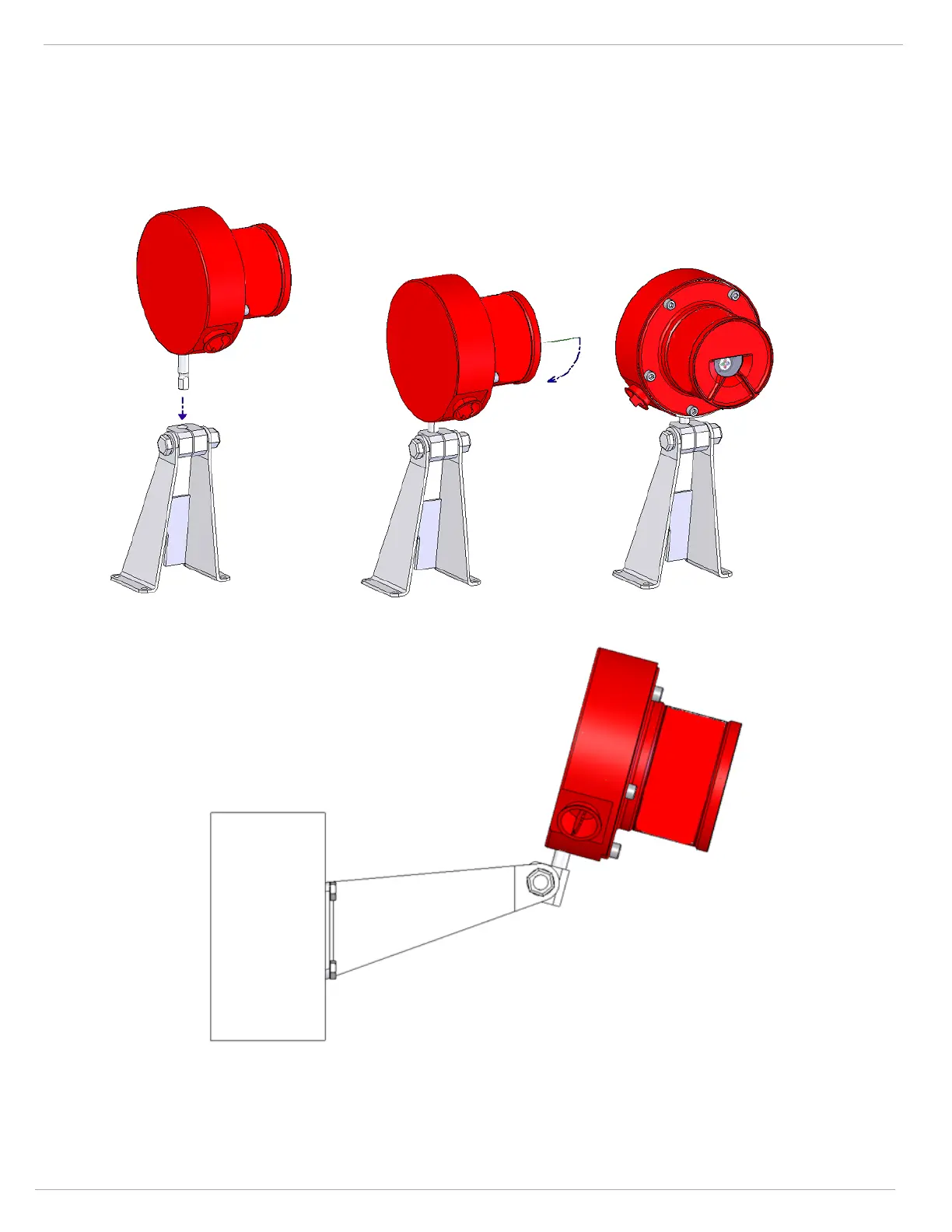

Figure 2 Mounting Instruction
Figure 3 Wall Mounting Assembly
