• Route power, ground, and (where applicable) signal wiring
through the electrical entry holes in the case (FIGURE 1-6).
• Separate the power wiring from any signal wiring.
• The Toxgard II unit operates on an AC power source of 120 or
220 VAC (no selection switch is necessary).
"
CAUTION
If unsure of the power supply voltage available, contact your plant
engineer or safety officer. Damage may occur to the instrument if
the wrong power supply voltage is applied to the instrument.

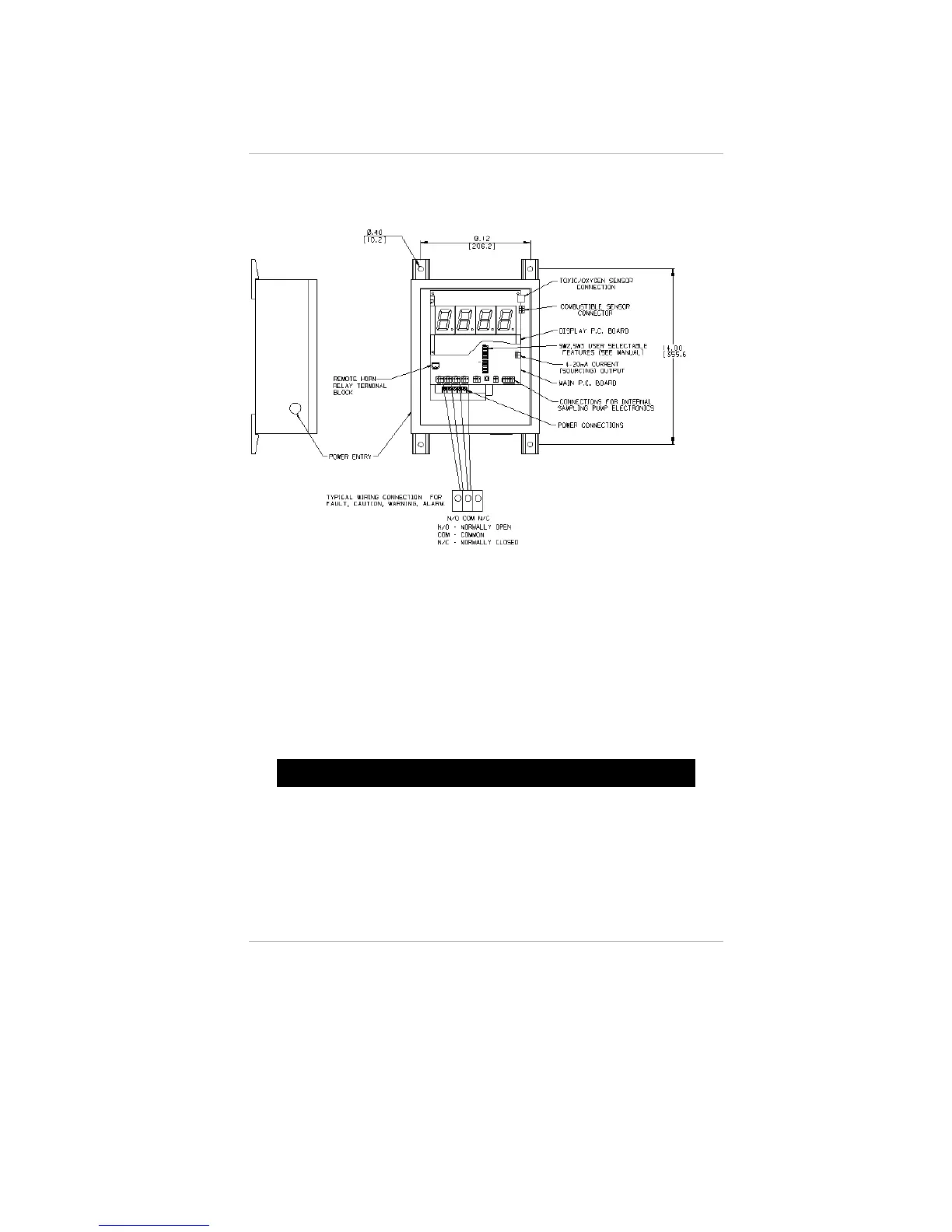

Figure 1-6.
Toxgard II Cable Entries
Chapter 1, Set-up
1-11
