2. Route the cable from the Toxgard II Monitor through the
conduit opening and wire it to the terminal block in the
bottom of the sensor.
NOTE: Separate the power and ground wiring from any
signal wiring.
3. Verify the identity of each conductor of the cable and
connect the wire to the terminal block so that position 1 in
the sensor is wired to position 1 on the Toxgard II Monitor
TB2. Similarly, sensor positions 2 and 3 connect to
Toxgard II positions 2 and 3.
If shielded wire is used:
• Cut the shield wire short.
• Do not connect the shield at the remote sensor.

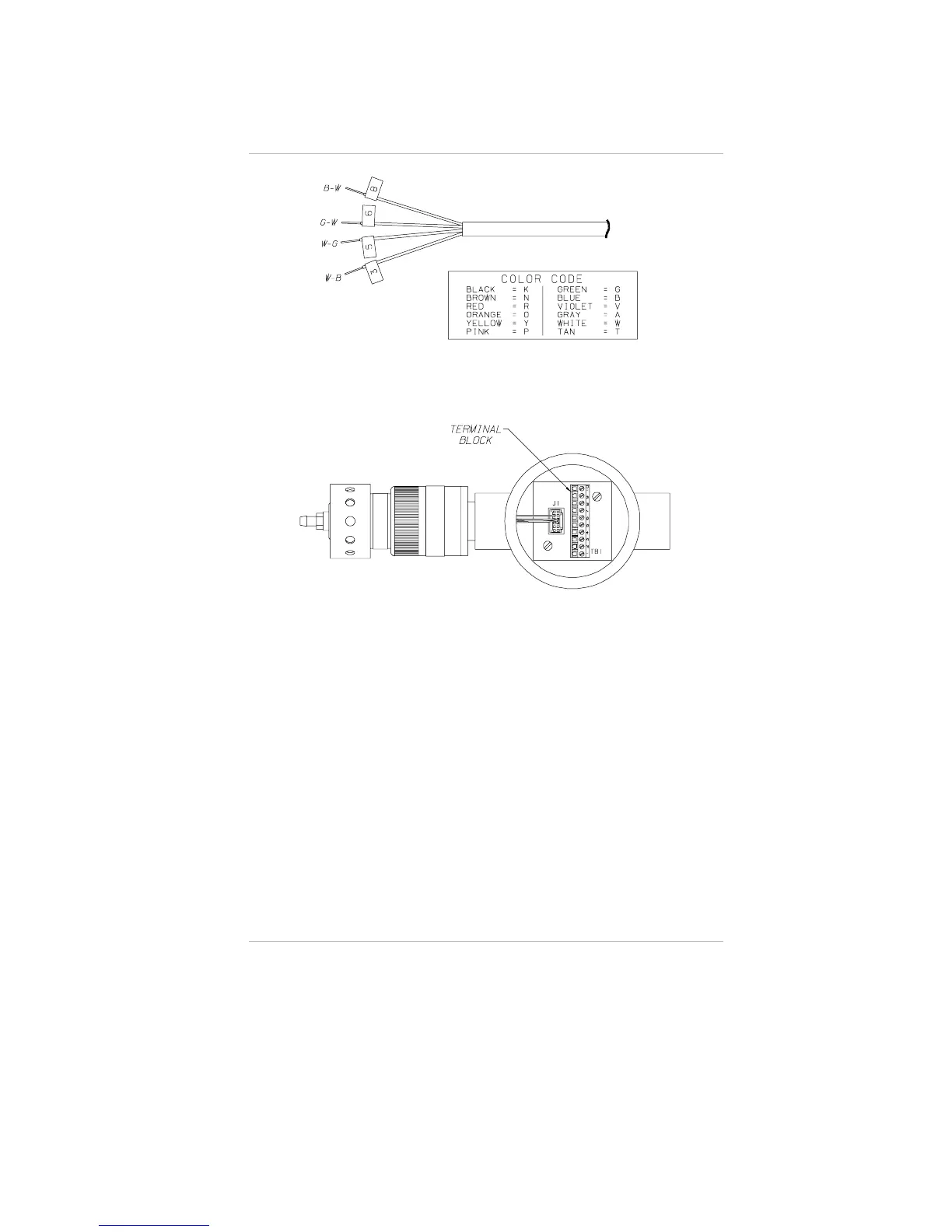

Figure 1-9.
Oxygen Remote Sensor Cable
Figure 1-10.
Oxygen and Toxic Remote Sensor
Chapter 1, Set-up
1-19
