MSA Toxgard II - Page 52

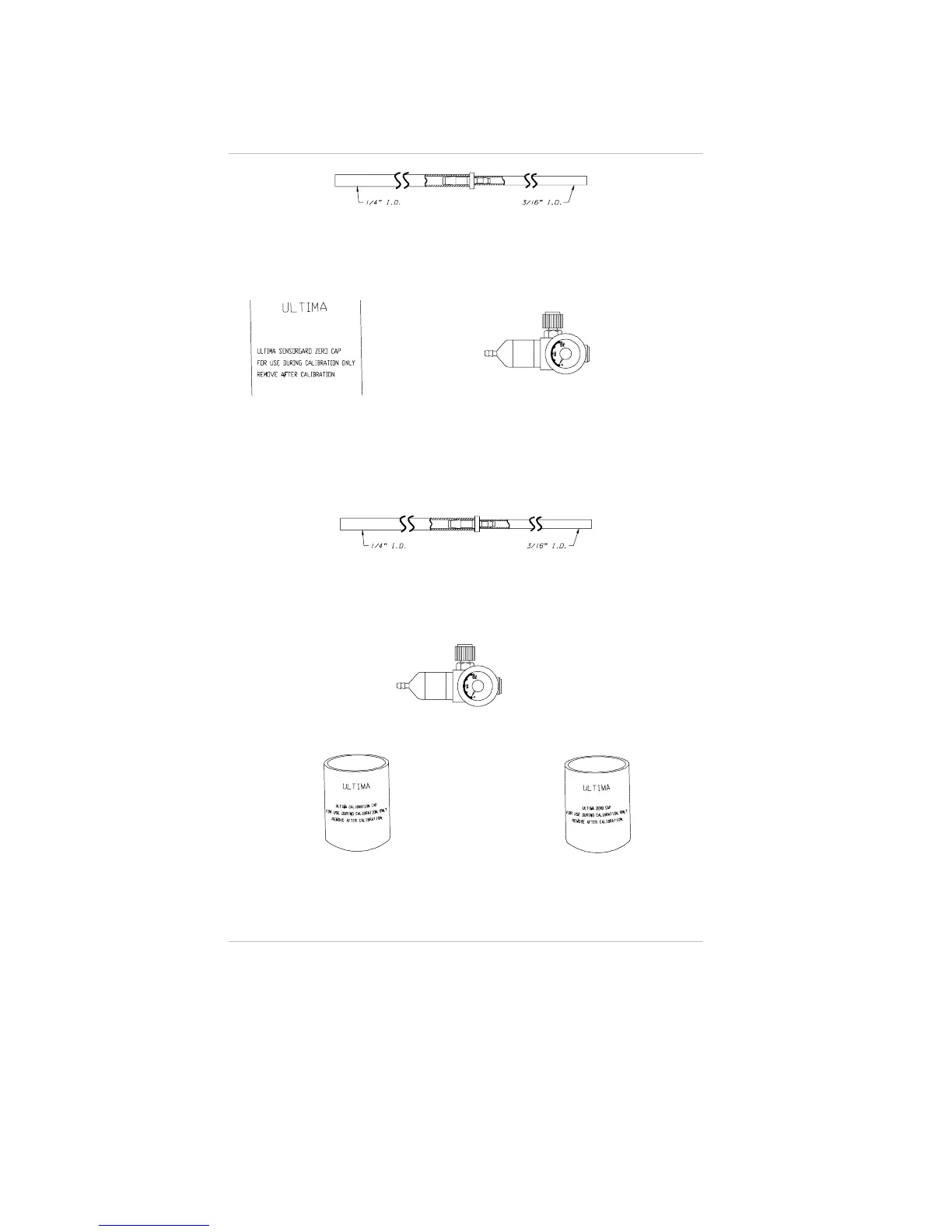

Figure 3-1. Calibration Kit 40 Contents
(Your Kit may also include one or two gas cylinders)
Figure 3-2. Calibration Kit 41 Contents
(Your Kit may also include one or two gas cylinders)
Item 1 - Tubing (P/N 711112)
- 3/16" ID side connects to Item 3;
- 1/4" ID side connects to sensor
Item 2 - Zero Cap (P/N 710535)
Item 3 - 1.5 LPM Flow Controller (P/N 478358)
Item 1 - Tubing (P/N 711112)
- 3/16" side connects to Item 2;
- 1/4" side connects to sensor
Item 2 - .25 LPM Flow Controller (P/N 478359)
Item 3 - Calibration Cap (P/N 710411)
Item 4 - Zero Cap (P/N 813774)
Chapter 3, Calibration
3-4
