DESCRIPTION MSA

8 ULTIMA

3 TM

2. Description

The ULTIMA

3 TM

instruments are housed in a flameproof enclosure and are

calibrated at the factory ready for installation.

The instrument components vary somewhat depending on the particular model.

All models are provided with either ¾“ NPT or M25 x 1.5 cable entries.

2.1. General View Gas Monitor

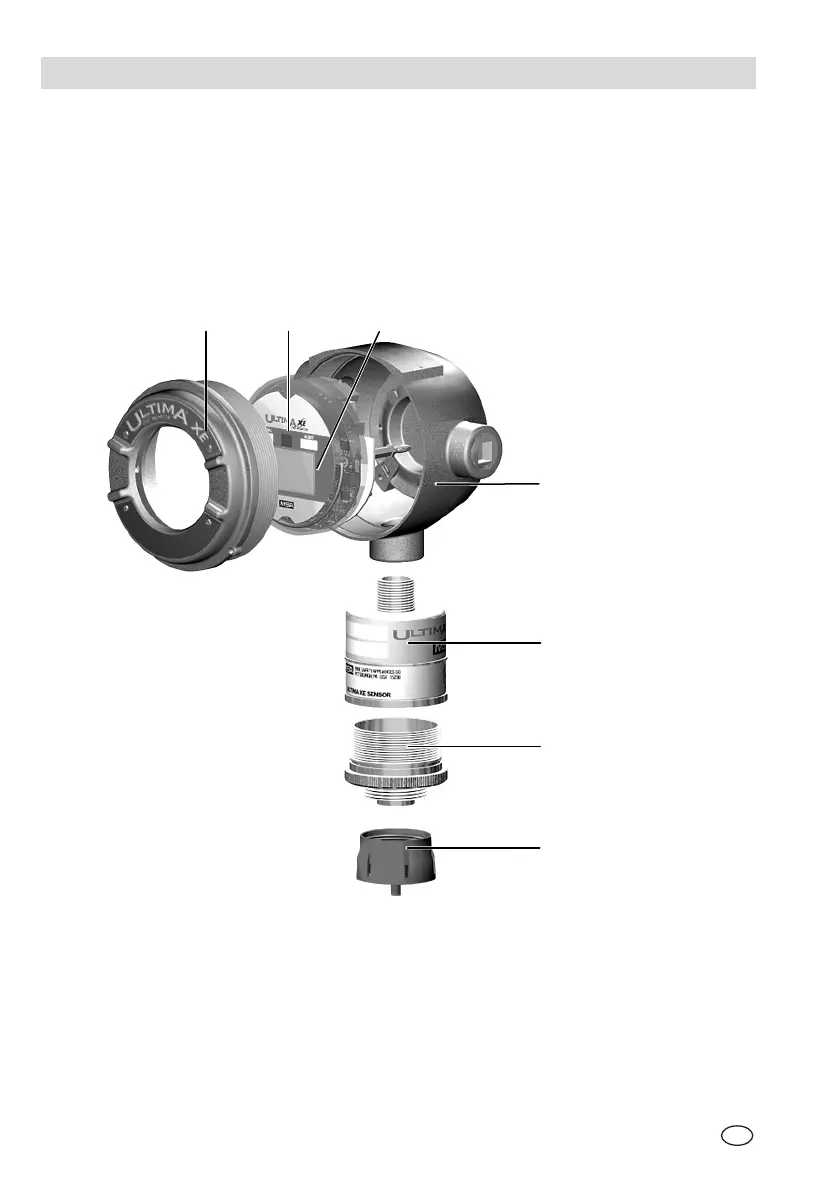

Fig. 1 ULTIMA – Gas Monitor (ULTIMA XE shown here)

1 Housing cover with viewing window

2 Sensor electronics with optional LEDs and display

3 Display

4 Housing ( flameproof enclosure)

5 Sensor housing

6 Sensor module

7 Sensor Guard

2 1

Other manuals for MSA Ultima X

Questions and Answers:

Need help?

Do you have a question about the MSA Ultima X and is the answer not in the manual?

General

Ingress Protection	IP66/67
Enclosure	Explosion-proof
Detection Method	Electrochemical, Infrared, Catalytic Bead
Gases Detected	Combustible gases, Toxic gases, Oxygen
Display	LCD
Output	4-20 mA, HART
Housing Material	Stainless steel
Certifications	ATEX, IECEx, UL, CSA, SIL 2
