3.3.2 Installation in a Curved Decline / Incline

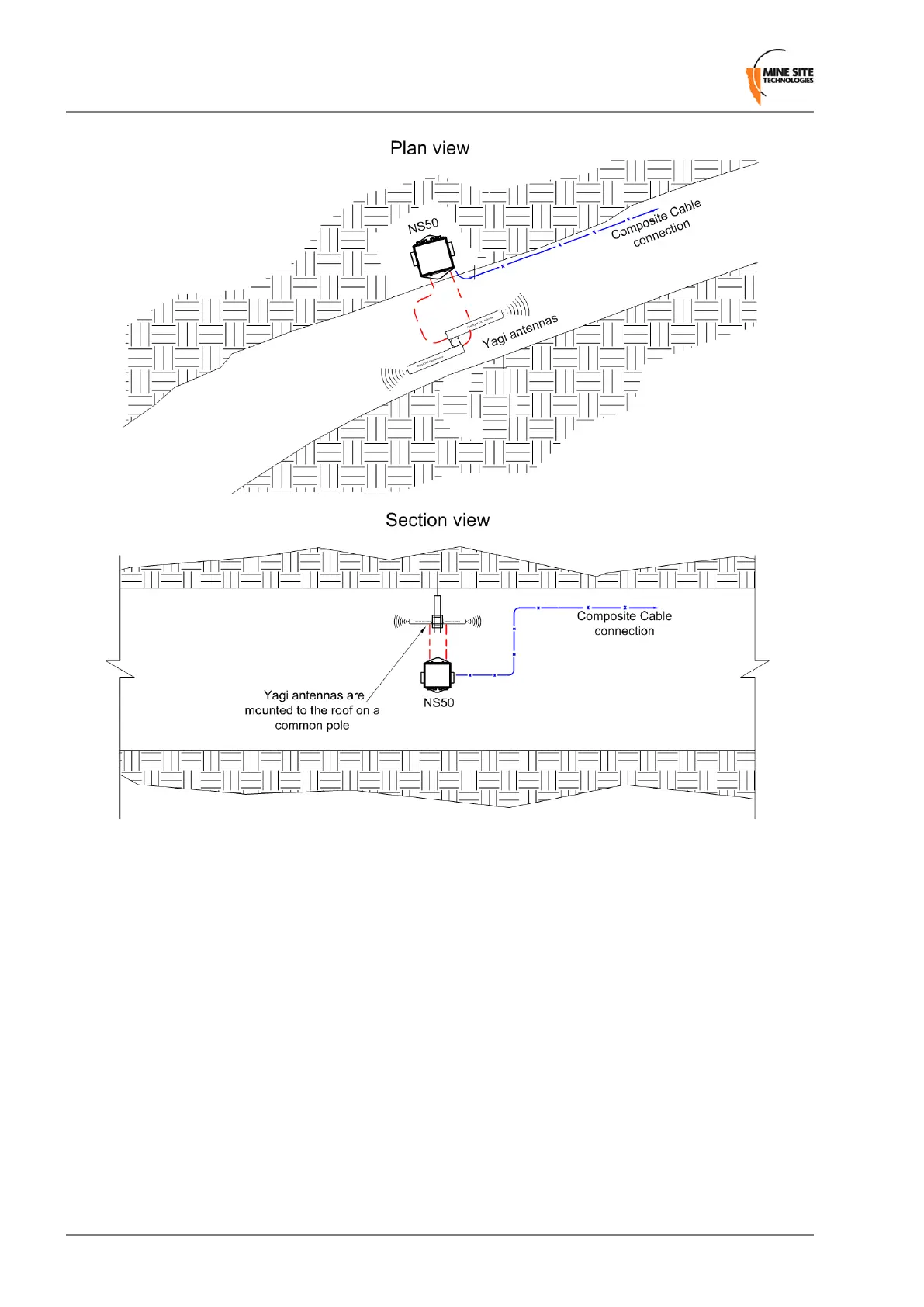

• A Yagi antenna is positioned at the end of the curve for directional wireless coverage.
• The Yagi antenna is clamped to a mounting pole, and is chemically adhered into the mine roof.
• A panel antenna is roof mounted in the middle of the curve providing wide wireless coverage.
• Each antenna is connected to a WAC in the NS50.
• The network switch is cable tied to the rock mesh, connected to the composite cable that provides
power and network connectivity.
• The network switch is also a link for power and network connectivity to devices in the next location.
Revision C28NS50 User Guide
Installation
