5.5.12
Configuring
the
VLAN
Port
Map

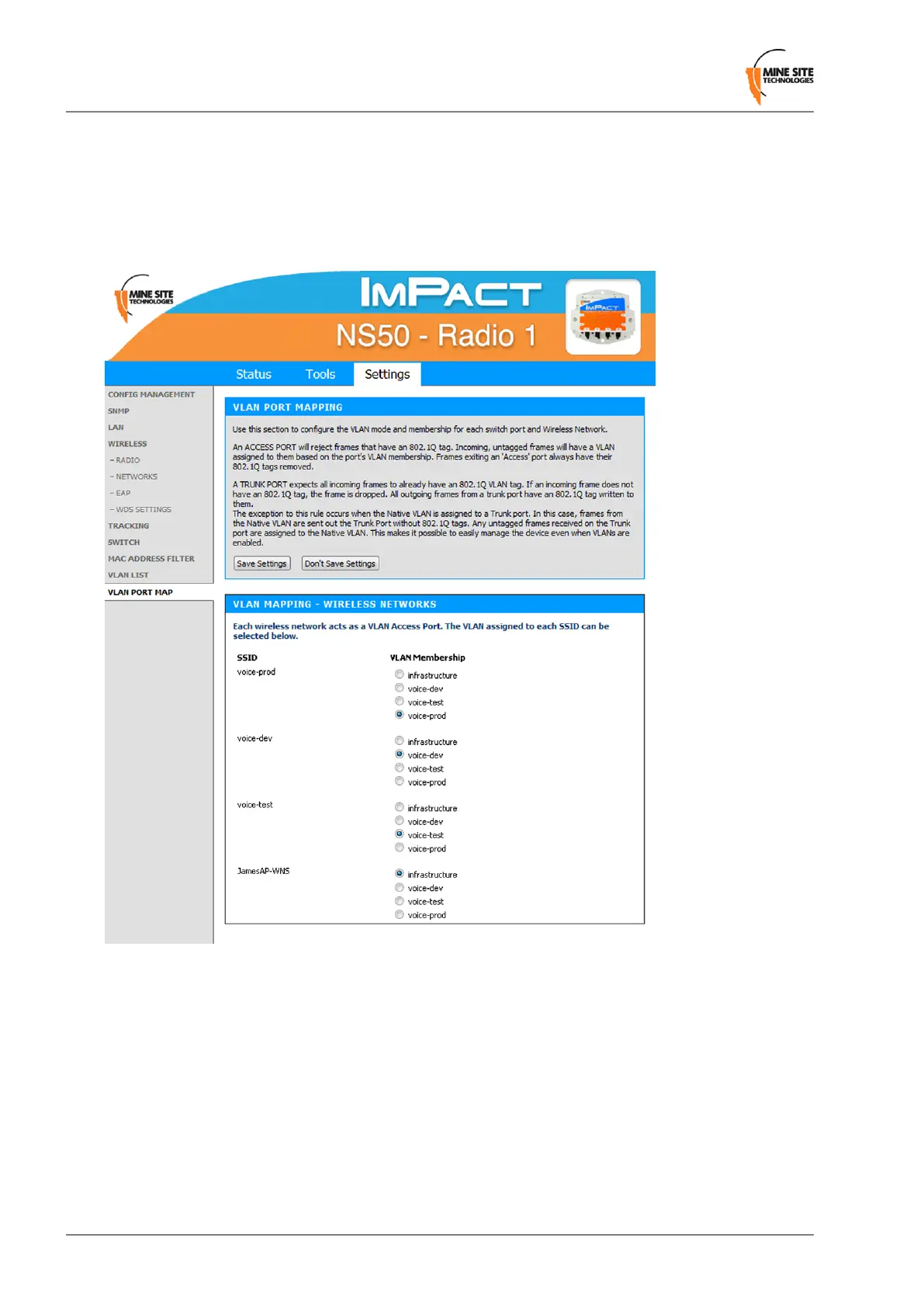

The
VLAN
Port
Map
screen
assigns
the
VLAN(s)
to
each
physical
switch
port,
and
each
wireless
network.
Physical
switch
ports
can
be
assigned
as
Trunk
or
Access
ports.
W
ireless
networks
always
act
as
Access
ports
on
the
selected
VLAN.
Revision
C
82
NS50
User
Guide
Conguration
Using
the
W
eb
Interface
81
83
