MST Impact NS5004 User Guide

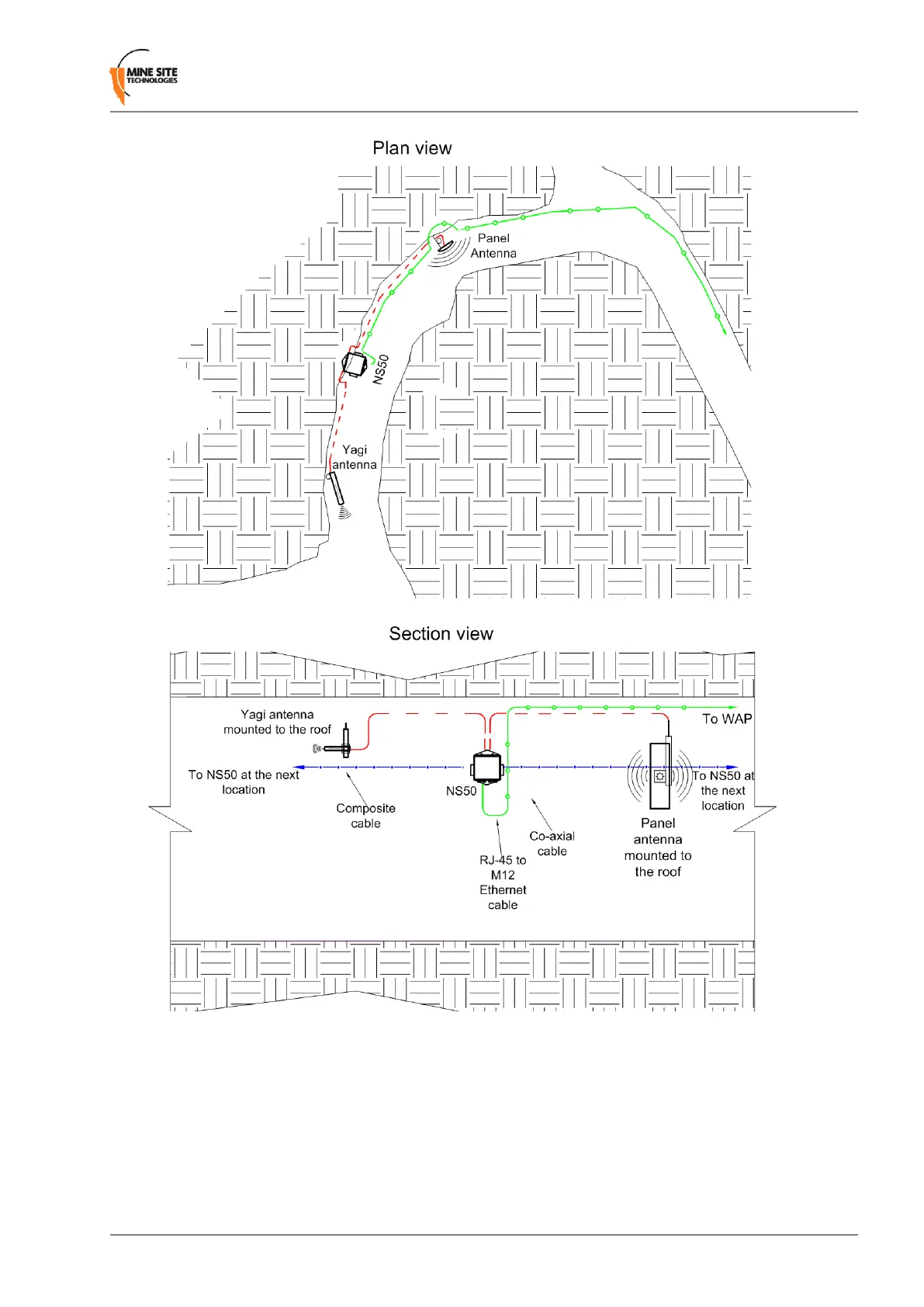

3.3.3 Installation in a Stope
• A panel antenna is clamped to a mounting pole, and is chemically adhered into the mine roof.
• The panel antenna is angled down into the stope to provide wide wireless coverage.
• A Yagi antenna is installed in the roof providing directional coverage down a straight drive.
• Each antenna is connected to a WAC in the NS50. The network switch on a mounting plate is attached
to a rock bolt.
• The composite cable supplies power and network connectivity to the switch.
NS50 User Guide29Revision C
Installation
