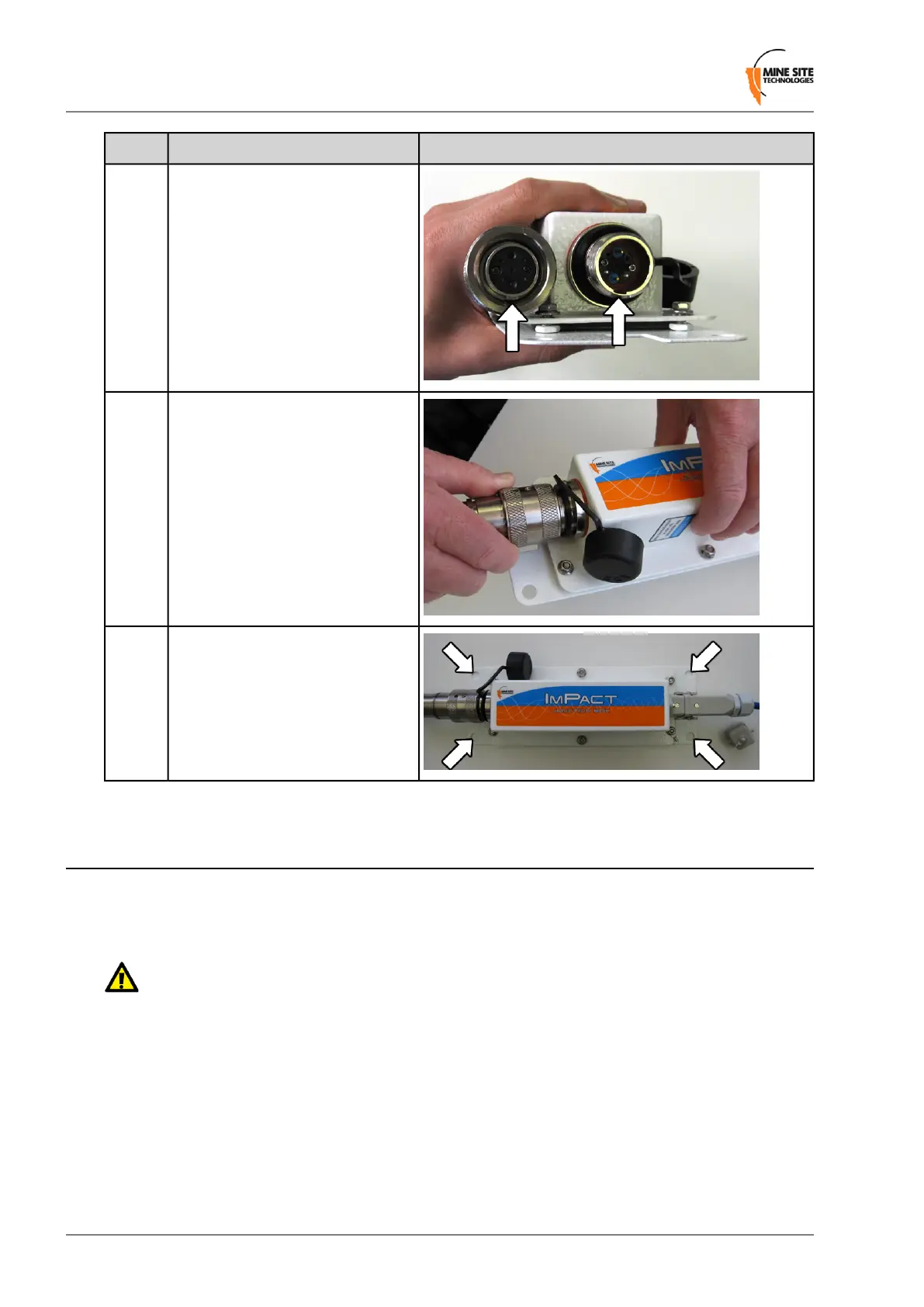

IllustrationProcedureStep
Align the F-LINK connector with
the port.
5
Insert the connector and spin the
connector cover clockwise to secure
the cable to the port.
6
Attach the JB14 to a at surface or
tunnel mesh using the mounting
holes.
7
3.10 Connecting Antennas to the NS50
Antennas can be connected directly to the coaxial (RP-TNC) jacks on the unit or mounted remotely by
using coaxial cables. Coaxial cable length should be kept as short as possible (ideally less than 10m) to
minimise signal loss.
Important: All cable and antenna connections must be electrically insulated using self-amalgamating
rubber tape.
The following procedure describes how to connect a coaxial cable to the NS50 and electrically insulate
the connection.
Revision C38NS50 User Guide
Installation
