MST Impact NS5004 User Guide

IllustrationProcedureStep

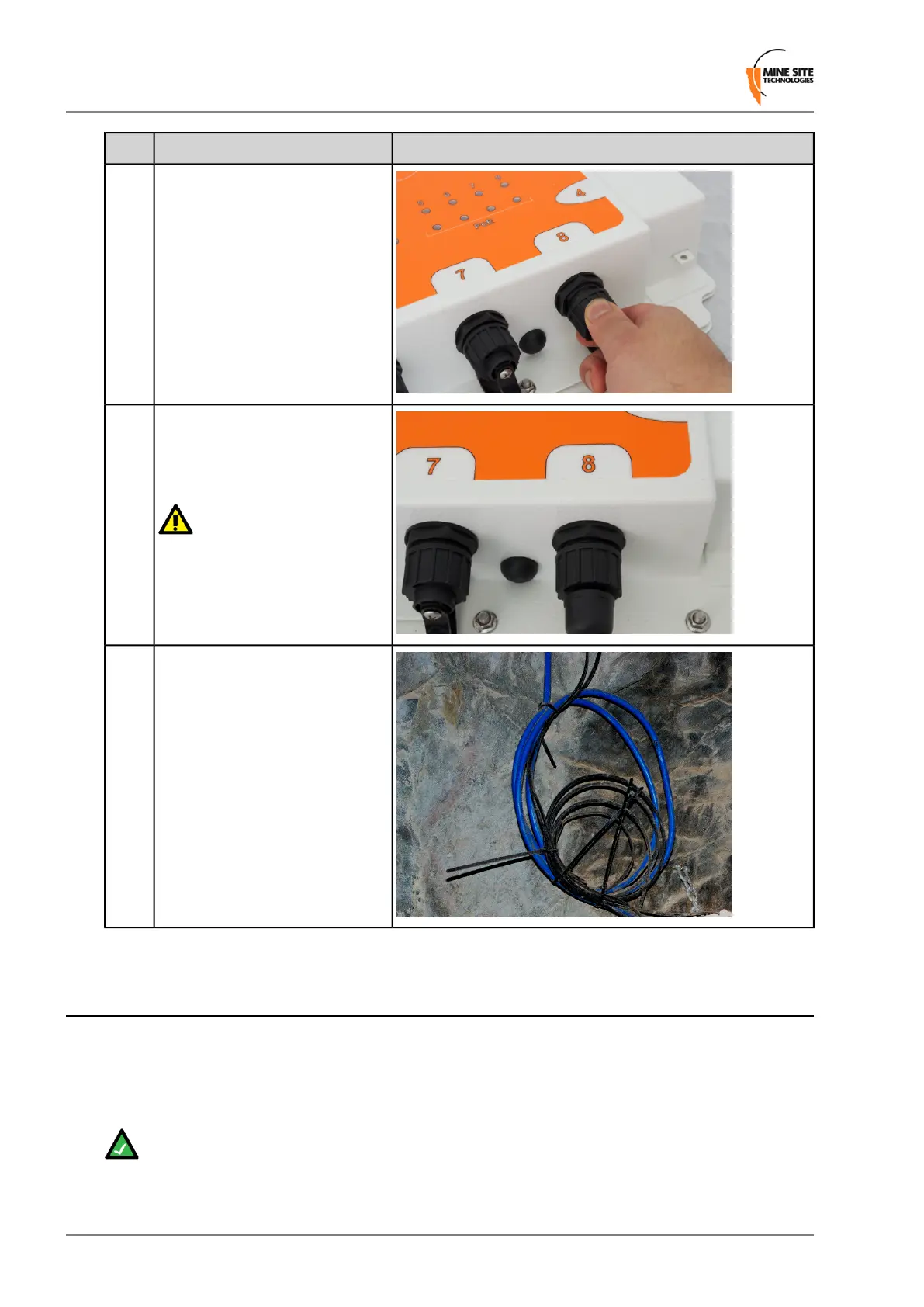

Insert the Ethernet cable (with a
bayonet back-shell) into the
Ethernet port.
2
Align the protective cover on the
cable to the notch in the mating
jack on the NS50, and twist to
lock the connector.
3
Important: Check that all
unused Ethernet ports
remain protected with the
supplied covers.
Securely fasten the cable lead
against the wall/ceiling.
4
3.9 Connecting F-LINK Terminated Composite Cable to the NS50
Connecting NS50 units to networks with existing WNS units requires a JB14 Junction Box, supplied by
MST, to act as an adaptor between the existing F-LINK terminated cable and the revised MST Composite
connector. The JB14 has four 10mm mounting holes and can be bolted to a at surface or cable-tied to
the mesh in a tunnel.
Note: The composite cable must be connected and locked into place before the JB14 is attached
to a surface.
Revision C36NS50 User Guide
Installation
