5.3.5 Viewing Ethernet Switch Information

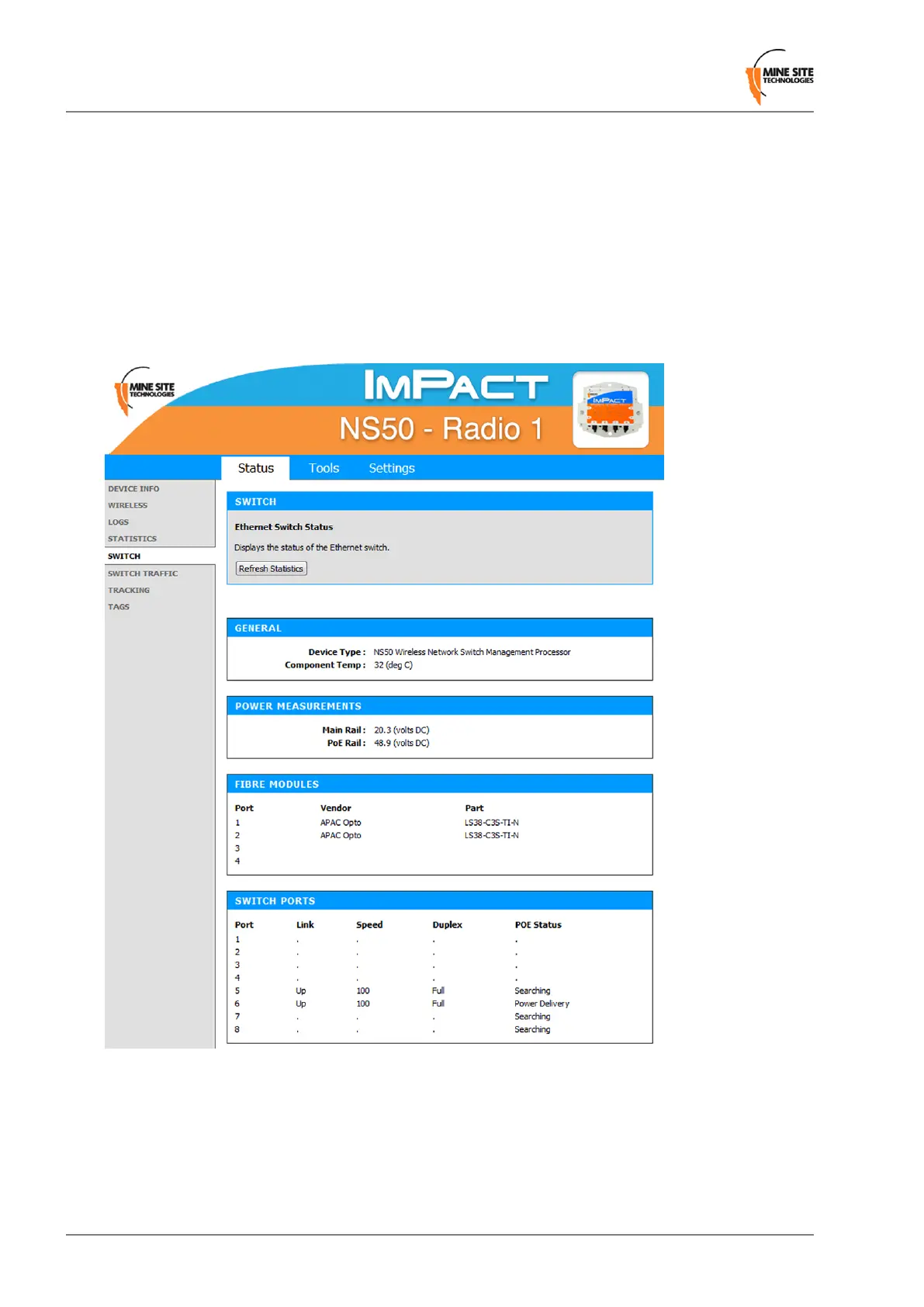

The Switch status screen displays general switch information. Switch information can only be accessed
for the WAC in slot 1 of the Network Switch. It displays the following parameters:
• The temperature inside the switch processor
• The voltage of the supply rail
• The voltage of the PoE rail (This will read as 0 (volts DC) if PoE is disabled)
• The vendor and part number for each of the SFP modules
• The link, speed, duplex and PoE power status for each switch port.
5.3.6 Viewing Switch Traffic
The Switch Trafc screen shows current trafc statistics for each network port.
