MST Impact NS5004 User Guide

Composite Cable LengthPart Number
125mW-CFC-006-T125
175mW-CFC-006-T175
250mW-CFC-006-T250
325mW-CFC-006-T325
Table 2: Fibre-Only Cable
Fibre Cable LengthPart Number
100mW-CFC-007-T100
175mW-CFC-007-T175
325mW-CFC-007-T325
650mW-CFC-007-T650

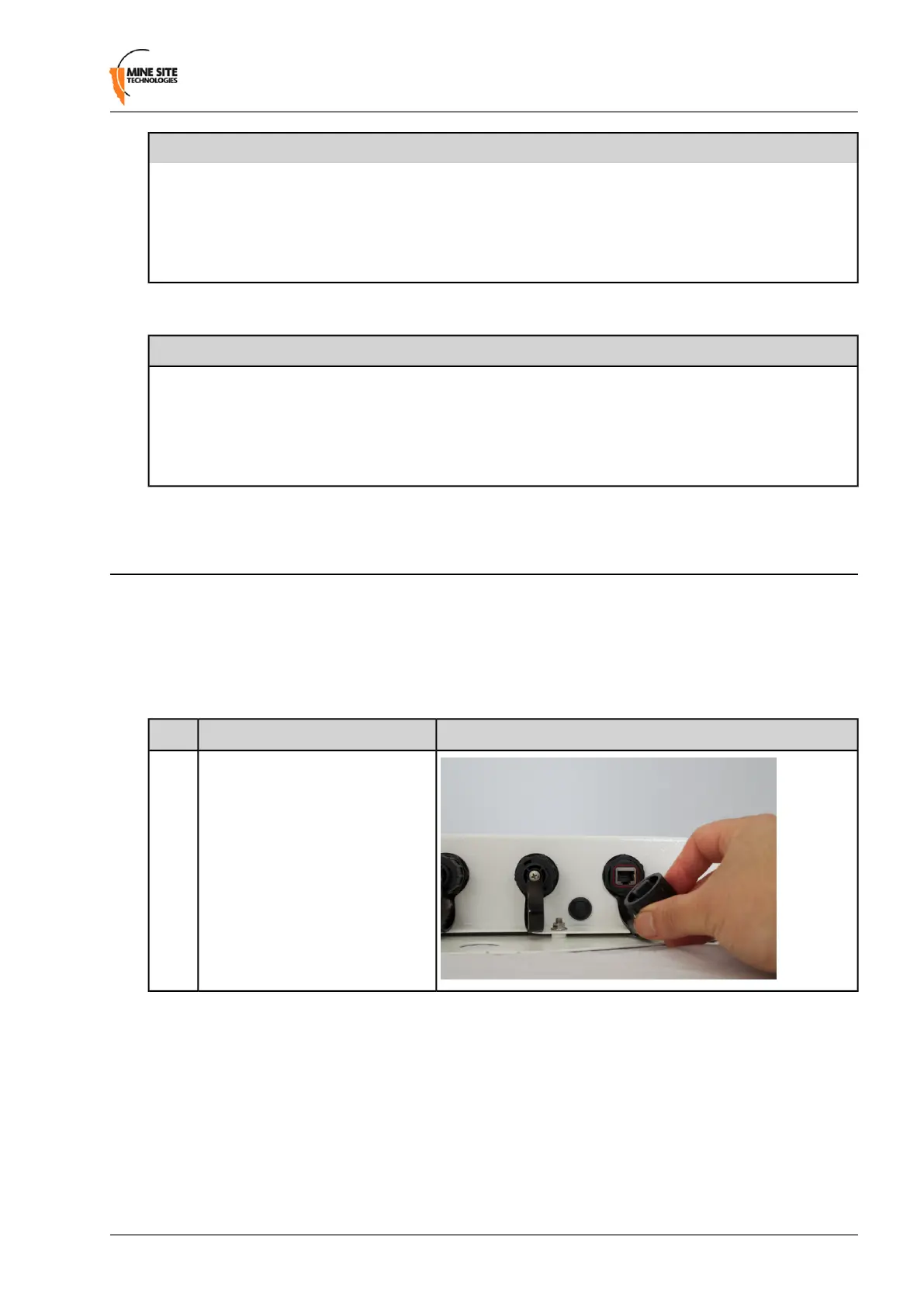

3.8 Connecting Ethernet Cable to the NS50
The external Ethernet ports are located on the underside of the NS50, and are used to connect to Ethernet
devices (such as computers, Ethernet controlled PLCs, hard-wired Ethernet Phones and IP video devices).
An Ethernet cable with a RJ45 connector is used to connect PoE devices. Ethernet cables are required to
meet specications for use in a mining environment in Ethernet Cable Specications on page 97.
The following procedure demonstrates how to connect an Ethernet cable to the NS50.
IllustrationProcedureStep
Unscrew the protective cover on
the Ethernet port.
1
NS50 User Guide35Revision C
Installation
