FunctionDescriptionKey
Button to reset Radio 2's conguration back to factory
defaults. Refer to Manual Reset and Reboot on page 40 for
details.
Default button for CPU 218
Holes for mounting the NS50.Mounting holes19
Protective arm to lock bre port covers and cable
connectors.
Composite bre port retention
arm
20
Thumbscrew for locking the bre port retention arm.Thumbscrew21
A protective cover for the composite bre port when it is
not in use.
Composite bre port cover22

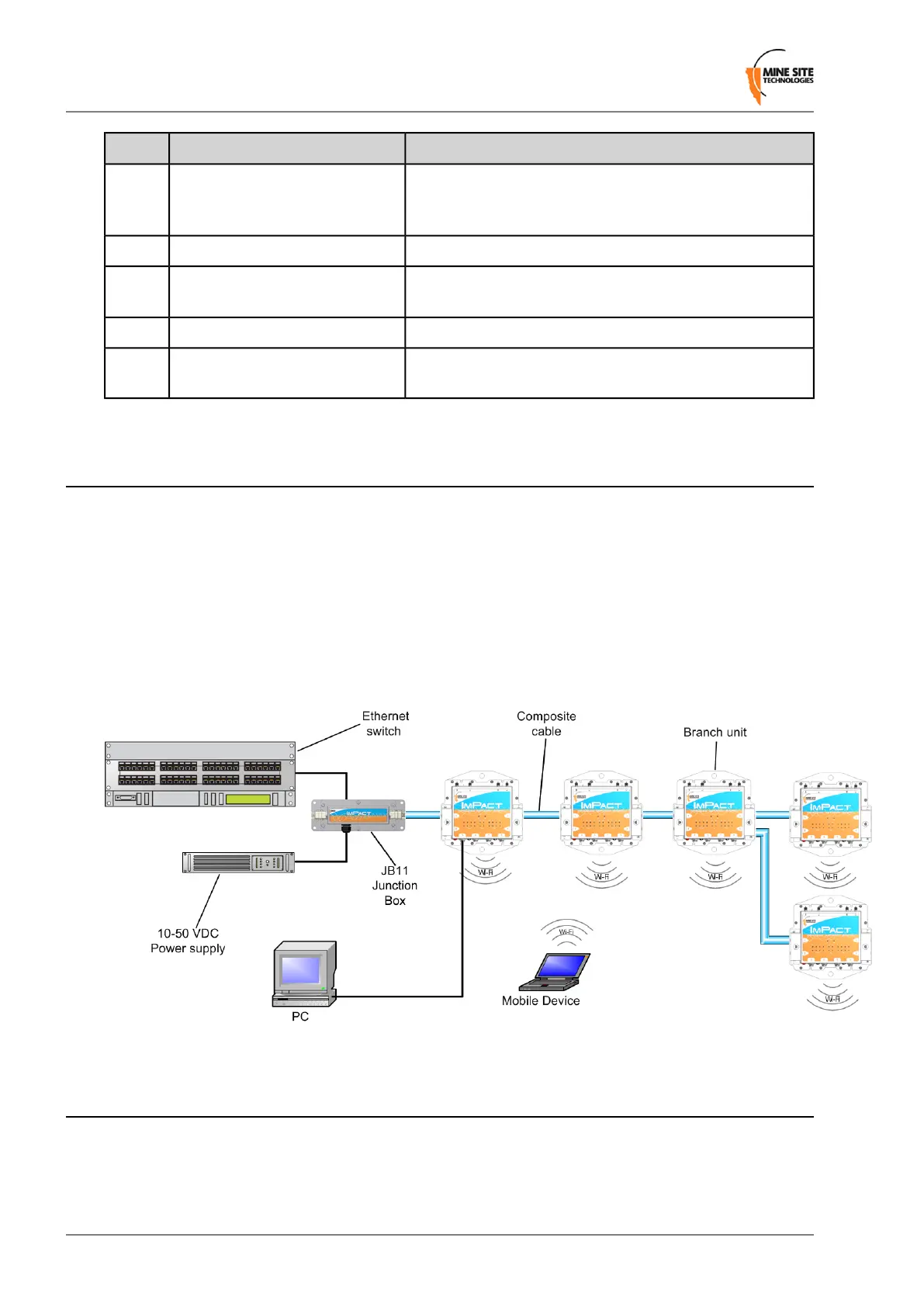

1.2 System Layout
NS50 units are installed in a mine to form a wired and wireless network. This section describes a simple
NS50 system layout in a mine.
The rst NS50 in a network is connected to an Ethernet switch and power supply via a JB11 junction
box. (See Connecting power to the NS50 on page 31).
Units are typically connected in series down the mine tunnel by composite cable. When the mine tunnel
splits into different sections, an additional NS50 is branched from the network. NS50 or Wireless Access
Point (WAP) devices can also be positioned in Wi-Fi ‘hot spots’ such as crib areas and refuge bays.
A PC or mobile device can connect to the network when in proximity of an NS50 or WAP.
1.3 Connectivity
The NS50 has three types of network connections:
• Composite Fibre Ports
• Ethernet Ports
Revision C16NS50 User Guide
Understanding the NS50 Wireless Network Switch
