MST Impact NS5004 User Guide

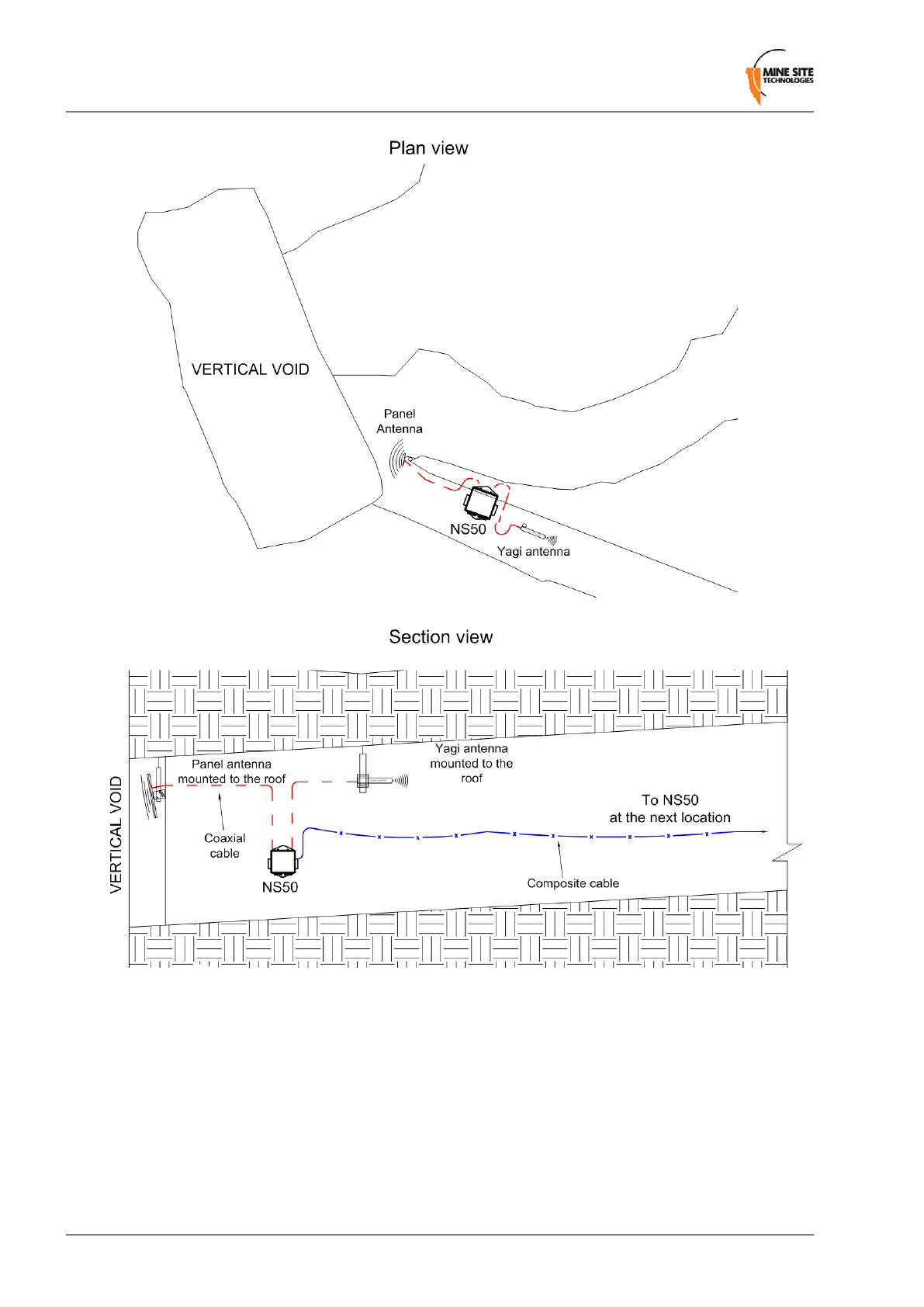

3.3.4 Installation at an Intersection
• A panel antenna is clamped to a mounting pole, and is chemically adhered into the mine roof.
• The panel antenna is angled to provide wide wireless coverage at an intersection.
• A Yagi antenna is installed in the roof providing directional coverage down a straight drive. Each
antenna is connected to a WAC in the NS50.
• The network switch is cable tied to the rock mesh, connected to the composite cable that provides
power and network connectivity.
• The network switch also acts as a link for power and network connectivity to devices in the next
location.
Revision C30NS50 User Guide
Installation
