MST Impact NS5004 User Guide

8.
To edit a device in the list, click on the icon.
9.
Click Save Settings.
5.5.11 Defining VLANs

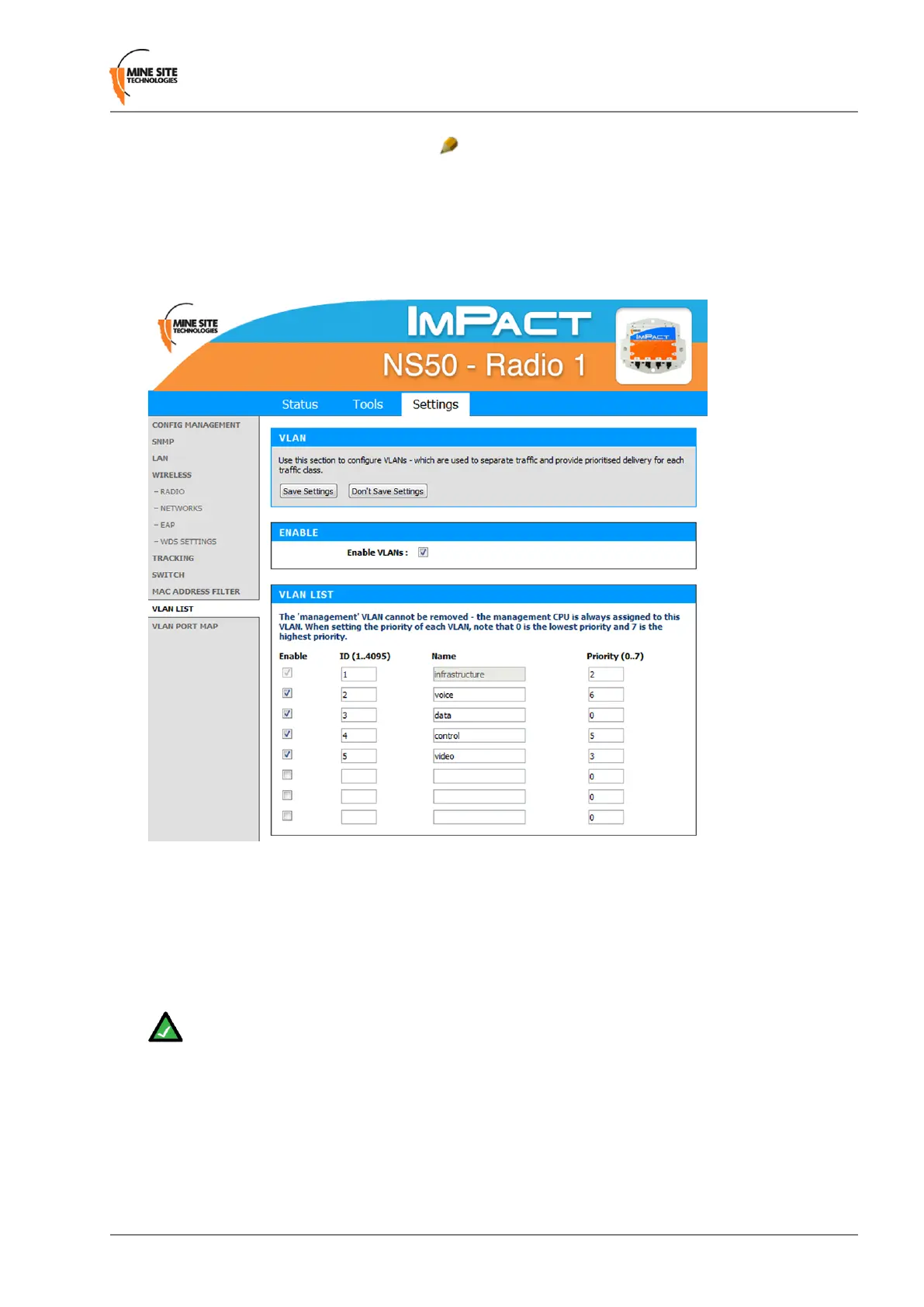

The VLAN LIST screen displays VLANs and the priority that will be assigned to trafc on each VLAN.
For more information, see Understanding VLANs on page 43.
Up to 8 VLANs can be dened with the following parameters:
• Enable: Check box to enable the VLAN.
• ID: VLAN ID number that is tagged in frames sent through trunk ports.
• Name: VLAN name. It should be named to simplify administration.
• Priority: Priority ranges from 0-7 (7 being the highest priority) that is assigned to frames on this
VLAN.
Note: The rst VLAN (Infrastructure) cannot be disabled, because the management CPU is
always on this VLAN.
By default, VLANs are pre-dened with recommended IDs and priorities. This is based on commonly
used applications in mines. Once the VLANs are dened, they can be saved by clicking on the Save
Settings button.
After the VLANs have been dened, they can be assigned to the wireless networks and switch ports
(Network Switch only) on the VLAN PORT MAP screen.
NS50 User Guide81Revision C
