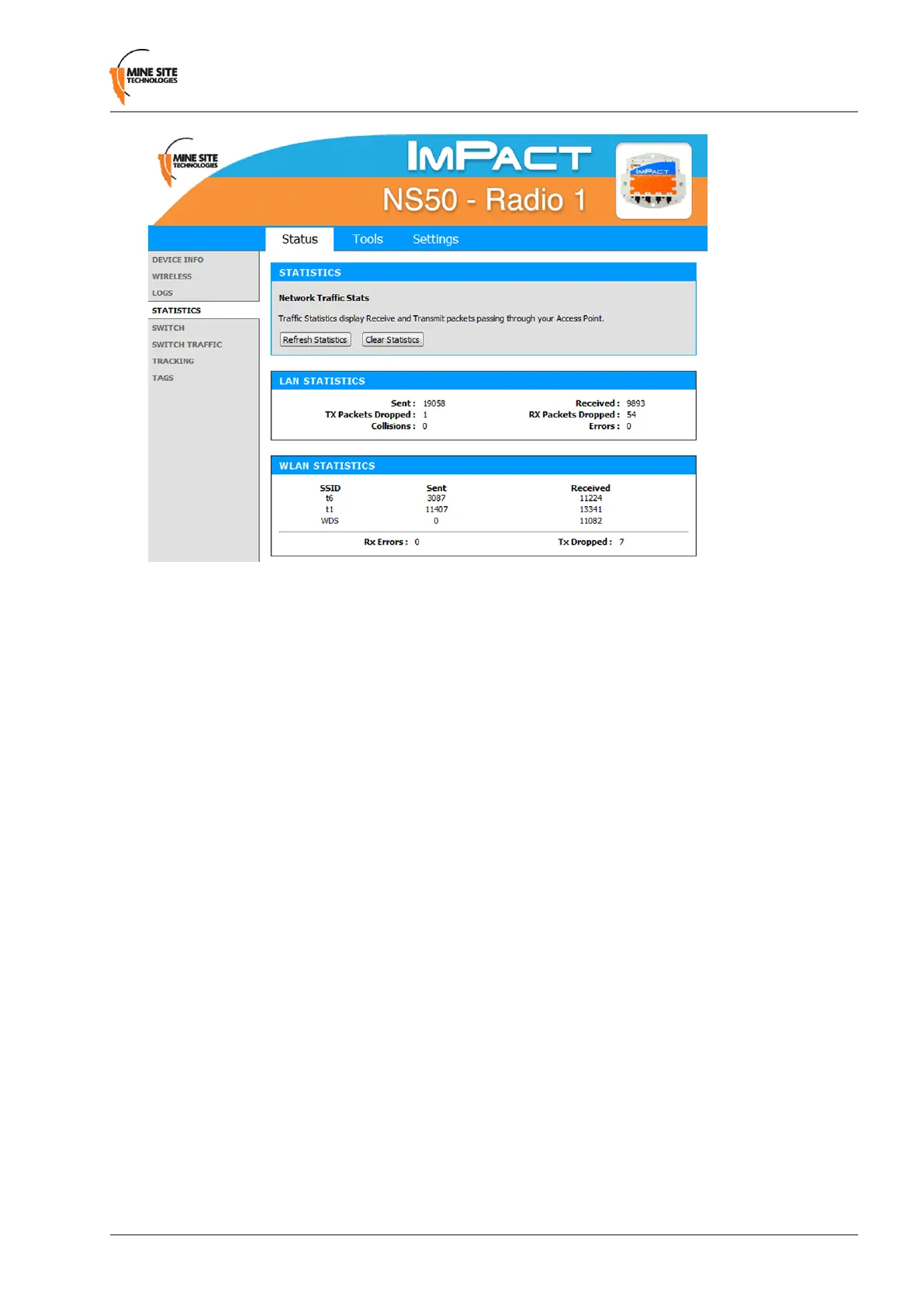

To view statistics:
1.
Click Refresh Statistics to update the statistics.
2.
Click Clear Statistics to clear displayed statistics. A reset conrmation dialog box is displayed.
3.
Click OK.
The following parameters are displayed:
LAN STATISTICS
Sent: The number of frames sent out from NS50 via all physical network interfaces (Ethernet and
Fibre).
Received: The number of frames received by the NS50 via all physical network interfaces.
TX Packets Dropped: The number of frames dropped while being sent to the switch processor,
due to errors, collisions, or network switch resource limitation.
RX Packets Dropped: The number of frames dropped while being received from the switch
processor, due to errors, collisions, or network switch resource limitation.
Collisions: The number of frames dropped due to Ethernet collisions.
Errors: The number of transmission failures that caused the loss of a packet.
WLAN STATISTICS
SSID: The ID of the wireless network.
Sent: The number of frames sent out from the SSID.
Received: The number of frames received by the SSID.
Rx Errors: The number of frames dropped while being received.
Tx Dropped: The number of frames dropped while being sent.
NS50 User Guide55Revision C
Conguration Using the Web Interface
