MST Impact NS5004 User Guide

1.

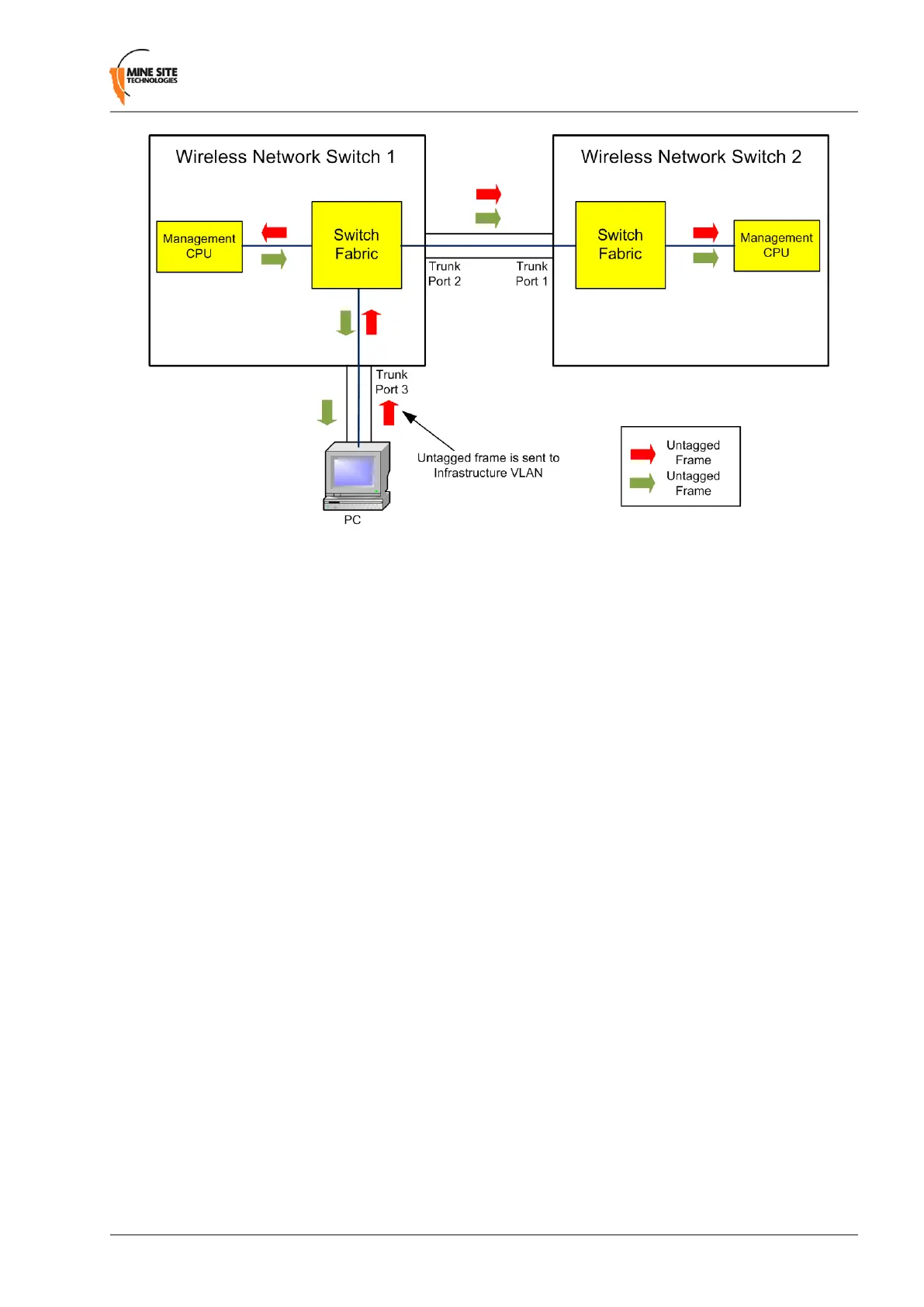

The PC sends an untagged frame to Trunk port 3 on wireless network switch 1.
2.
The frame is allocated to the Infrastructure VLAN.
3.
The management CPU of wireless network switch 1 is always an Access port on the Infrastructure
VLAN and will receive the frame.
4.
The untagged frame would also go to wireless network switch 2 via the Trunk ports between the
network switch units.
5.
Wireless network switch 2 allocates the untagged frame to the Infrastructure VLAN.
6.
The management CPU of wireless network switch 2 is always an Access port on the Infrastructure
VLAN and will receive the frame.
7.
Any frame leaving the Management CPU is placed on the Infrastructure VLAN.
8.
All frames on the Infrastructure VLAN are sent out untagged on Trunk ports.
NS50 User Guide47Revision C
Understanding VLANs
