Belts and Cables
17

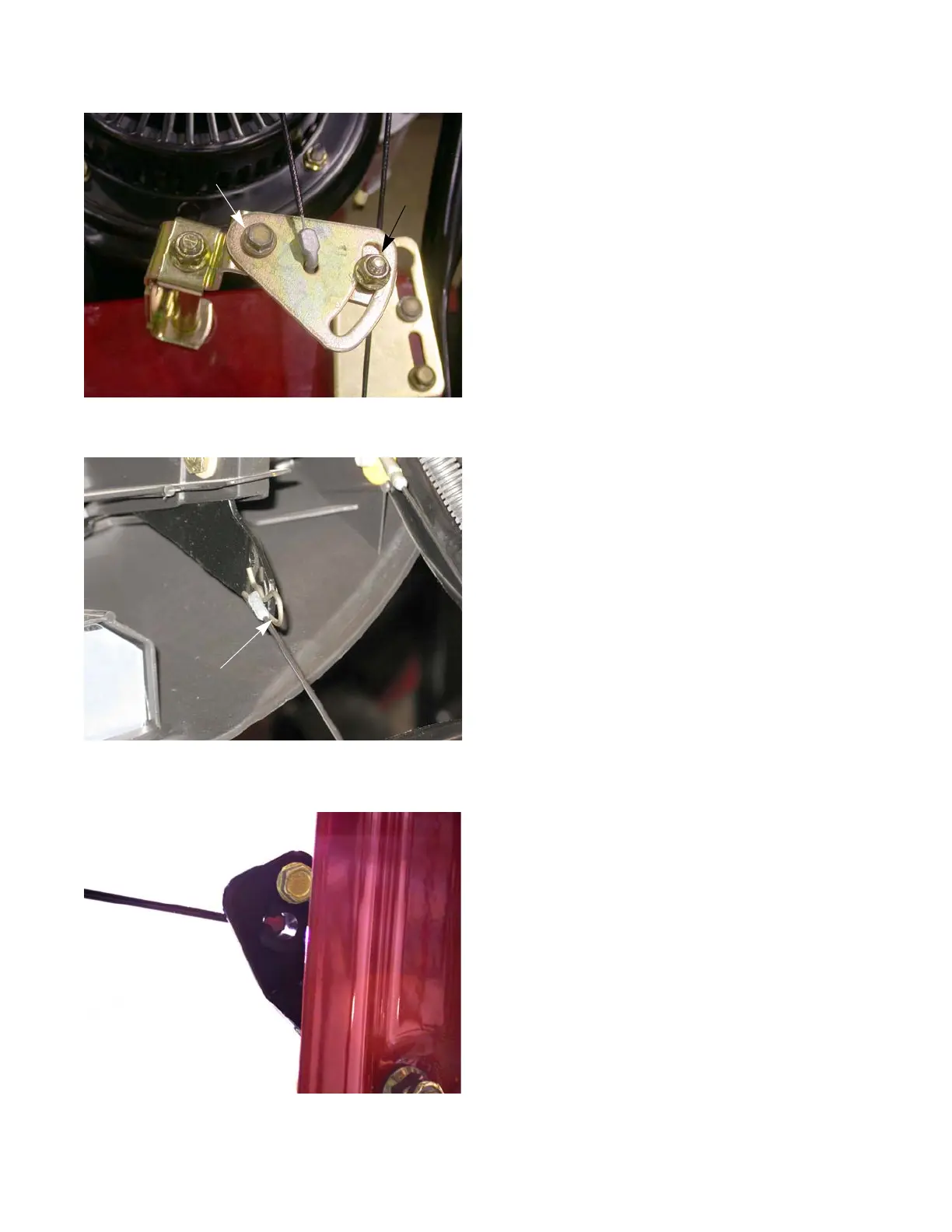

7. Loosen the cable screw and nut enough to free the z-
fitting from the from the Speed Control Pivot Bracket.
See Figure 2.21.
8. Remove the hair pin clip from the cable end. See Fig-
ure 2.22.
NOTE: Early production units have a hex screw securing
the barrel side of the cable to the shifter handle.
NOTE: The bracket securing the cable to the shift lever is
two pieces
9. Install the cable by following the previous steps in
reverse order.
10. Adjust the cable by following the procedures
described in the Speed Control Cable adjustment
section of this chapter.
11. Test run the snow thrower in a safe area before
returning it to service.
