5
Basic control principles
Using a memory device

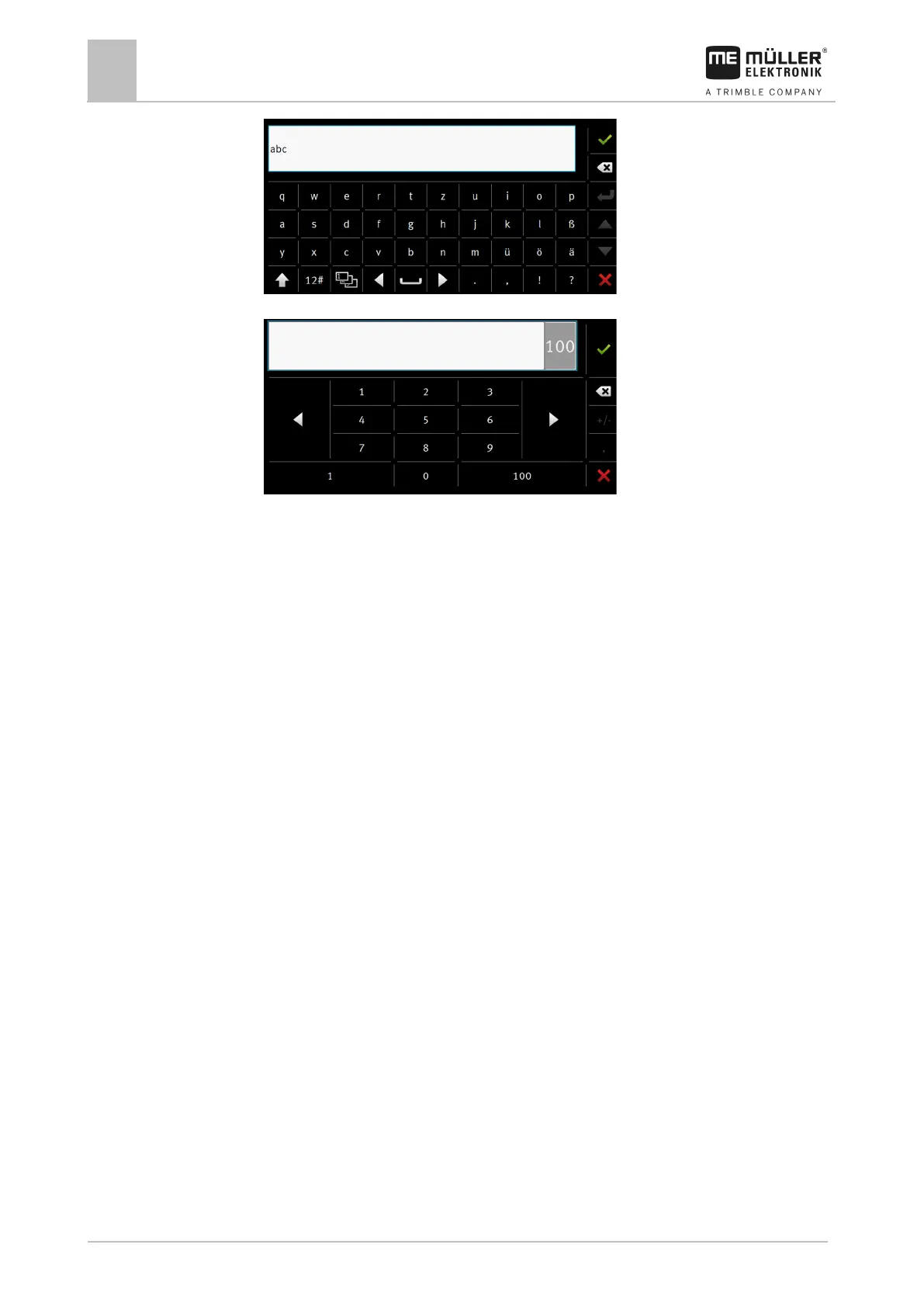

Keyboard for inputting text and numbers.
Keyboard for inputting text.
Using a memory device
The display can work with two kinds of memory devices:
1. With an integrated micro-SD card. This will be used as storage for most applications.
2. With an inserted USB memory device.
The USB memory device is used only for the following purposes:
▪ For data transfer [➙ 24] between the display and PC
▪ For saving screenshots
Using a SD card
The display applications save most data [➙ 24] directly onto the SD card. For information about data
not stored on the SD card, refer to the TRACK-Leader manual.
In order to exchange data between the display and a PC, you will need to proceed differently for each
application. You can find out more about this in the instructions for each application.
Directories on the USB memory device
As soon as you insert the USB memory device into the display, several folders will be created on the
USB memory device. You will need to set up other folders by yourself.
Each directory may only contain certain data, so that the applications on the display can use this
data.
▪ "documents"
– Files: .txt
– Purpose: Records for all completed tasks are saved in this folder.
▪ "FIELDNav"
– Files: .iio, .data
