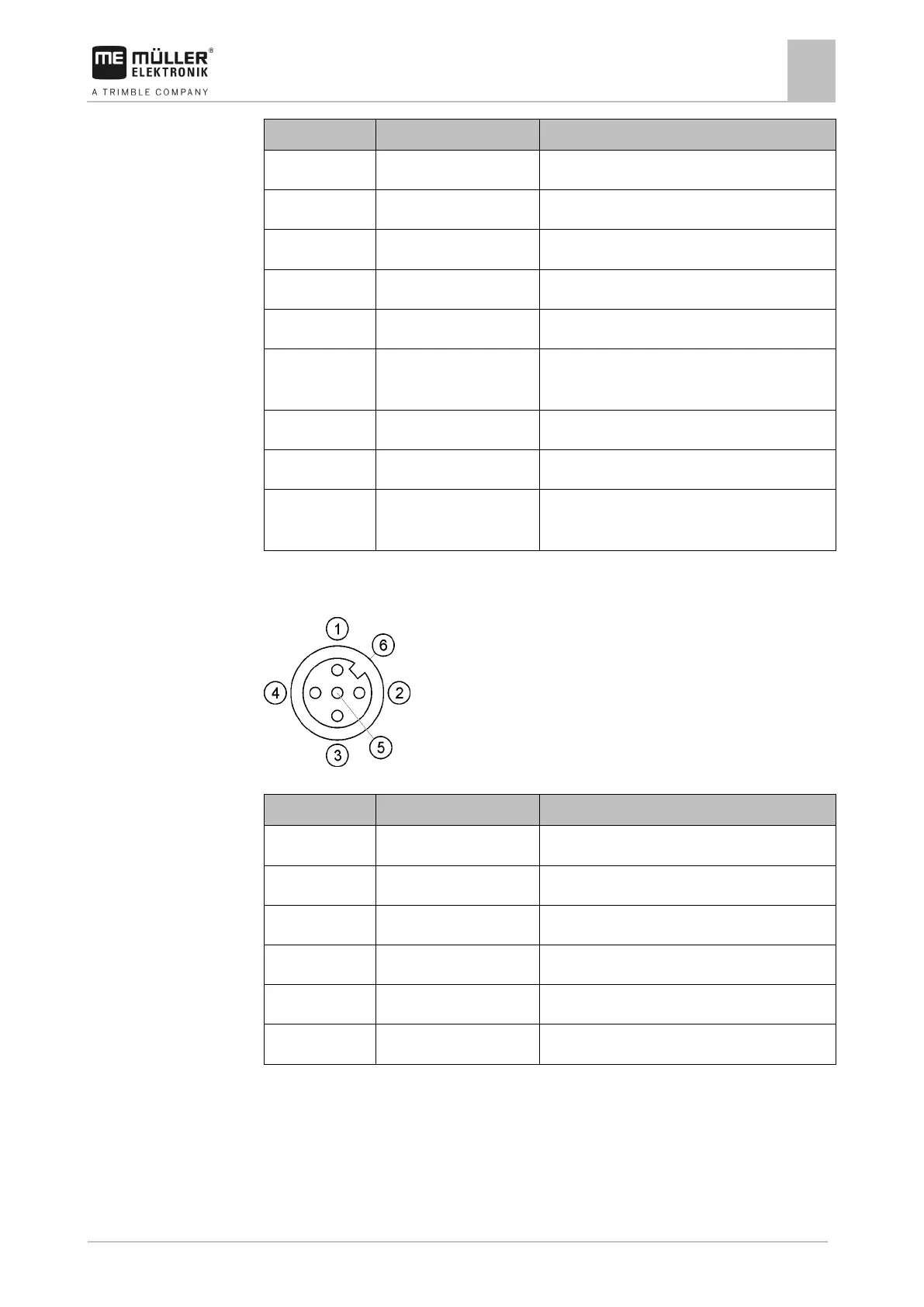

Technical specifications
Assignment plans
12
31302713-02-US
V9.20191001
81
Pin
Signal name
Function
6
DSR
DSR
2
/RxD
/RxD
7
RTS
RTS
3
/TxD
/TxD
8
CTS
CTS
4 (DTR) Switched input voltage ≤ max. 250 mA total (Pin 1
+ Pin 4)
9
(RI)
5 V ≤ 250 mA
5
GND
Signal ground
Electromagnetic
shielding
Screen ESD/EMV shielding
CAM port
M12 socket: Camera
Pin
Signal name
Function
1
Power
Voltage supply, max. 250mA
2
Supply ground
Supply ground
3
FBAS2
Camera
4
FBAS
Camera
5
Signal ground
Signal ground
6
Screen
ESD/EMC shielding
