Connecting and configuring external devices
Camera
6
Connecting the camera NQ - provided by ME

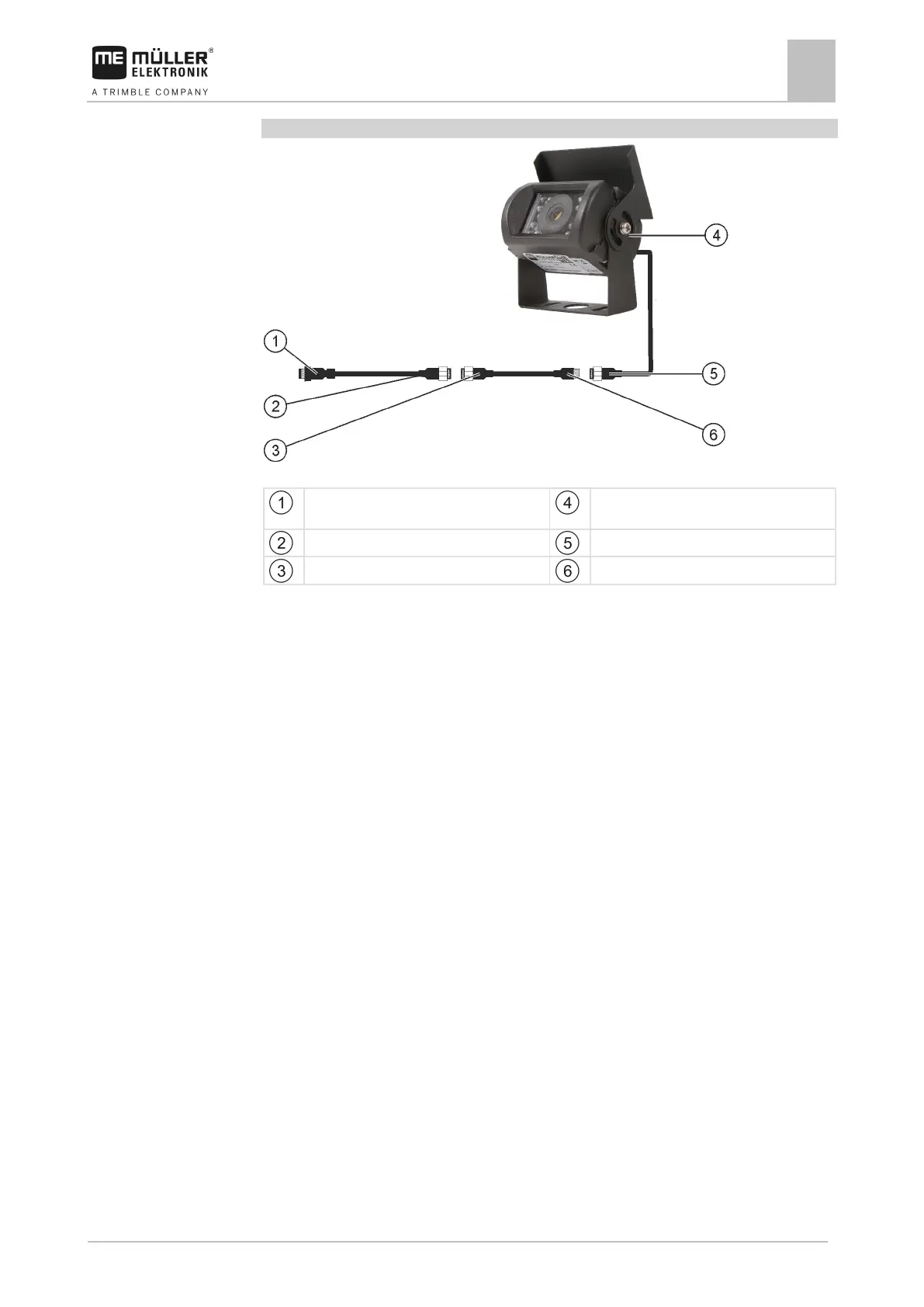

Camera with adapter cable
Plug for connection to the display.
CAM port
Connector for the adapter cable
Camera plug
Connector for the extension cable
Connector for the camera plug
1. Connect the cables to each other as shown in the figure. Pay attention to cable lengths when
doing so.
2. CAUTION! When laying out the cable, ensure that there are no kinks in the cable and that
no one can stumble over the laid-out cable.
3. Lay out the cable. Ensure that the cable reaches the display and is not damaged during
operation.
4. Secure the cable with the provided cable ties.
5. Secure the camera. Use the white cardboard drilling template from the quick start guide for this
purpose.
6. Connect the camera to the display. Use the CAM port to do this.
7. Activate the camera. [➙ 38]
8. When disconnecting the cable from the display, use the enclosed rubber gasket to seal the
exposed connector.
