Muller Elektronik TRACK-Guide III User Manual

Technical specifications
Assignment plans
12
31302713-02-US
V9.20191001
79
1 x Sub-D 9 plug
1 x Sub-D 9 plug (CAN & signals)
1 x M12 (camera)
1 x M12 (industrial Ethernet)

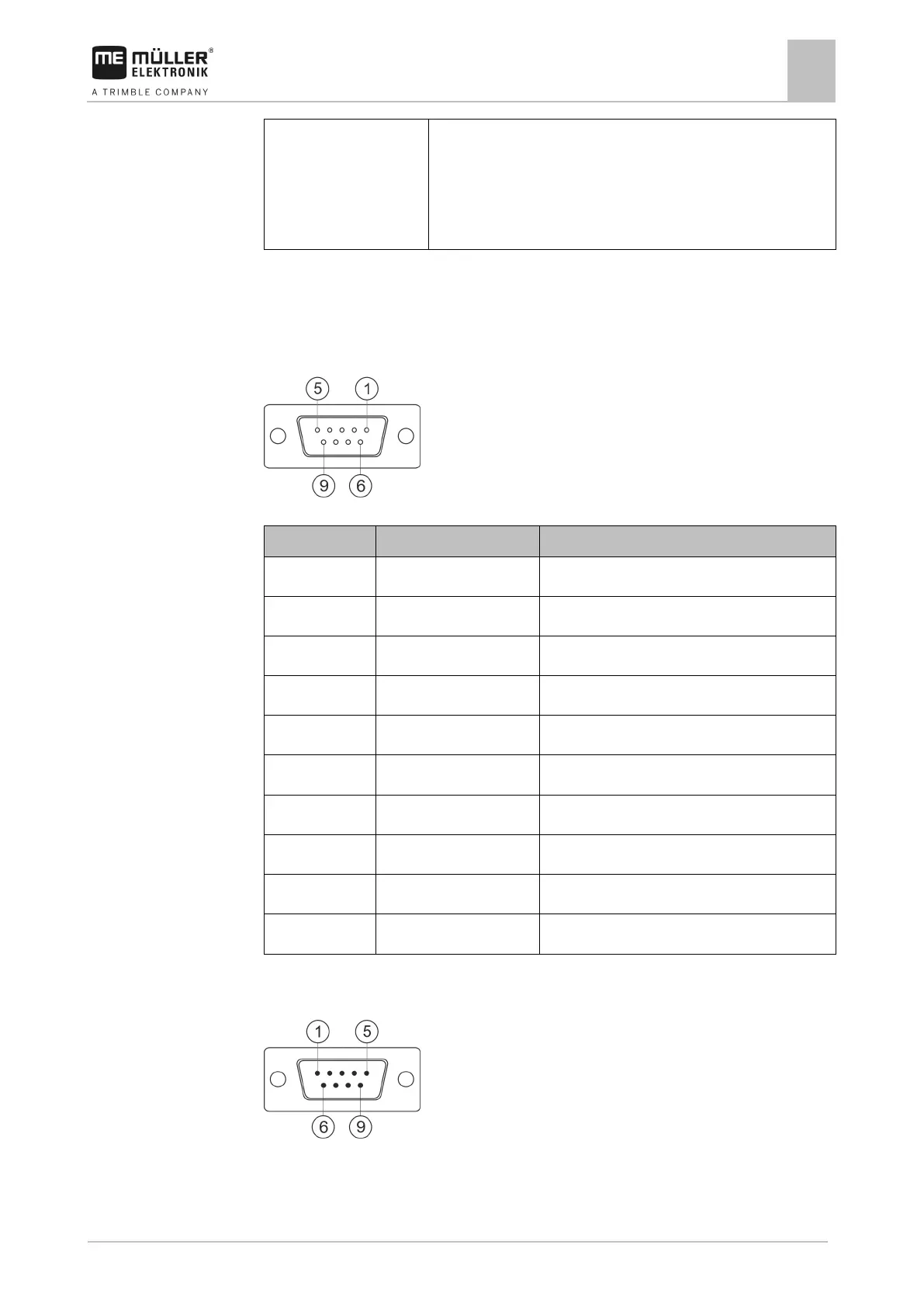

Assignment plans
Port A (CAN bus)
9-pin Sub-D socket
Pin
Signal name
Function
1
CAN_L
CAN_L out
6
-Vin
Supply ground
2
CAN_L
CAN_L in
7
CAN_H
CAN_H in
3
CAN_GND
CAN ground, internally connected to the ground
8
CAN_EN_out
Switched input voltage, ≤ 250mA
4
CAN_H
CAN_H out
9
+Vin
Supply
5
Ignition
Ignition signal
Screen
Screen
ESD/EMC shielding
Port B
9-pin Sub-D connector
Port B is a 9-pin Sub-D connector.
The connector can be used for the following purposes depending on its assignment:
12.2
12.2.1
12.2.2

Muller Elektronik TRACK-Guide III Specifications

General

Brand	Muller Elektronik
Model	TRACK-Guide III
Category	Automobile Electronics
Language	English
