Part Number 9294699 12/16/15 45
Section 4 Maintenance

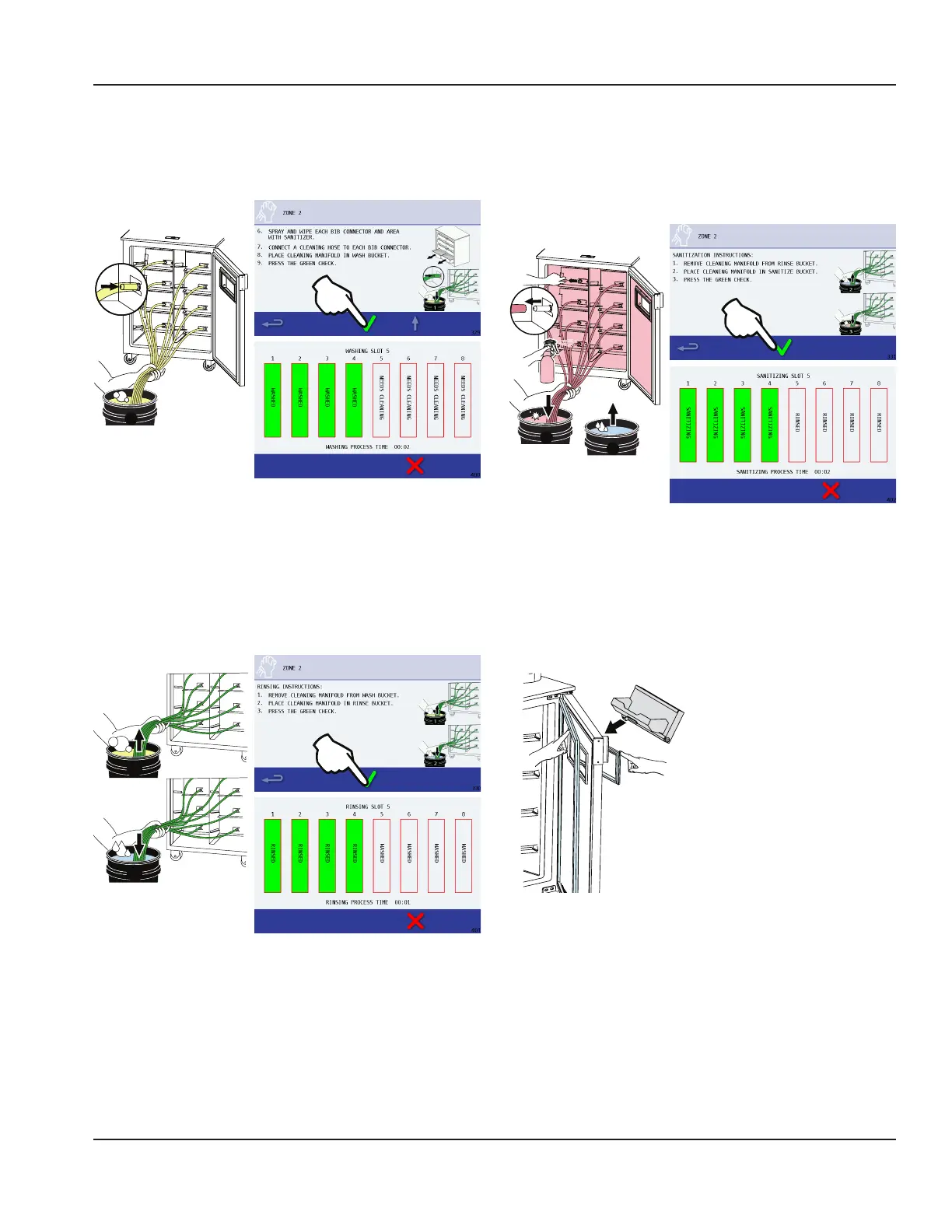

Connect Cleaning Tubes
1. Place cleaning manifold into bucket #1 - Cleaner.
2. Connect the four (4) shorter tubes to bottom white
nozzles - four (4 ) longer tubes to top white nozzles.
3. Press Green Check to continue and begin cleaning the
lines. The wash solution will cycle though each line and
display progress on the screen.
Rinse Lines
1. DO NOT ALLOW CLEANING MANIFOLD TO TOUCH
THE FLOOR.
2. Remove cleaning manifold from bucket #1 - Cleaner
and place into bucket #2 - Warm Rinse Water.
3. Ensure each of the manifold tubes are connected.
4. Press Green Check to continue and begin rinse. As
Rinse solution runs through each line, the display will
change from Washed to Rinsed and turn green.
Sanitize Lines
1. DO NOT ALLOW CLEANING MANIFOLD TO TOUCH
THE FLOOR.
2. Remove cleaning manifold from bucket #2 - Warm
Rinse Water and place into bucket #3 - Sanitizer.
3. Ensure each of the manifold tubes are connected.
4. Press Green Check to continue and begin rinse. As
Rinse solution runs through each line, the display will
change from Washed to Rinsed and turn green.
Whip Cream Door *, Gasket Seals, & Drip Tray
1. Install whip cream door gasket.
2. Install whip cream door by positioning the spring
button into refrigerator door opening, push spring
button and snap into place.
3. Replace drip tray and gasket on inside of refrigerator
door, press into position all the way around the door.
4. Press Green Check to continue.
1
1
2
3
2
