VOLTAGE OUTPUTS
External loads are connected to the generator via the
UVWO voltage outputs. Various output voltages can be
accessed either by terminal lugs, buss bars or camloks.
Voltages are dependent on the position of either the voltage
selector switch or voltage change-over board depending
on type of generator.

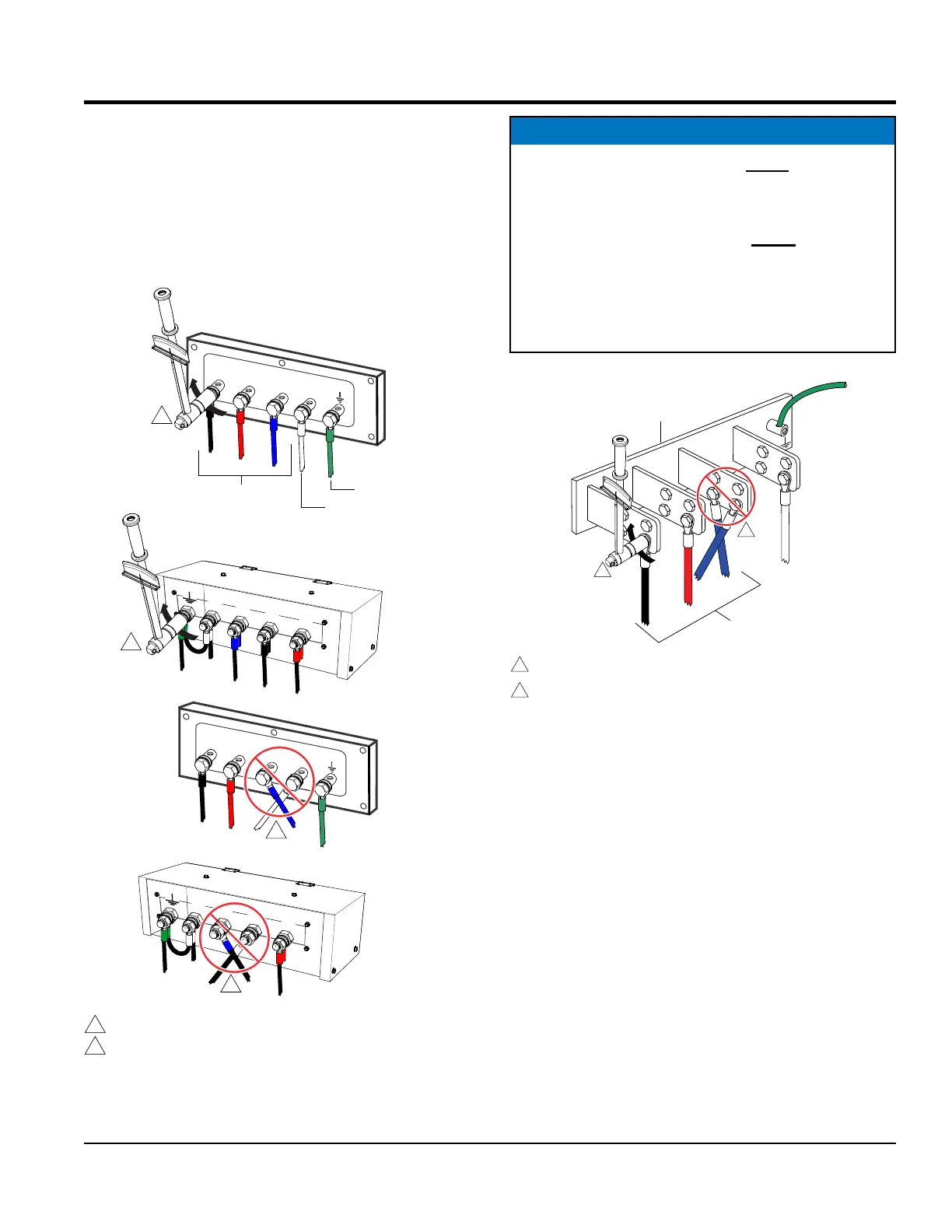

Figure 24. Output Terminal Panel
Voltage Outputs
U
V
W
O
VOLTAGE OUTPUT
TERMINAL PANEL (LUGS)
O
U
V
W
BLACK RED
BLUE
WHITE
GREEN
FRONT
REAR
TORQUE
WRENCH
TORQUE
WRENCH
NOTE:
TORQUE NUTS/BOLTS AS REFERENCED IN TABLE 9.
1
1
O
U
V
W
BLACK RED
BLUE
WHITE
GREEN
CORRECT
2
TERMINAL RING WITH WIRE SHOULD BE FULLY VERTICAL
ON FRONT AND REAR ON OUTPUT TERMINAL PANEL.
2
1
FRONT
U
V
W
O
REAR
2
CORRECT
1Ø AND 3Ø,
480 -120 VAC
OUTPUT TERMINALS
NEUTRAL
TERMINAL
GROUND
TERMINAL
COMPONENT IDENTIFICATION
Figure 25. Buss Bar Voltage Outputs
When attaching terminal rings with wires to the output
terminal panel, always make sure the wires are in a fully
vertical position. NEVER attached the wires at an angle.
The possibility exist that the wires could touch each other,
thus causing a short. This condition could cause severe
damage to the equipment and bodily harm.
DO NOT over tighten the nuts and bolts that secure the wire
terminals to the output terminal panel. Reference Table 9
for the correct torque specication.
NOTICE
DCA-400 model generators and below use terminal
lugs for the UVWO voltage output as referenced in
Figure 24.
DCA-600 model generators and above utilize buss
bars (for the UVWO voltage output as referenced
Figure 25.
Camloks are available as an option on most MQ Power
generators.
U
V
W
GND.
BLACK
RED
O
WHITE
GREEN
NEUTRAL
LOAD
GROUND
1Ø AND 3Ø,
480 -120 VAC
OUTPUT TERMINALS
USED ON DCA600
GENERATORS AND ABOVE
VOLTAGE OUTPUT
TERMINAL PANEL
(BUSS BARS)
NOTE:
TORQUE NUTS/BOLTS AS REFERENCED IN TABLE 9.
1
TERMINAL RING WITH WIRE SHOULD BE FULLY VERTICAL
ON BUSS BAR.
2
TORQUE
WRENCH
1
BLUE
2
CORRECT
