SAFETY DECALS
(
ROLLER
)
5511 lb
2500 kg
30° ≤ β ≤ 75°
15° ≤ α ≤ 65°
LC
1600 kg
WLL
3527 lb
β
α
dB
WA
L
3038
3212
2.1 Major Safety Precautions
14 Guaranteed acoustic power level
9 Sets of lters

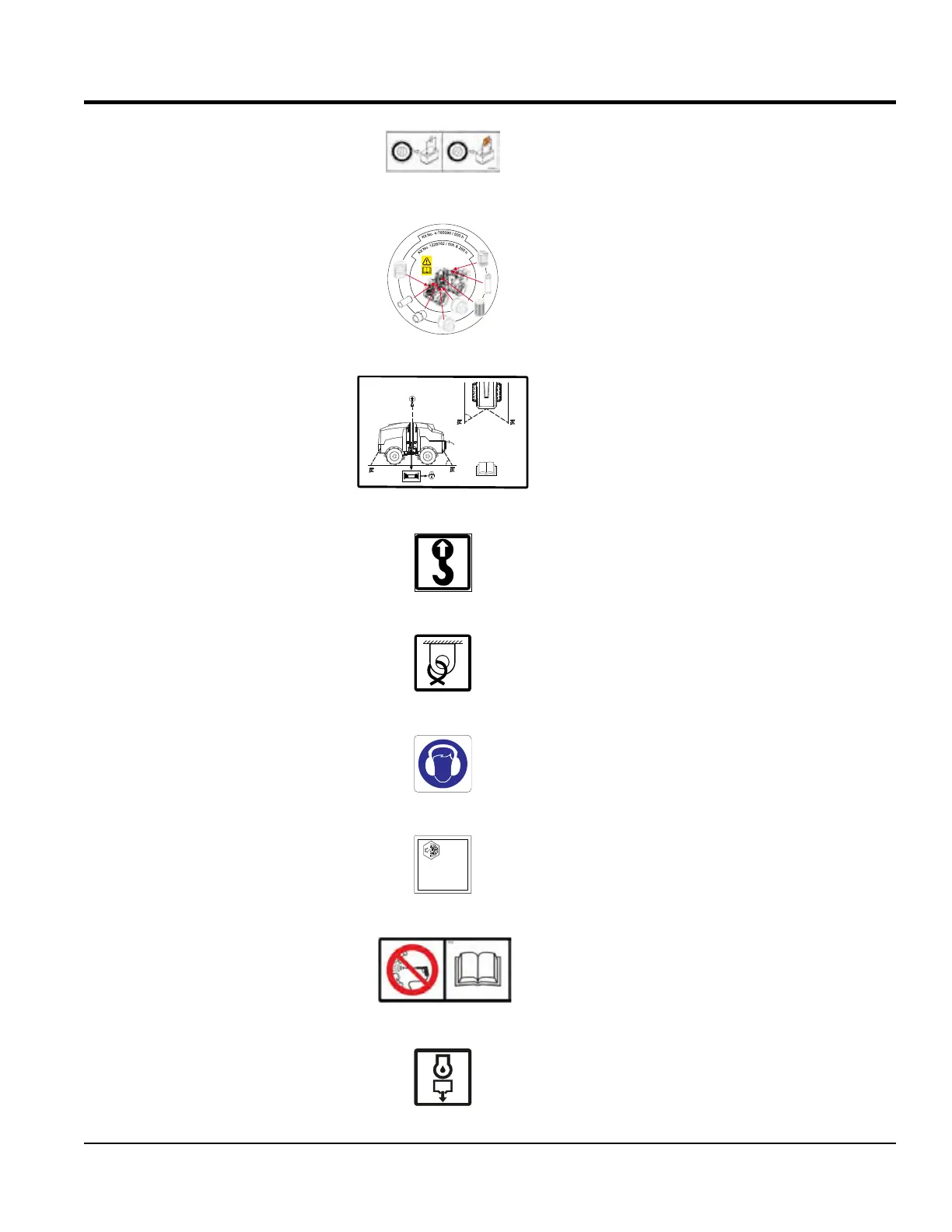

10 Lifting diagram To lift the machine, use binding means of sucient load-
ing capacity according to the Machine loading chapter.
Before lifting, lock the articulation of the machine.
11 Lifting lug To lift, suspend the machine on these lugs only.
12 Tying lug Use only these lugs to tie the machine during transport.
13 Ear protection Dangerous noise level! Use ear protection.
15 Washing the machine by water Dangerous situation. Prevent water from entering the
electric and electronic parts of the machine as it could
result in damage to the equipment and injury of persons.
Read Operation Manual!
16 Engine oil draining plug
8 Ignition Get perfectly familiar with the machine operation accord-
ing to the operation manual.
