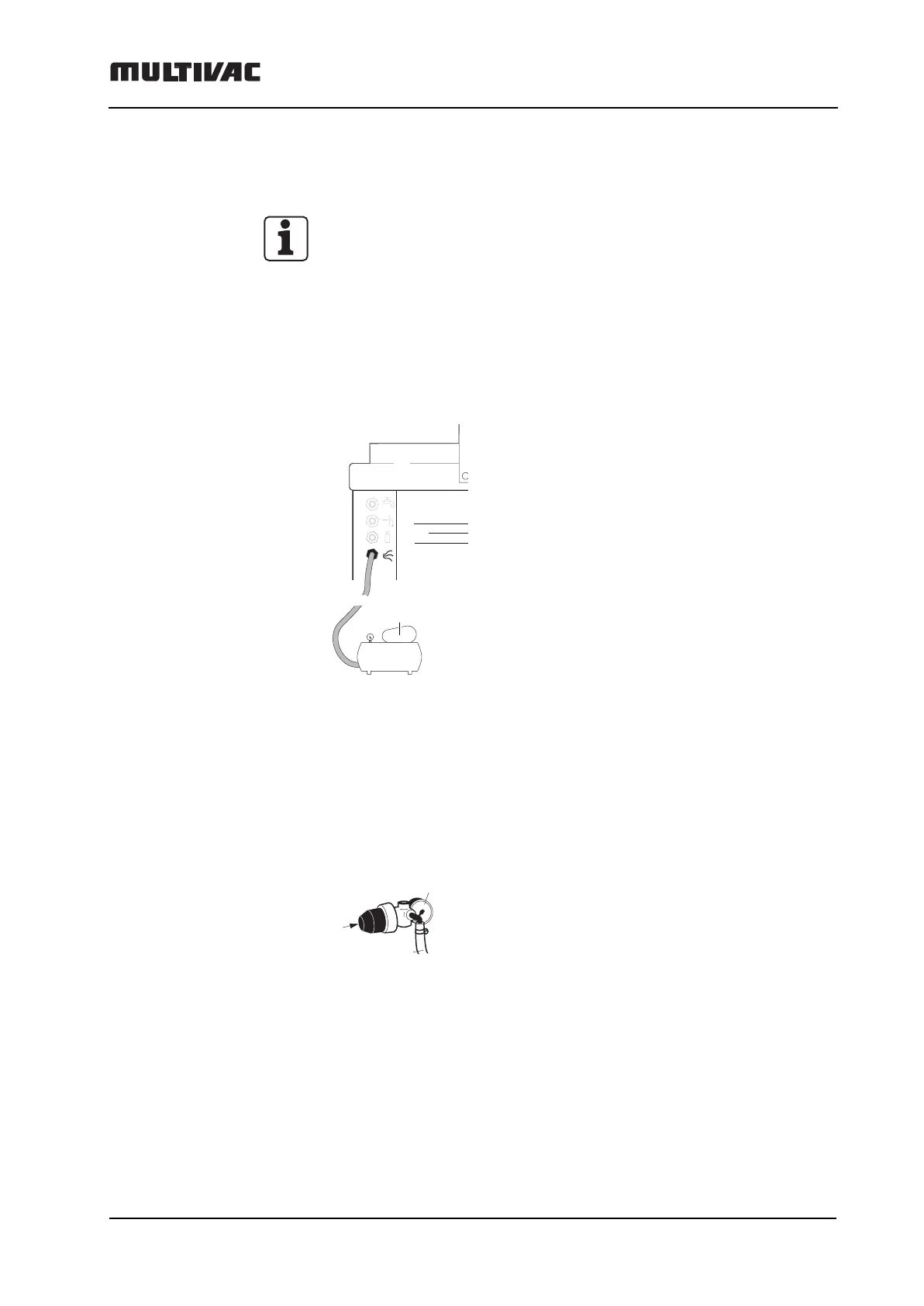

Pressurised air
connection
For special cases, e.g. when packaging hot liquids or with high pressure
gas flushing of the packaging, a compressed air connection is installed to
increase the sealing force (see Fig.).
Without compressed air connection:
Sufficient sealing force is only obtained with a final pressure of under 400
mbar. Do not set a value higher than this.
– Use a pressurised air hose with an internal diameter of 8 mm.
Max. hose length: 5 m.
– Initial pressure at pressurised air connection: max. 6 bar.
– Set if necessary.
To do this:
– Open control cabinet doors on the machine.
– Pressure reducer is accessible.
– Set on pressure reducer (A): max. 1.5 bar.
– This increases sealing force.
max. 5 m
max. 6 bar
max. 1,5 bar
max. 7 bar
Di 8 mm
A
max. 1,5 bar
max. 6 bar
mm
