Transport, Set-up, Putting into operation

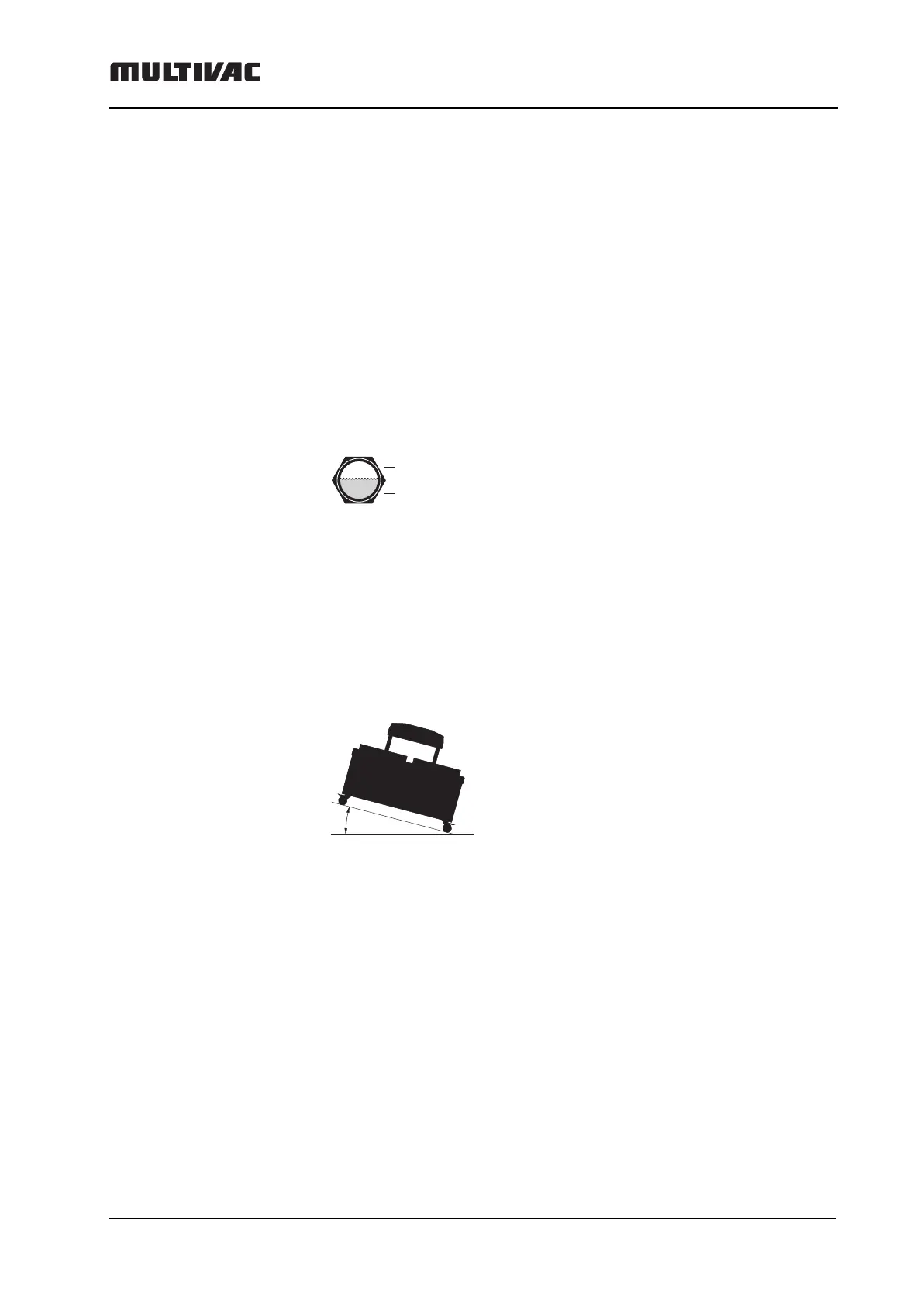

Set-up
– Note the weight of the machine, see "Technical data".
– Use suitable lifting equipment or have somebody else to assist you.
– Unpack the machine.
– Check there has been no damage caused during transport.
– Fill the vacuum pump with the oil (can) supplied.
– Check the oil level with the inspection glass.
Correct oil level between min. and max.
– After the oil has been poured in, the machine may only be levelly trans-
ported; the maximum gradient is 15°.
There are air de-oiling elements in the vacuum pump.
At an increased gradient the oil will move into the vacuum pump. Pos-
sible consequences:
– Air de-oiling components are wetted with oil and therefore become
unserviceable; this can be recognized by the presence of a strong
oil mist.
– The vacuum pump will be damaged.
max.
min.
max. 15°
