BRAKE ADJUSTMENT
1. Stop the unit, turn the ignition OFF, set the ground
speed levers to START/PARK positions, set the
parking brake lever to the ENGAGE position, and wait
for all moving parts to stop.
2. Locate the brake rod (A, Figure 34) and adjustment
nut (B).
3. Measure the parking brake spring. Its compressed
length, with the parking brake lever in the ENGAGE
position, should be 3-1/2" (8.9 cm). Adjust the spring
length by turning the adjustment nut (B), if necessary.
WARNING

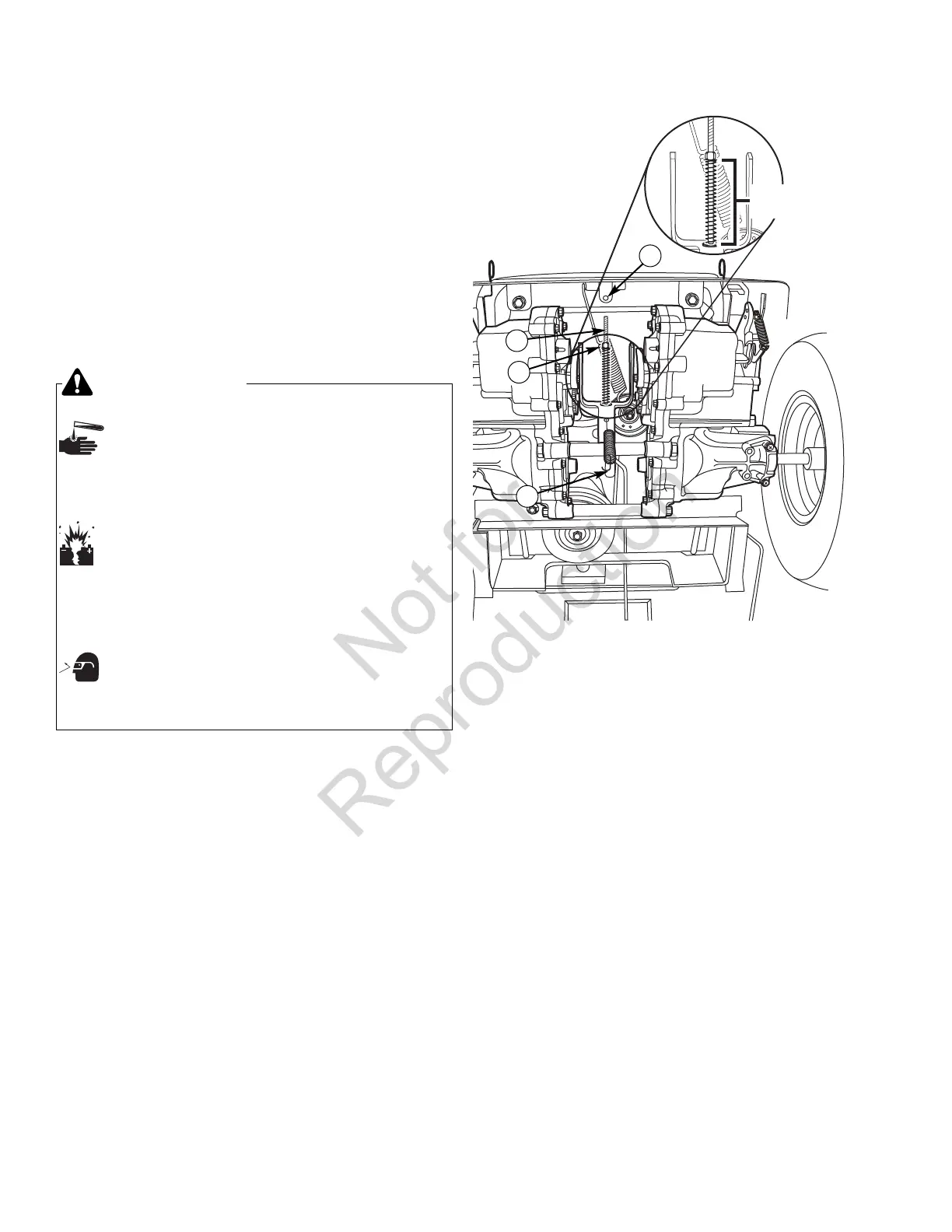

Figure 34. Brake Adjustment
A. Brake Rod
B. Adjustment Nut
C. Return Spring (Removed for Illustration Only)
D. Return Spring Hole
A
B
C
D
Corrosion hazard.
Batteries contain acid. Always keep the
battery upright and do not spill the
electrolyte. Avoid contact with skin and
eyes.
Explosion hazard.
Changing the battery produces explosive
hydrogen gas. Only charge the battery in a
well ventilated area, away from any ignition
source such as a water heater, electric
motor, or a lit cigarette.
Wear Protective Equipment.
Always wear gloves and safety glasses
when handling the battery and battery
cables.
BATTERY CHARGING
A dead battery or one too weak to start the engine may
be the result of a defect in the charging system or other
electrical component. If there is any doubt about the
cause of the problem, contact your local dealer. If you
need to replace the battery, follow the steps under
CLEAN THE BATTERY AND CABLES in the
Maintenance section.
To charge the battery, follow the instructions provided by
the battery charger manufacturer as well as all warnings
included in the safety rules sections of this book. Charge
the battery until fully charged (until the specific gravity of
the electrolyte is 1.250 or higher and the electrolyte
temperature is at least 60°F [16°C]). Do not charge at a
rate higher than 10 amps.
ENGINE ADJUSTMENTS
The engine is designed to deliver the correct performance
under all operating conditions. Any adjustments must be
performed by your local authorized dealer.
