Operation Instructions Spitfire 65/90 Extreme
CHAPTER 4 : PERIODICAL MAINTENANCE
44 AP-77140 – Rev. 1.1 – 05/04/07

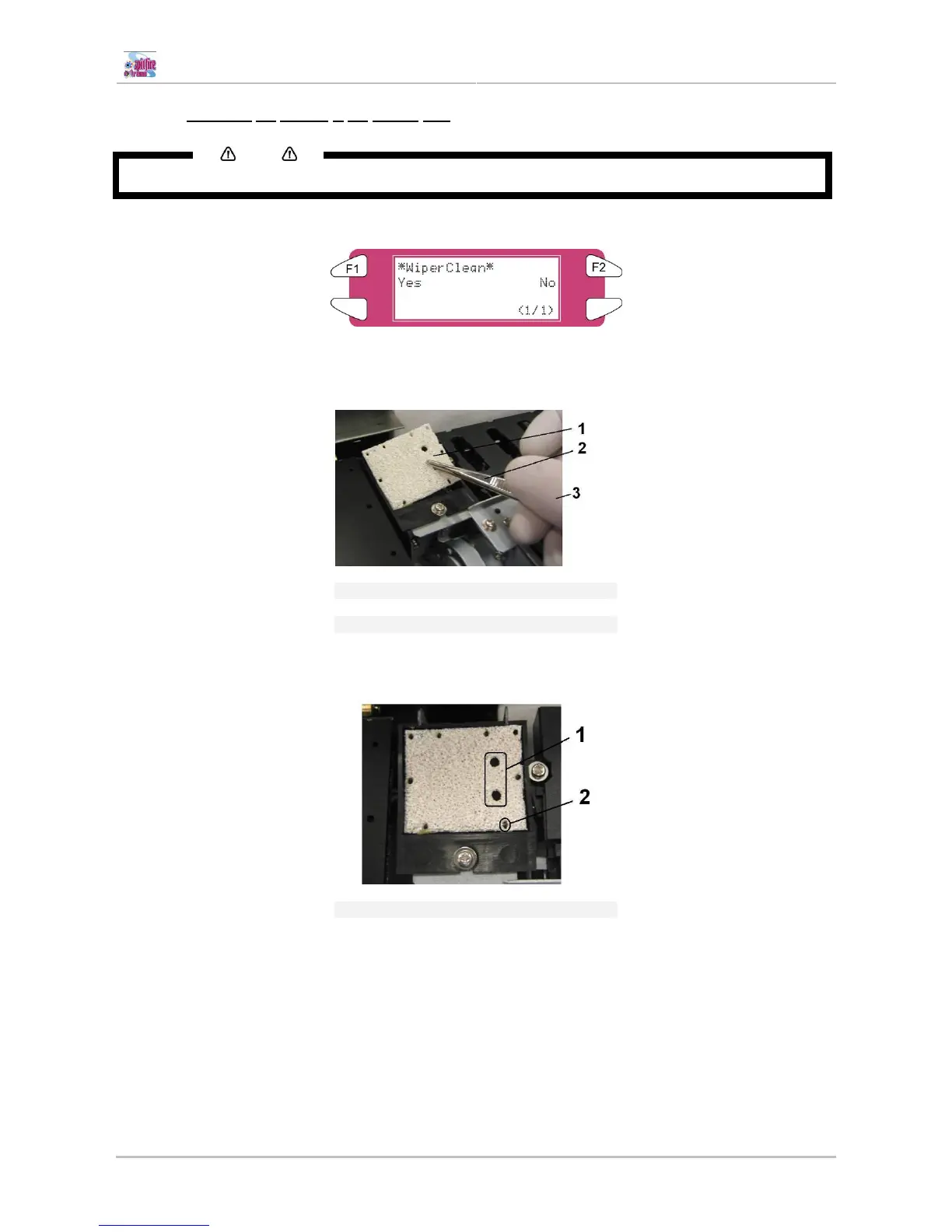

4.1.3.3 Replacing the sponge in the spitting box.
Notes
Use gloves and tweezers to change the absorbent in the flushing box.
Step 1 : Unlock the head
Step 2 : The carriage moves to the waiting position for replacing the flushing sponge.
Step 3 : Remove the old absorbents with tweezers.
1 Sponge (KY-42889)
2 Tweezers
3 Gloves
Step 4 : Install the new absorbents in the flushing box. Make sure that the 2 holes are on the right side of
the flushing box and that the pins of the black box are in the holes of the absorbent.
1 Two holes
2 Pin of black box
Step 5 : Lock the head.
