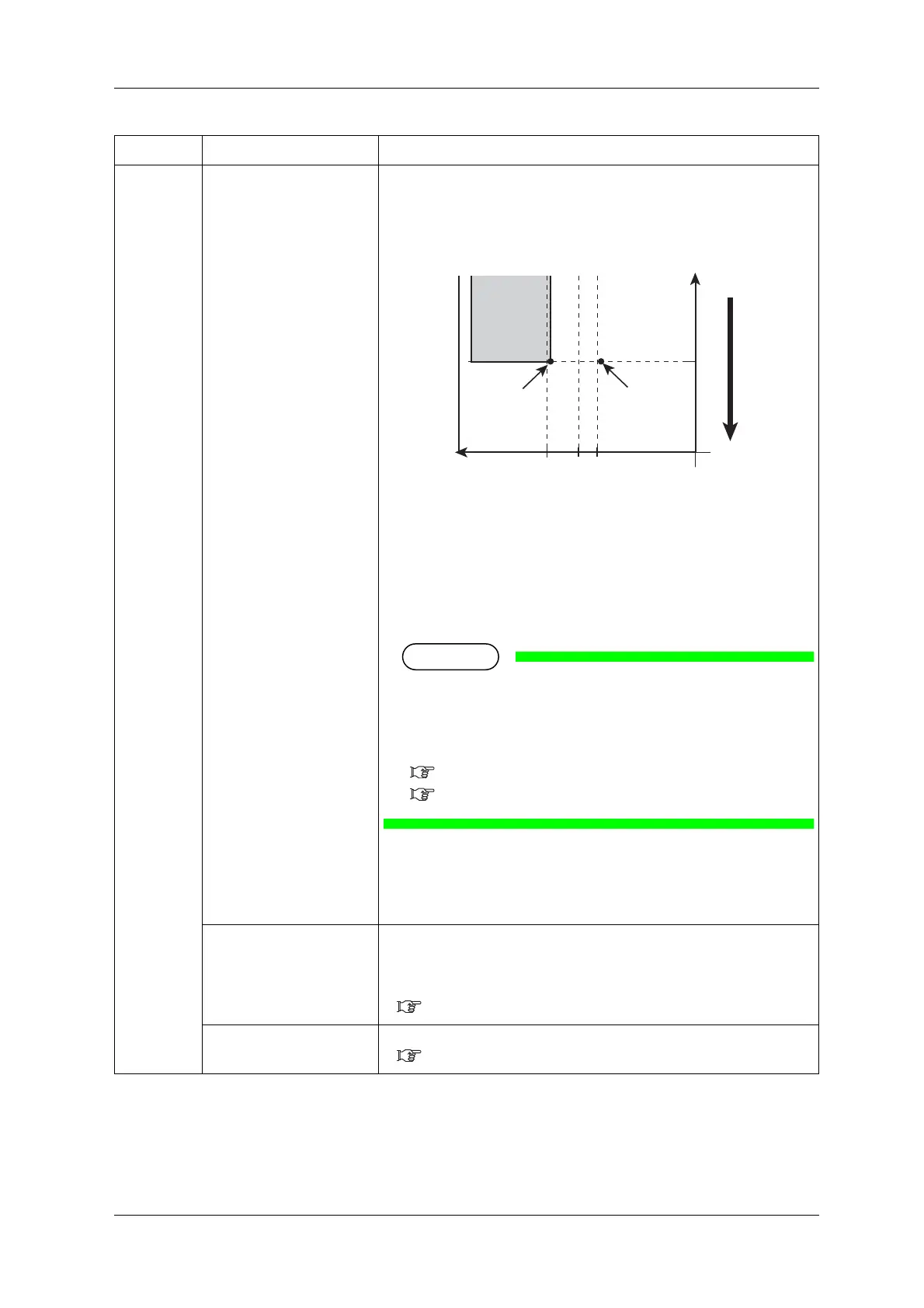

VJ-2638/1638X/1938WX/1638WX OPERATION MANUAL Panel setup menu
5.1 Setup menu 259
Setup item Setting Description
Origin • X (media feeding distance):
-15000 mm to 15000 mm
• Y (print head transferring
distance):
For VJ-2638:
0 to 2,422 mm
For VJ-1938WX:
0 to 1,690 mm
For VJ-1638X/1638WX:
0 to 1,405 mm
Change Print head position and media feeding distance with the following
keys.
• [+] key: increases the setting value.
• [–] key: decreases the setting value.
1. Print starting position
2. Media feed direction
3. Setting position of "Origin"
X (media feeding distance)
Y (print head transferring distance)
a (0mm/8mm: Spitting setting is ON, Off/On Media)
b (5mm to 25mm: Side margin setting)
• The right side margin will be the following sum depending
on the setting.
Y of Origin menu + 8mm (when the spitting is set to On
Media) + Value set in Side Margin menu.
5.1.2 Spitting menu
5.1.3 Side Margin menu
• [Enter] key:
"Moving Origin Pos." is displayed on Operation panel and Print head moves
to the starting position.
The following content is displayed on Operation panel.
Confirm Position -> Enter • [Enter] key or after a certain period of time:
Determines the setting.
Print head returns to the original position.
Save the setting and shift to the previous menu.
5.1 Setup menu
— • [Cancel] key: cancels the setting and shifts to the previous menu.
5.1 Setup menu
To Next Page
