VJ-2638/1638X/1938WX/1638WX OPERATION MANUAL Product overview
2.2 Names of parts and functions 31
2.2.2 Rear section

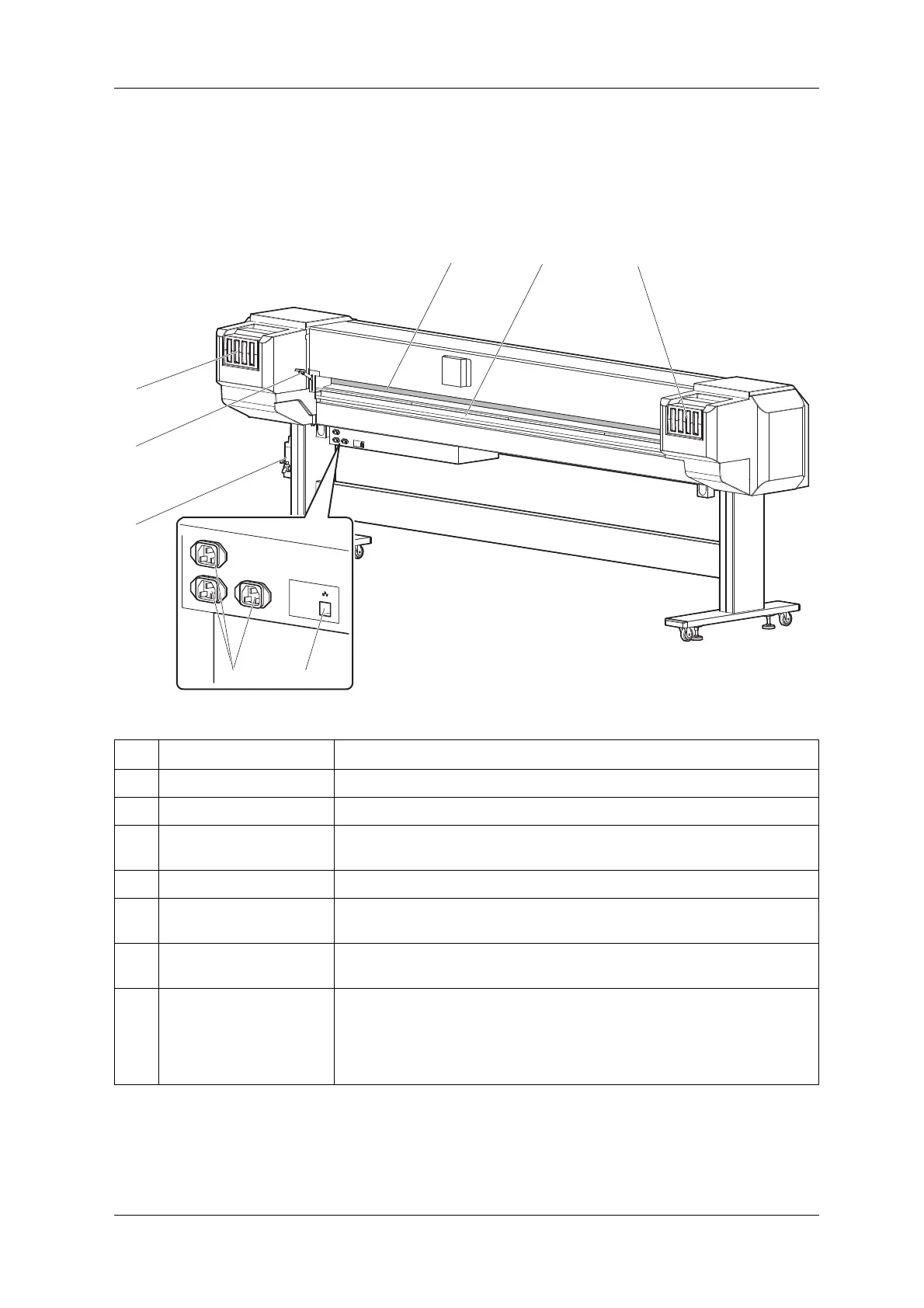

(1) Rear section(VJ-2638)
No. Name Function
1 Media feed slot Used for feeding media.
2 Ink cartridge slot Insert Ink cartridges.
3 Media guide Used to feed the media smoothly when loading or printing on the media.
• Heater (Pre-heater) to dry ink is installed inside.
4 AC inlet Used for connecting the power cord set.
5 Network interface cable
connector
Connects a network interface cable.
6 Waste fluid valve Open/close when discharging the waste fluid from Waste fluid tank.
It is normally closed.
7 Media loading lever Used for fixing or releasing the media.
• Lower Lever to fix the media.
• Lower Lever further to fix the media firmly.
Used to improve the accuracy of media feeding.
• Raise Lever to release the media.
1
6
7
3 2
2
4 5
