Product overview VJ-2638/1638X/1938WX/1638WX OPERATION MANUAL
32 2.2 Names of parts and functions

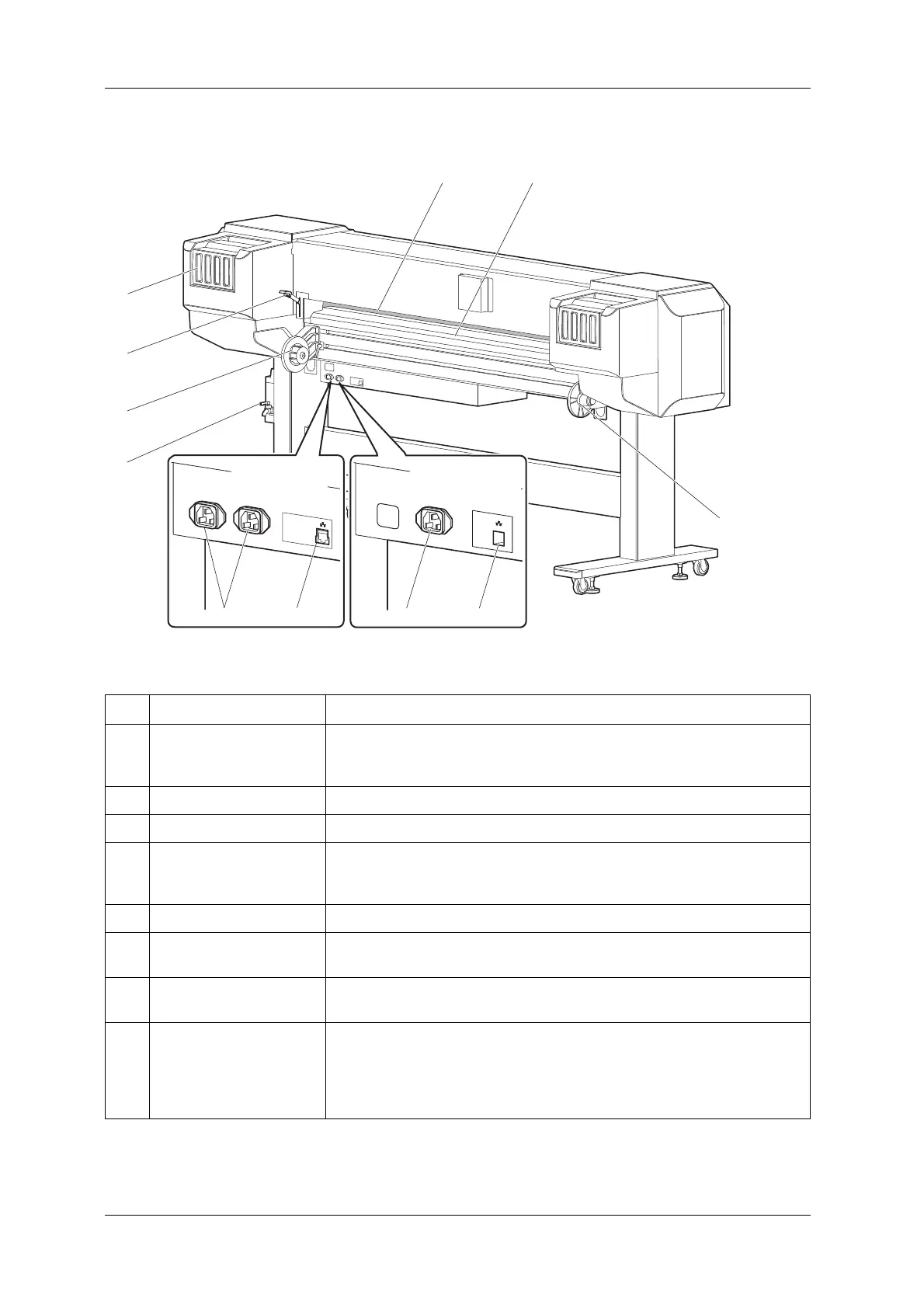

(2) Rear section(VJ-1638X/1938WX/1638WX)
No. Name Function
1 Roll media holder Load the roll media.
Equipped with Flanges to attach the roll media and Fixing levers to fix Roll media
holders.
2 Media feed slot Used for feeding media.
3 Ink cartridge slot Insert Ink cartridges.
4 Media guide Used to feed the media smoothly when loading or printing on the media.
• Heater (Pre-heater) to dry ink is installed inside VJ-1638X.
• VJ-1938WX/1638WX is not equipped with Heaters.
5 AC inlet Used for connecting the power cord set.
6 Network interface cable
connector
Connects a network interface cable.
7 Waste fluid valve Open/close when discharging the waste fluid from Waste fluid tank.
It is normally closed.
8 Media loading lever Used for fixing or releasing the media.
• Lower Lever to fix the media.
• Lower Lever further to fix the media firmly.
Used to improve the accuracy of media feeding.
• Raise Lever to release the media.
2
7
1
1
VJ-1638X
5 6
4
3
2
7
1
8
1
VJ-1638X
5 6
4
3
VJ-1638WX
VJ-1938WX
6
5
To Next Page
