VJ-2638/1638X/1938WX/1638WX OPERATION MANUAL Product overview
2.2 Names of parts and functions 33
2.2.3 Operation panel

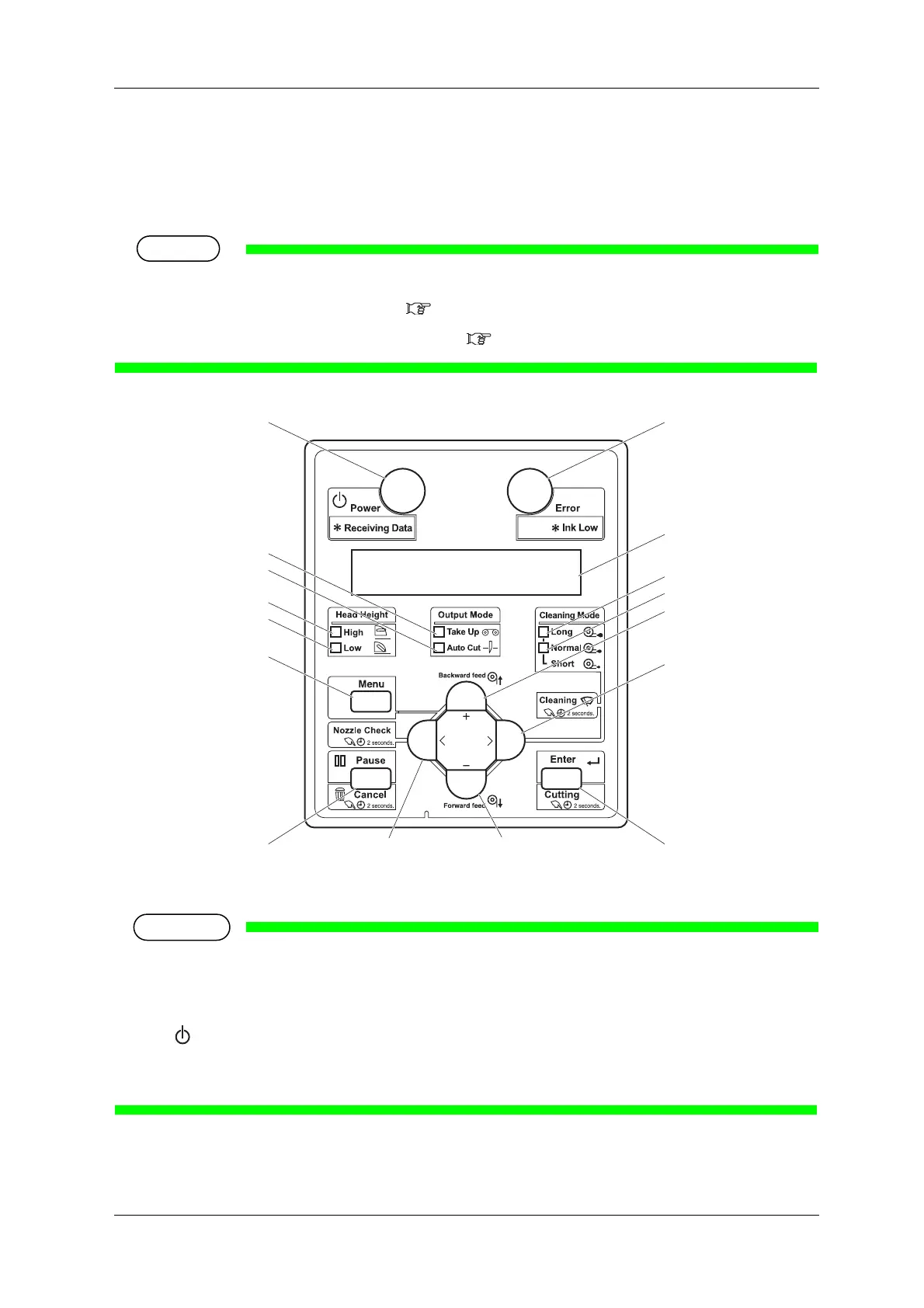

Used to set the operating conditions, to display the status of the printer, and to set various functions.
Explains names of each operation key and status display along with the functions.
Refer to the following for details regarding the operation method of Operation panel.
•When setting the menu from Operation panel:
4.3 Menu setups on Operation panel
•When performing various operations in Operation panel: 4.4 Operating from Operation panel
(1) Operation keys
• Operation keys are assigned with different functions and names depending on the printer status
(Normal or Setup menu display).
For details about the printer status, refer to
2.3 Printer status outline.
• The symbol means “standby”. Even when the power button is not turned on, the printer
consumes a tiny amount of power so long as the power cable is connected. This state is referred to
as the power being “off” in this Manual.
