NAiS FP Series User Manual

FPΣ
High-speed Counter and Pulse Output Functions
6-50
Home return operation (minus direction)
WhenXAturns on, thepulseisoutput from CCWoutput “Y1” ofspecifiedchannel“CH0”
and the return to home begins. When X3 turns on, deceleration begins, and when X2
turns on, home return is completed. After the return to home is completed, the elapsed
value area “DT90044 and DT90045” are cleared to 0.
Y1
Y0
0 V (24 V DC)
XA
X2
X3
X2
X3
Pulse output CW
Pulse output CCW
Motor driver
(- side)
Motor
(+ side)
Home return
start
Home input
Home proximity input
Proximity sensorHome sensor

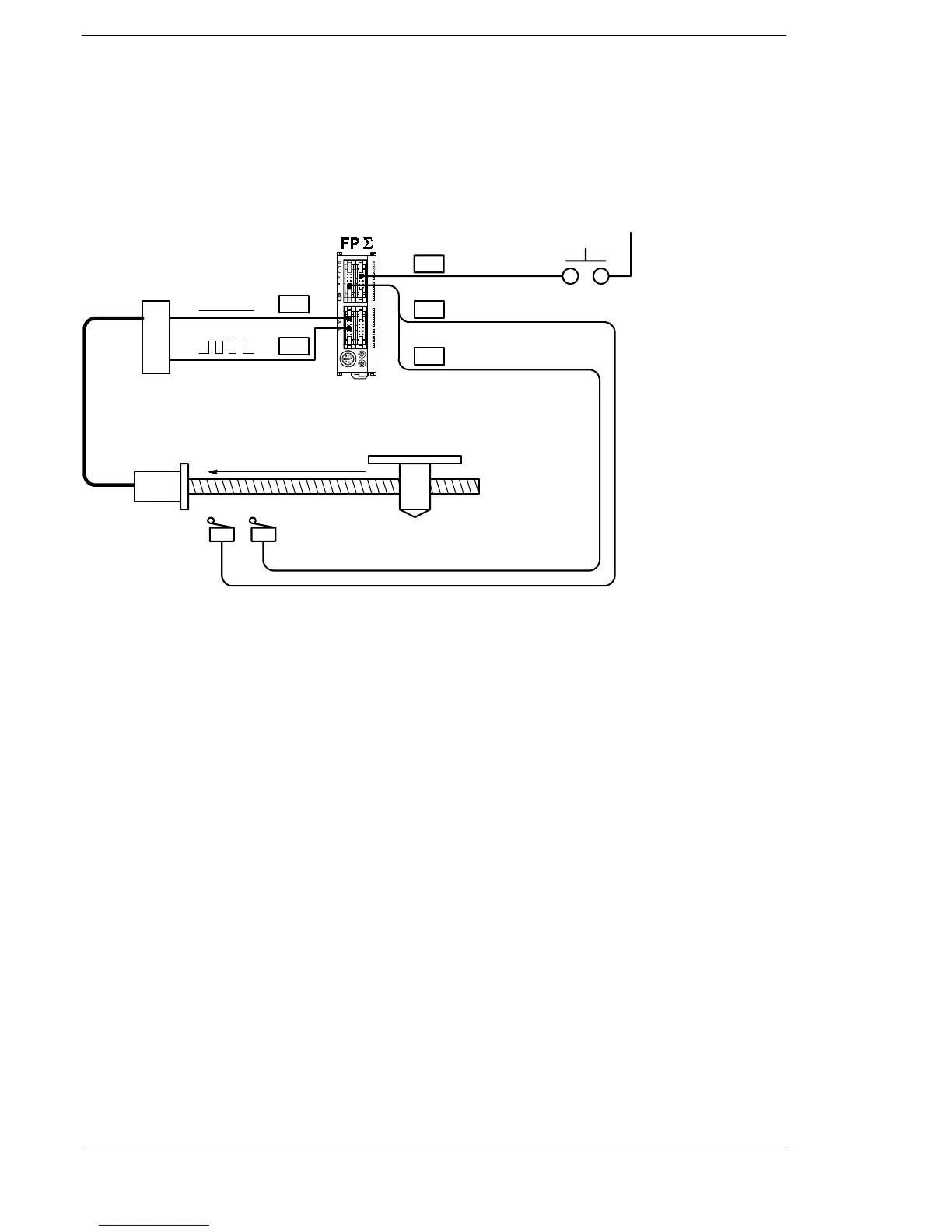

Figure 115: FPΣ Sample program - home return operation (– direction)
