W415-2036 / D / 08.05.21

maintenance

important:

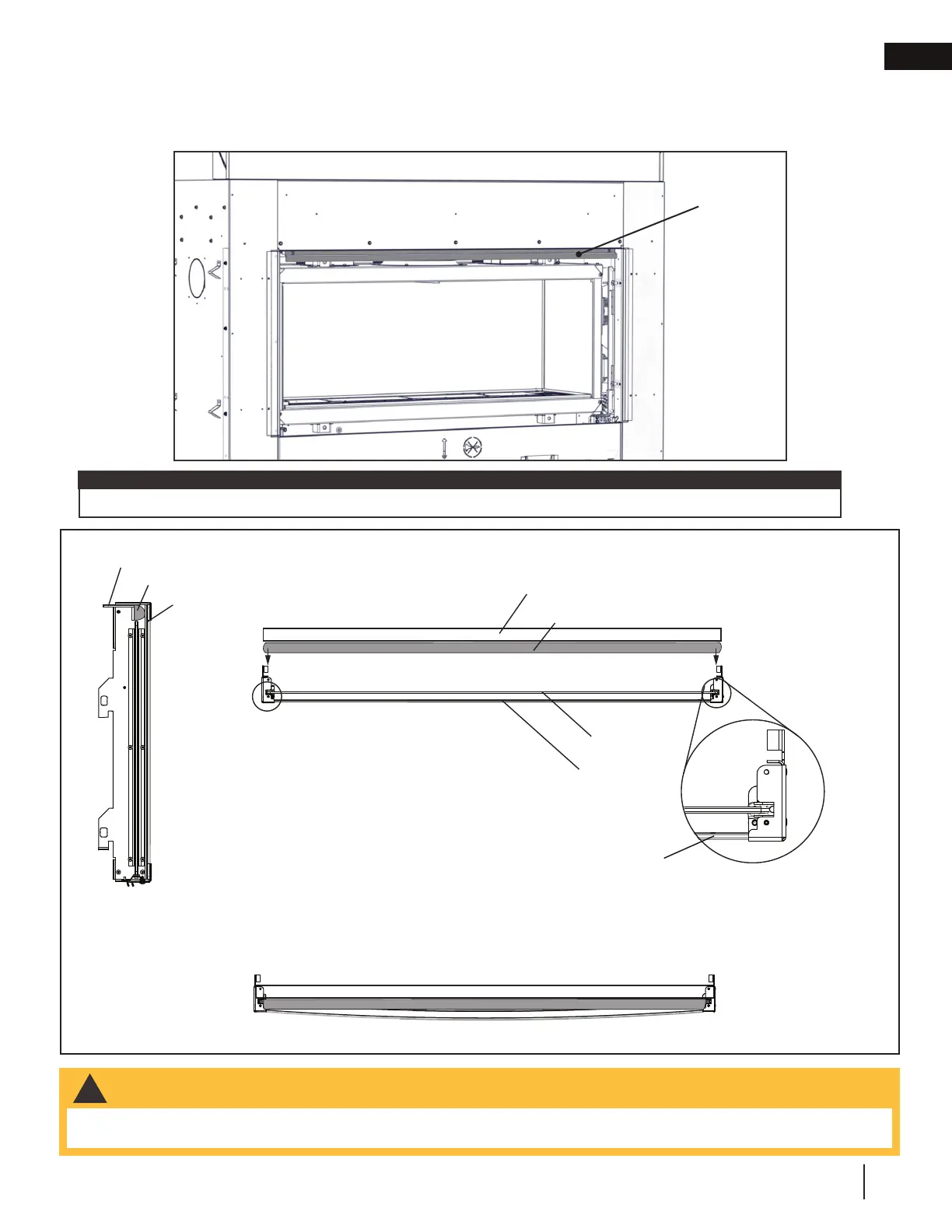

Ensure that the heat rail gasket is touching the both ends of the back of the outer glass as shown.

Heat Rail

SIDE VIEW

Gasket

Outer Glass

The gasket MUST touch the back of

the outer glass at both ends.

For longer appliances, the glass pieces may look slightly bowed (illustration not to scale) when the glass and

appliance are cold. This is normal and not a cause for concern. The glass will straighten and become ﬂush

to the heat rail gasket as it becomes warm when the appliance is operating.

It is REQUIRED to have the gasket touching both ends of the outer glass.

Intermediate Glass

Fig. 15

WARNING

• Normally there is no need to adjust the position of the heat rail. Contact your authorized Napoleon dealer before

attempting any adjustment of the heat rail.

Fig. 14

Heat rail

with gasket

11. Slide the GGA-1 into the appliance until outer glass panel makes contact with heat rail gasket. The glass

surface should contact the heat rail at each end (Fig. 15). The GGA-1 must ‘click’ into latches when

secure. The GGA-1 must be retained by the latches and not open, if pulled. If GGA-1 does not smoothly

engage with latches, an adjustment may be required, see step 13.
