maintenance
Latch too high -
won’t disengage
Latch too low -
won’t engage
Fig. 16
Fig. 17 Fig. 18 Fig. 19
Move forward
Move forward
If facing material is not installed plumb and square,
it may be necessary to make final horizontal GGA-1
adjustments after finishing.
note:

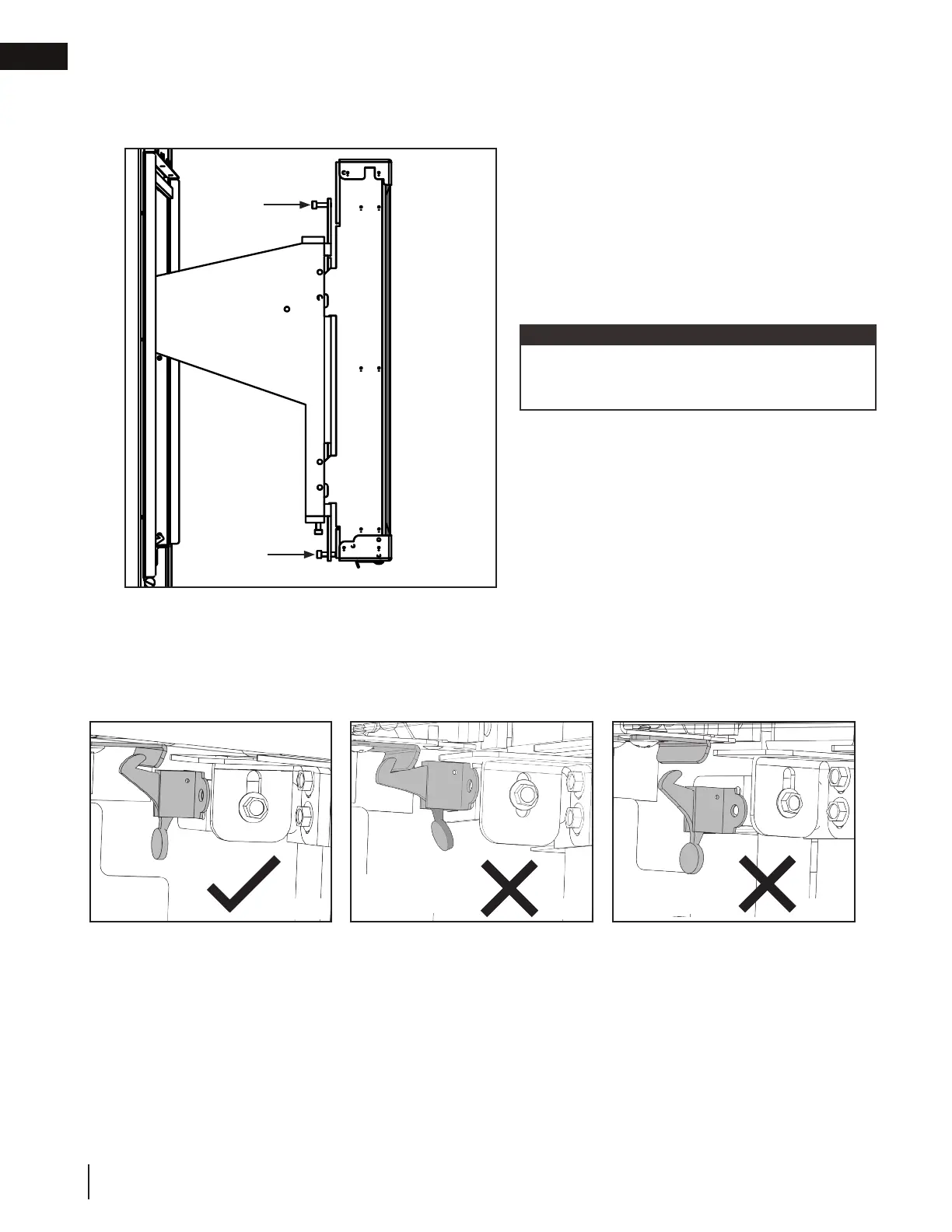

12. Check if the GGA-1 plane is straight. Adjust with horizontal adjustment screws on both ends, if necessary
(Fig. 16).
13. Check if the latches are correctly positioned (Fig. 17). Adjust latches, if necessary. Retighten the screws
securely but do not overtighten.
