Describing AUI Tool Menu Options
Click on the desired tool menu panel to display it. See Table 2.3 on page 2-31 for a description of
each tool menu panel.

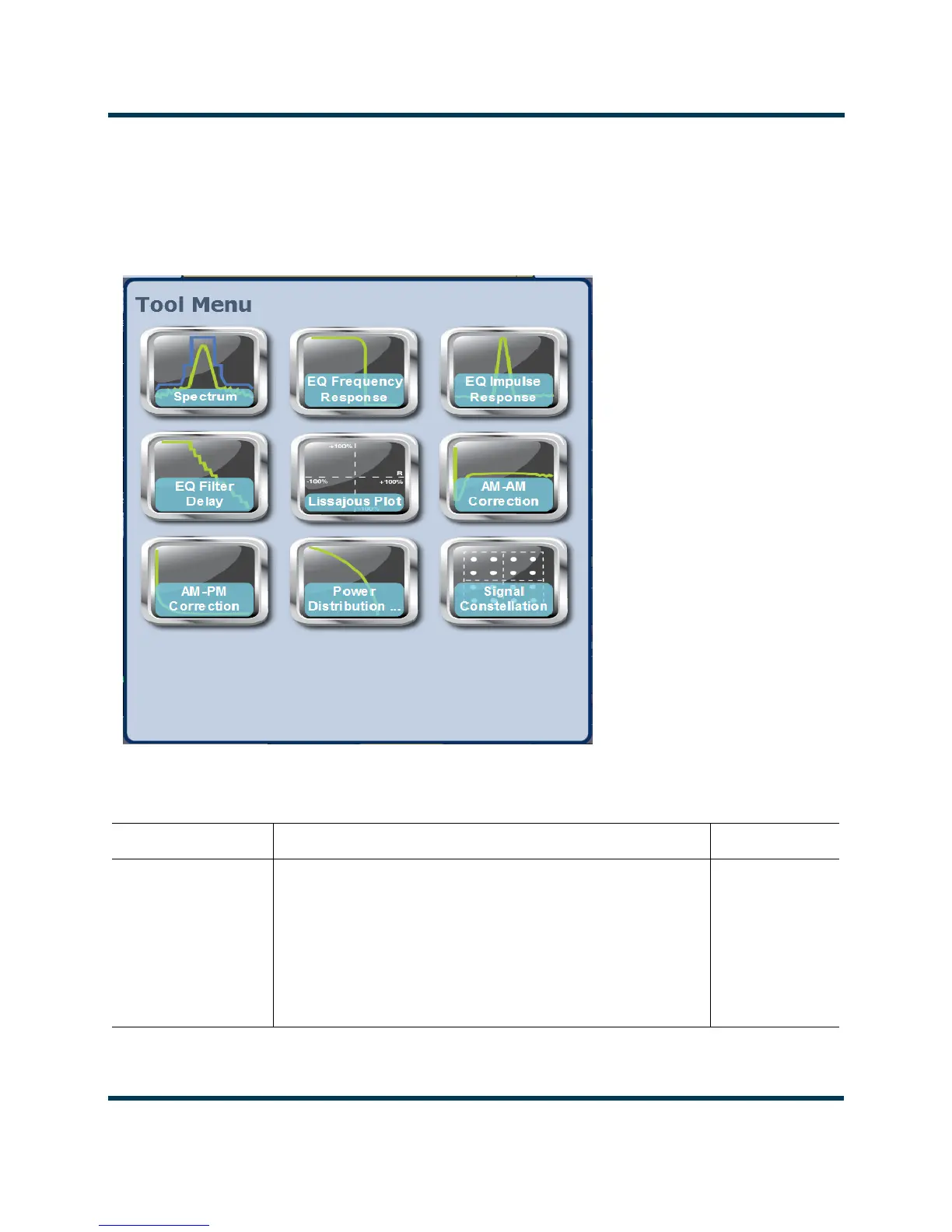

Figure 2.18: Tool Menu Options
Table 2.3: Tool Menu Panels
Tool Menu Description Reference
Spectrum Displays a spectrum analyzer, capable of monitoring various
RF sections of the transmitter, including the RF output.
See page 2-35
EQ Frequency
Response
Displays the frequency response of the modulator’s EQ filter. See page 2-37
EQ Impulse
Response
Displays the impulse response of the modulator’s EQ filter. See page 2-38
The AM-AM Correction,
AM-PM Correction and
Power Distribution tool
menu icons appear only
when the transmitter is op-
erating with a VSHD exciter.
