Start-up and Initial Preparation

22 EasyOne Pro™ / EasyOne Pro™ LAB

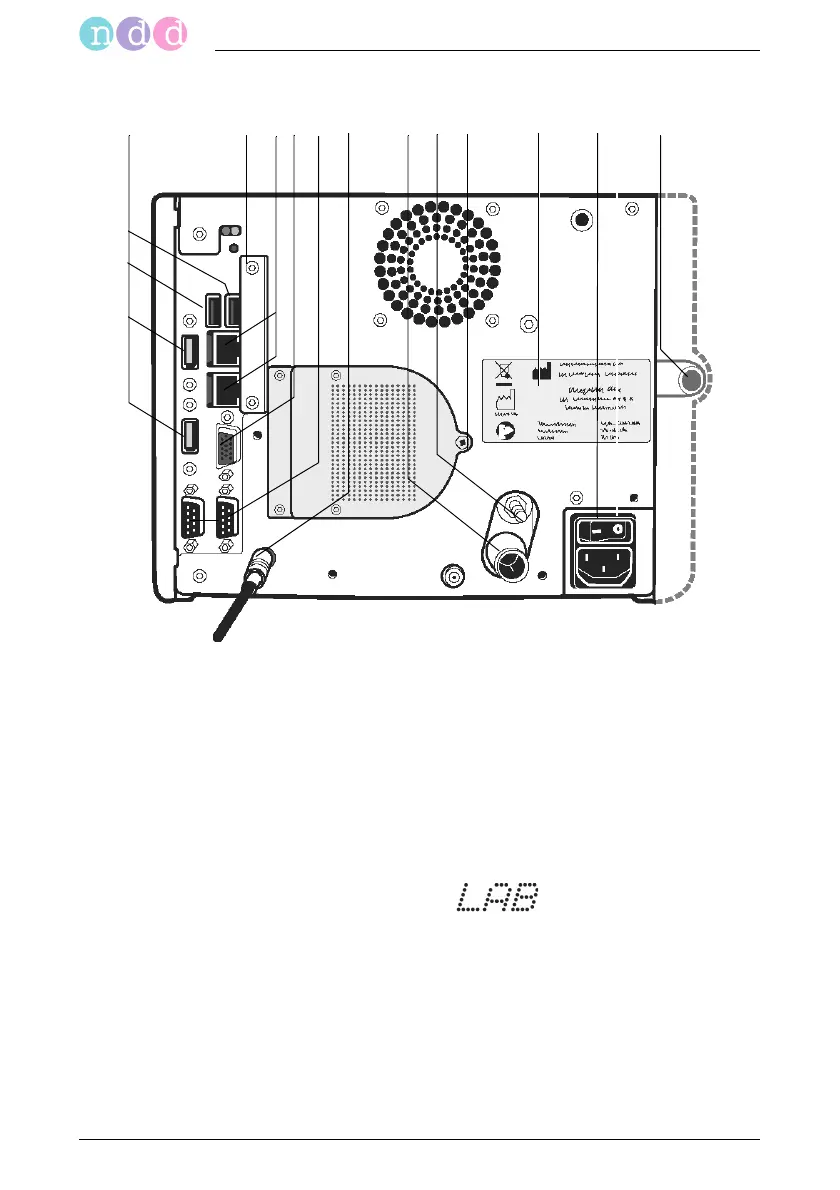

Fig. 2-2 EasyOne Pro™, rear panel

gqlhi mn pj k o r

g USB ports (keyboard, mouse, printer)

h Memory card slot cover (Flash card,

see "Data Backup on Memory Card" on

page 102)

i LAN ports (printer)

j Monitor

k Serial RS232 ports

l Connection for temperature and

humidity sensor

m Connection for tube from DLCO gas cyl-

inder

n Potential equalization pin

o Screw to secure the filter pack (must be

removed before the filter can be

replaced)

pNameplate

q Mains connector, mains power switch

r Connection for O

gas supply system

(EasyOne Pro™ LAB only)
