1. Before Setting Up Your Projector
1-1. Clearance for Installing the Projector (English)
Allow ample clearance between the projector and its surroundings as shown below.
Avoid installing the projector in a place where air movement from the HVAC is directed at the projector.
Heated air from the HVAC can be taken in by the projector’s intake vent. If this happens, the temperature inside the projector
will rise too high causing the over-temperature protector to automatically turn off the projectors power.

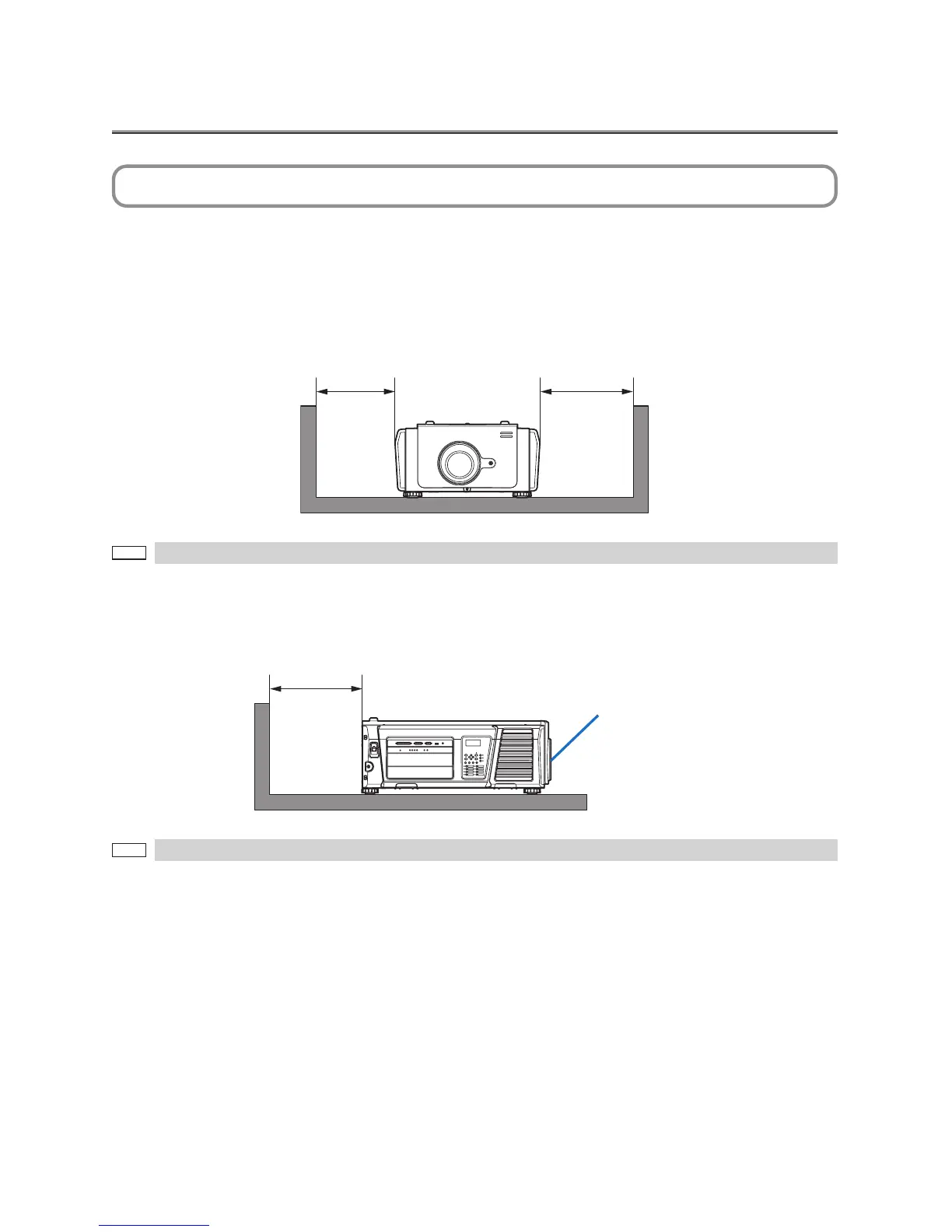

Example 1 – If there are walls on both sides of the projector.
30cm/12"
or greater
50cm/19.7"
or greater
NOTE
The drawing shows the proper clearance required for the front, back and top of the projector.
Example 2 – If there is a wall behind the projector.
(1) For floor installation:
70cm/27.6"
or greater
Lens
NOTE
The drawing shows the proper clearance required for the back, sides and top of the projector.
To Next Page
