Projector Adjustment and Connecting
3-6-2. Adjusting the Screen Ratio
Preparation: Display the zoom/focus adjustment screen by using the following procedure.
[1] Press the MENU button on the projector’s control panel.
“Title Select” appears on the projector’s LC display.
[2] Select “Configuration” menu using LEFT the LEFT/RIGHT button.
[3] Press the DOWN button.
[4] Select “Lens Control” using the LEFT/RIGHT button.
[5] Press the DOWN button.
[6] Press the ENTER button.
“Focus Zoom” is displayed and you can adjust the focus/zoom.

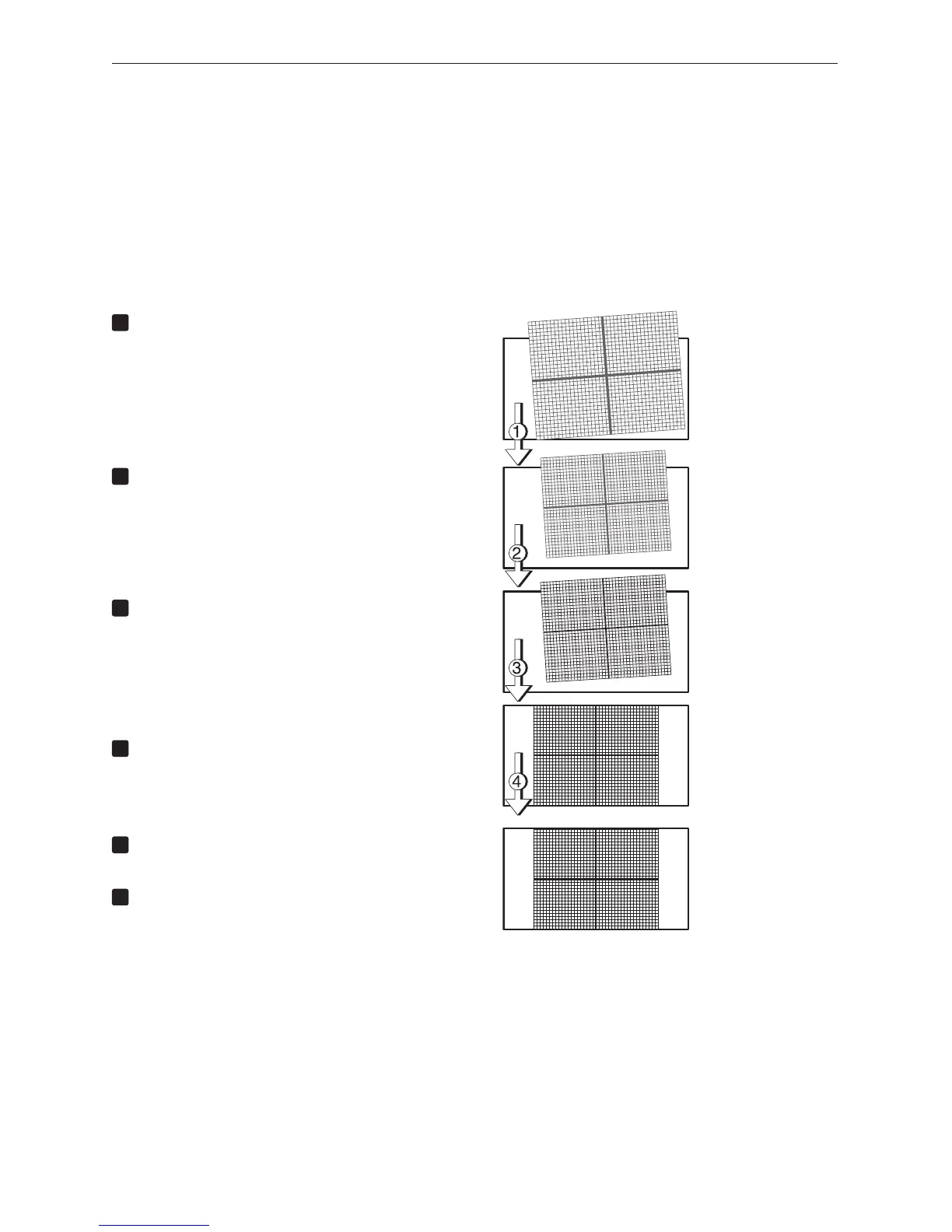

Press the LEFT/RIGHT buttons to roughly
adjust the screen size so that the screen
height and the image height are the same.
Press the UP/DOWN buttons to roughly
adjust the focus.
Adjust the surface on which the projector is
set up and the level adjuster of the projector
to adjust the setup position, height, and tile
(front-back and left right) of the projector so
that the projected image is level at the screen
center.
Use the LEFT/RIGHT buttons again to adjust
the screen size so that the projected image is
kept 0.5 to 1 crosshatch cell portions higher
than the top edge of the screen.
Finally adjust the focus using the UP/DOWN
buttons.
Press the EXIT button several times.
The projector exits the menu and goes back to the regu-
lar screen.
