Projector Adjustment and Connecting
3-9. Connecting the Various Control Terminal
For control, your projector comes with such ports as the PC control terminal and the Ethernet port (RJ-45).

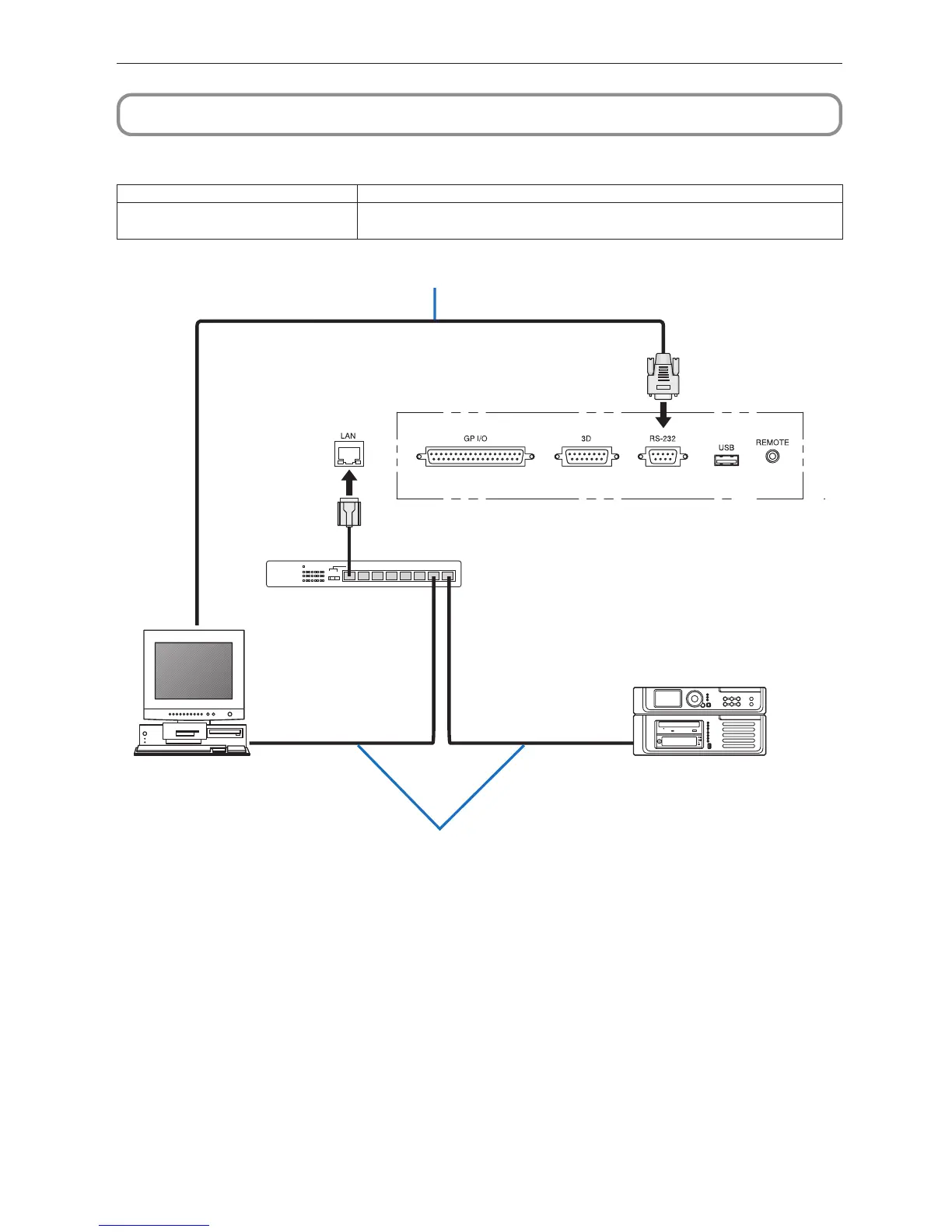

PC control terminal (RS-232) Use this terminal when controlling the projector in serial connection from a PC.
Ethernet port (LAN) Use this port when controlling the projector in LAN connection from a PC or a cinema
server.
RS-232C
PC
Cinema server
LAN cable
Network hub/Router
This completes the adjustment and connection of the projector. Next, set up the projector from the DCC for S2. Refer to the
“Digital Cinema Communicator for S2 Installation Manual” for the procedure.
