Adding and Removing Components 3-15

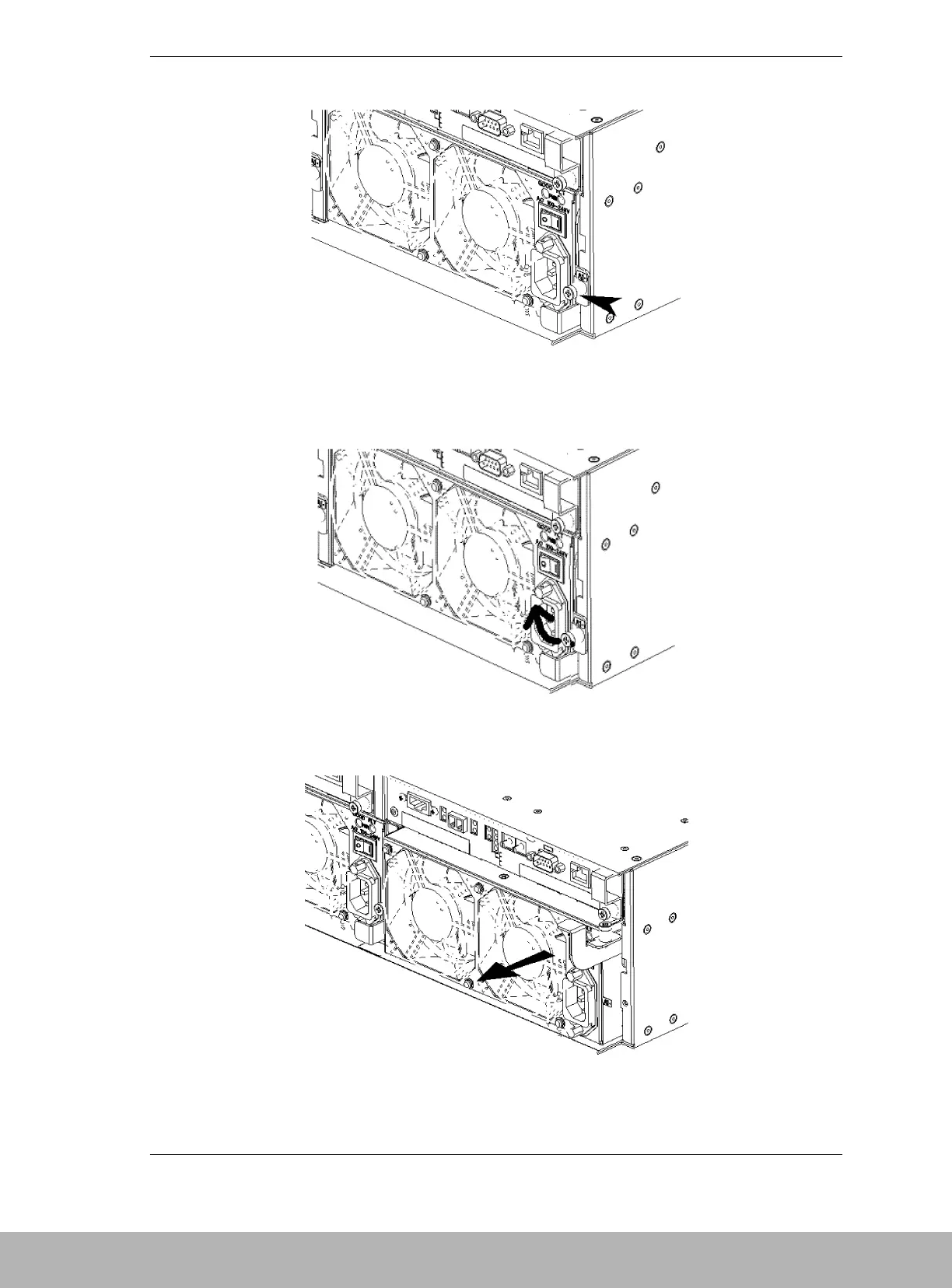

4. Loosen the ejector set screw of the faulty power supply. See Figure 3-18.
Figure 3-18. Loosening the Power Supply Ejector Set Screw
5. Put your finger on the protrusion of the ejector, and pull the ejector towards
you. See Figure 3-19.
Figure 3-19. Releasing the Power Supply Ejector.
6. Once the ejector is released, remove the power supply. See Figure 3-20.
Figure 3-20 Removing the Power Supply.
