Chapter 7 Disk Array Configuration Setting
IV-73

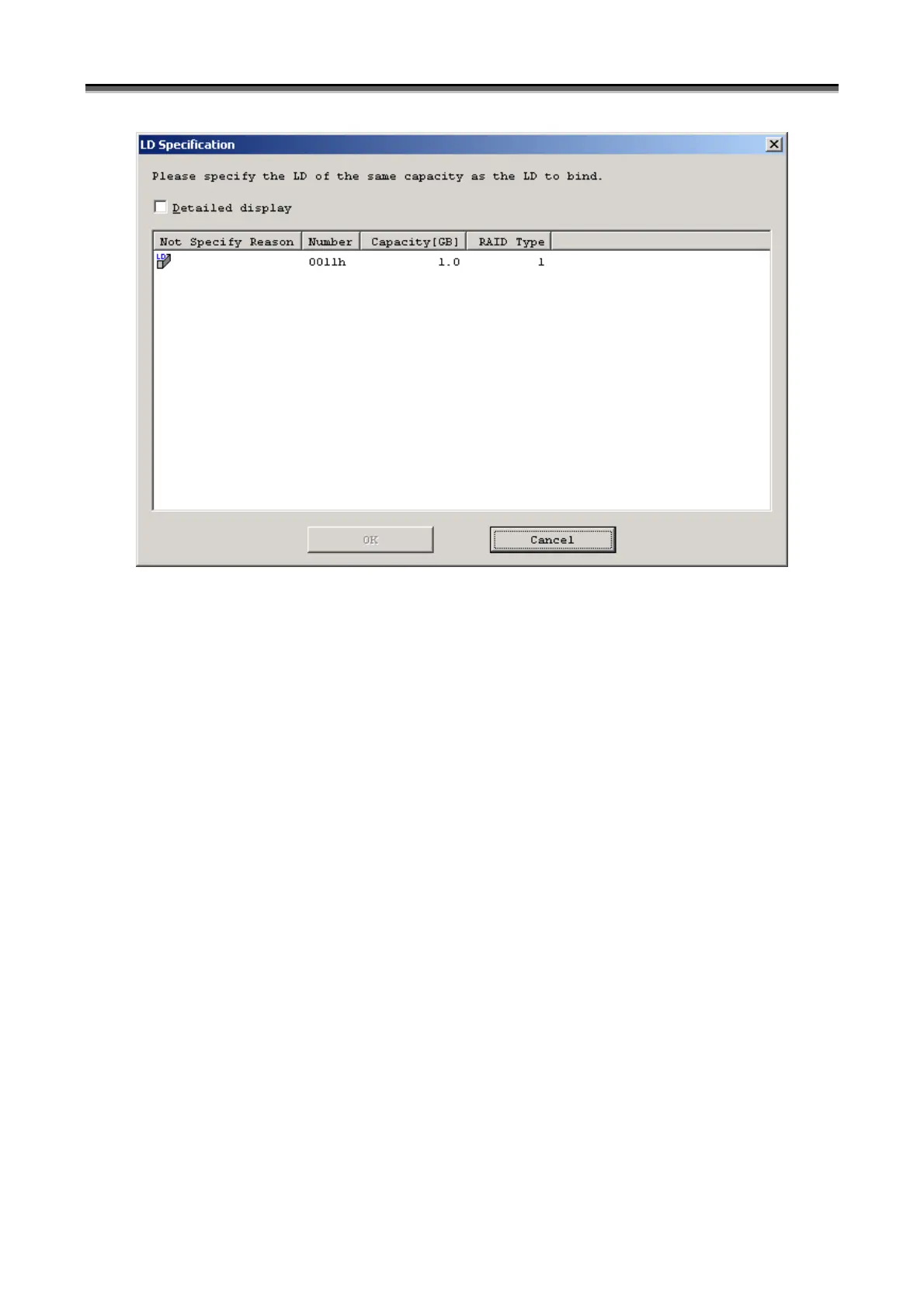

Figure 7-64 Screen for Specifying a Logical Disk
By selecting a logical disk from the list, you can bind the logical disks setting their capacities same with it. For
an unselectable logical disk, either of the following reasons is indicated in the “Not Specify Reason” column:
• Excess of capacity:
The capacity of the logical disk is exceeding the unused space of the pool.
• Capacity unit disagreement:
It is not possible to bind logical disks setting the same capacity with that of this logical disk. For detailed
reasons for mismatching capacity units and details on binding logical disks with a RAID configuration
different from those in use, refer to Appendix D “Notes on Use for Data Replication”.
[OK] button: Applies the parameter you specified on this screen, and displays back the screen on which
you specified the capacity of the logical disks or the number of logical disks and their
capacity.
[Cancel] button: Displays back the screen on which you specified the capacity of the logical disks or the
number of logical disks and their capacity. All parameters you specified on this screen
are canceled.
