(B) Parameters for the logical disks
LD Capacity: Capacity of each of the logical disks to bind
Number of LDs: Number of logical disks to bind
Number of all logical disks to bind
Total LD Capacity: Total amount of all logical disks to bind
“LD Capacity” × “Number of LDs” = “Total LD Capacity”
OS Type: Format of the logical disks to bind
LD Name(Prefix): Name of the logical disks to bind
LD Start Number: Initial number of the logical disks to bind
(C) Parameters for the physical disks
Number of Spares: Number of spares to bind (in total)
Number of Unused: Number of disks unused to bind the pool(s)
When you use the batch bind wizard, some physical disks remain unused depending
on the parameters specified in “Number of Pools”, “Number of PDs”, and “Number of
Spares”.
[Next] button: Displays a message asking you to proceed.
[Back] button: Displays back the “Setting Detail Parameter for LD Binding” screen.
[Cancel] button: Displays a confirmation to ask whether you want to quit the wizard, then the wizard
closes if agreed.

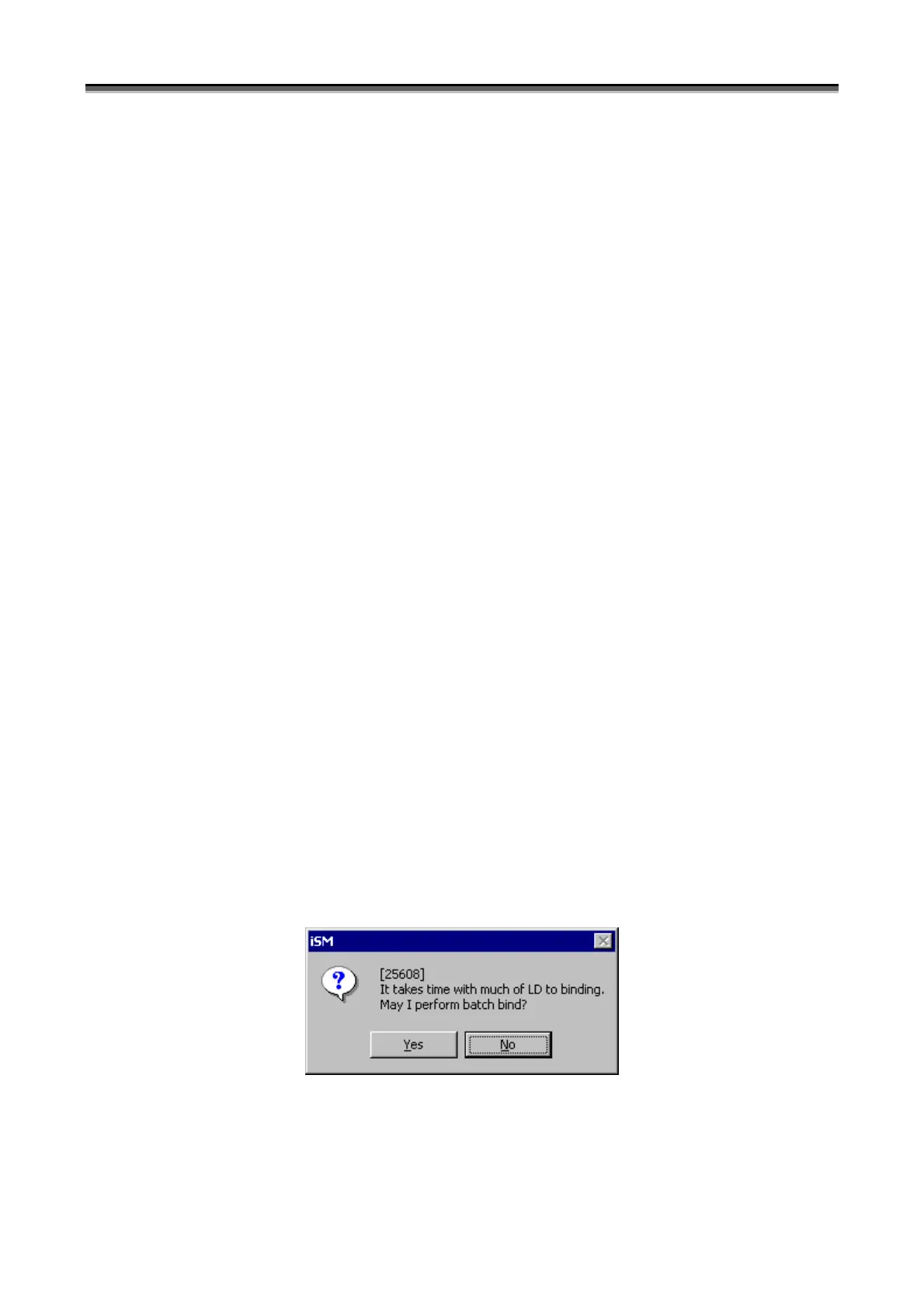

Figure 7-68 Message for Asking To Proceed
