Chapter 8 Disk Array Configuration Setting (S100/S1100/S1200/S1300/S2100/S2200/S2300)
IV-112
Reducing RANK and Spare selected
Only reducing RANK selected
Click the [Rebuild Start Instruction] button to display the following dialog.

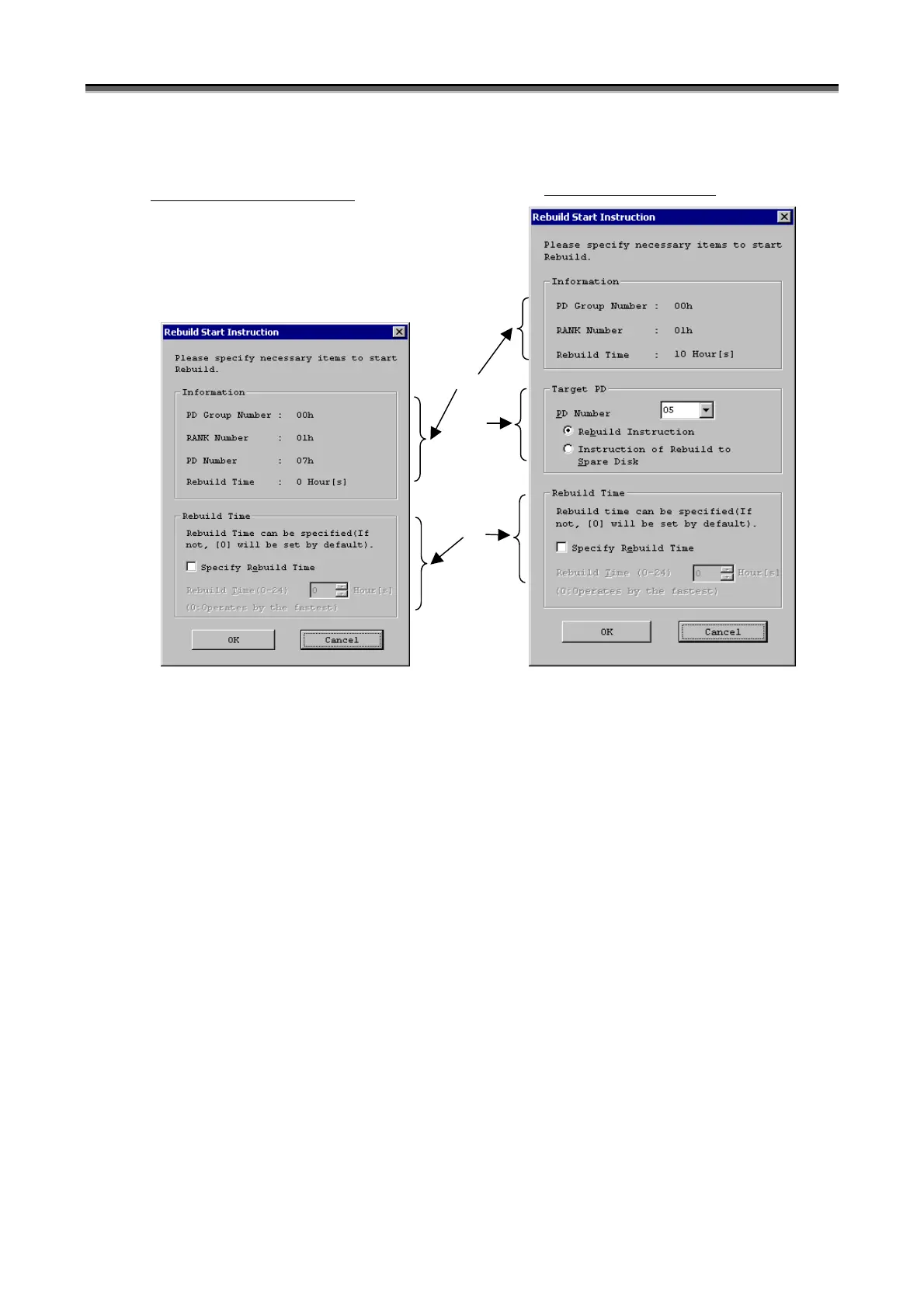

Figure 8-13 Rebuild Start Instruction Confirmation
Click the [OK] button to start rebuilding.
(a), (b), and (c) in the diagram are described.
(a) Information
The specified RANK and PD group are displayed.
When this dialog is output by selecting the spare, the spare for rebuilding is displayed.
(b) Target PD
When only reducing RANK is selected, it is necessary to specify the rebuild target disk.
* Rebuild Instruction
Target Disk Number contains the PD number configuring the RANK. Therefore, when the PD is
replaced with a normal PD, specify the PD number.
* Instruction of Rebuild to Spare Disk
For the Instruction of Rebuild to Spare Disks, the Spare disk is automatically determined by the disk array.
Therefore, specify the target disk number by entering the number of the failed physical disk.
(a)
(b)
(c)
To Next Page
