Chapter 8 Disk Array Configuration Setting (S100/S1100/S1200/S1300/S2100/S2200/S2300)
IV-148
(B) Properties

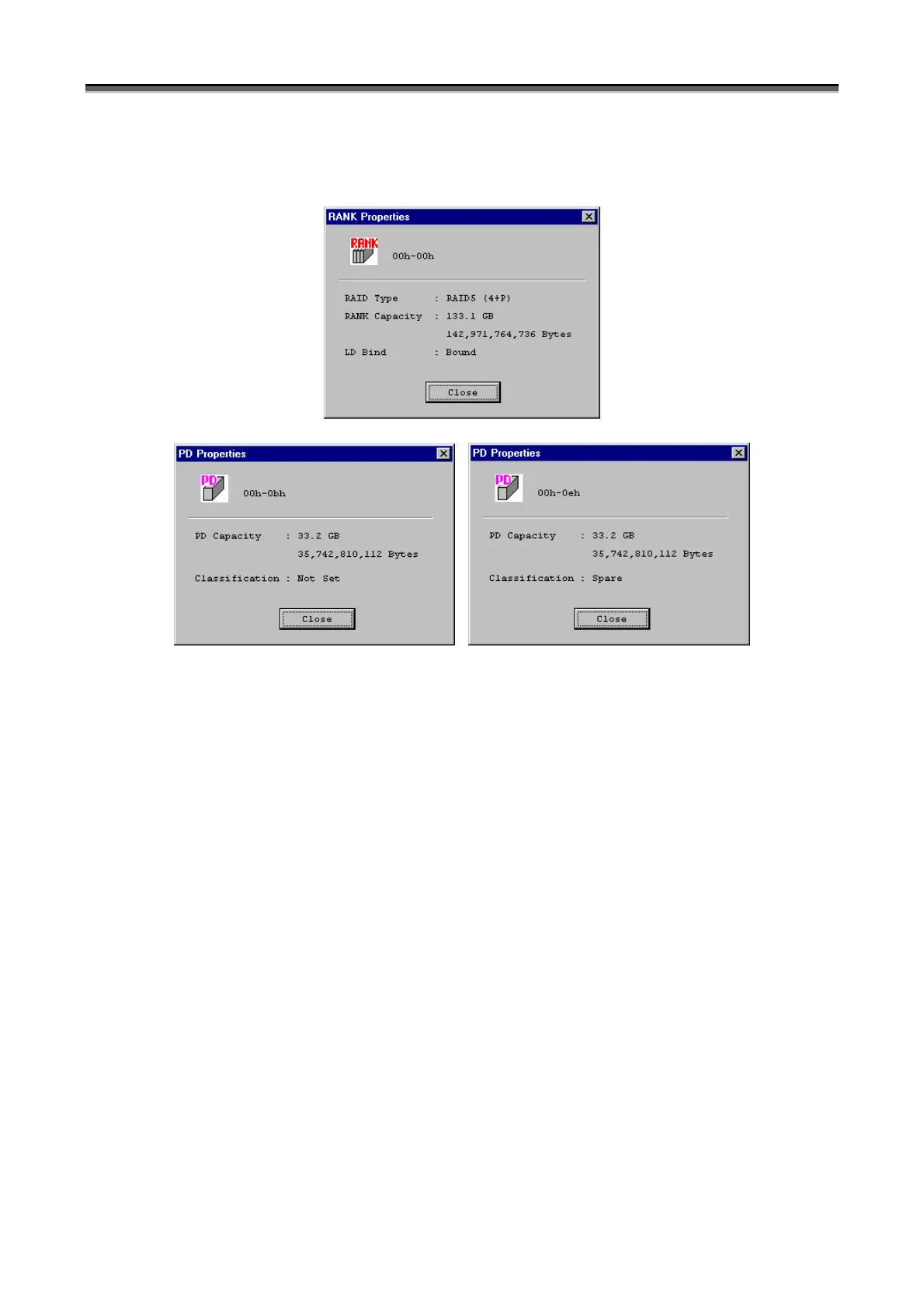

The properties of selected RANKs, unused PDs and Spares are displayed as shown below.
Figure 8-44 RANK/PD/Spare Properties
(C) [Get Disk Array Info.]
This button is used to read the current values which are set in the disk array. In the event of communication
errors or some changes in the disk array, this button can be used to update the information.
To Next Page
